Section 272 (Suspension System - Front): Description

WARNING: This page is about a different car, the 2004 Toyota 4Runner and 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

Front suspension uses a coil spring, double wish-bone configuration. See Fig 1-Fig 4 . A stabilizer bar is connected to ends of lower control arms.

Coil spring is secured to shock absorber by an integral bracket and suspension support. Shock absorber is secured to frame and lower control arm.

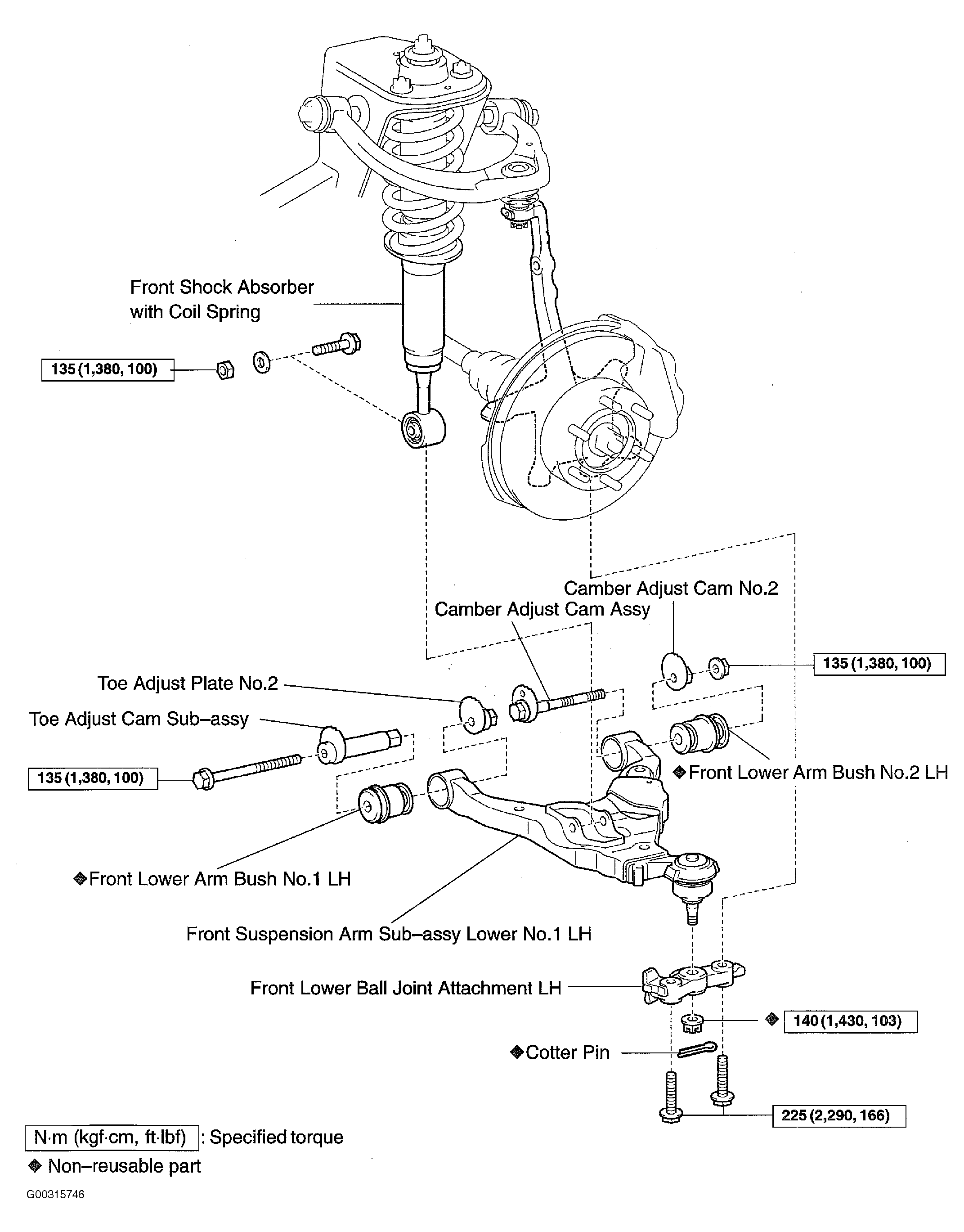

Fig 1: Front Suspension Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

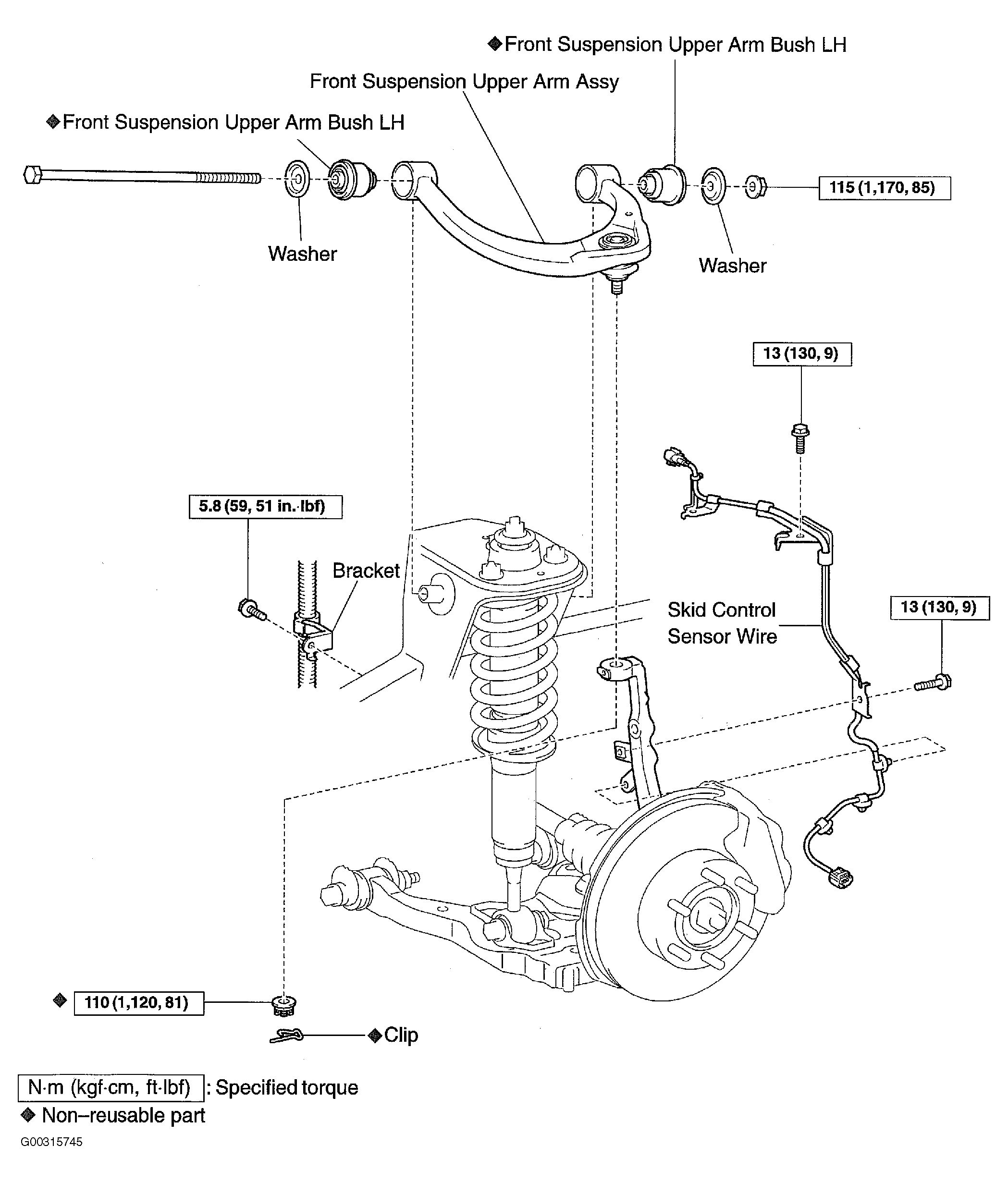

Fig 2: Front Upper Control Arm Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Front Lower Control Arm Replacement Components With Torque Specifications

Fig 4: Front Stabilizer Bar Replacement Components With Torque Specifications
