Diagnosis Circuit

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosis circuit testing procedure, see Fig 1 and Fig 2 .

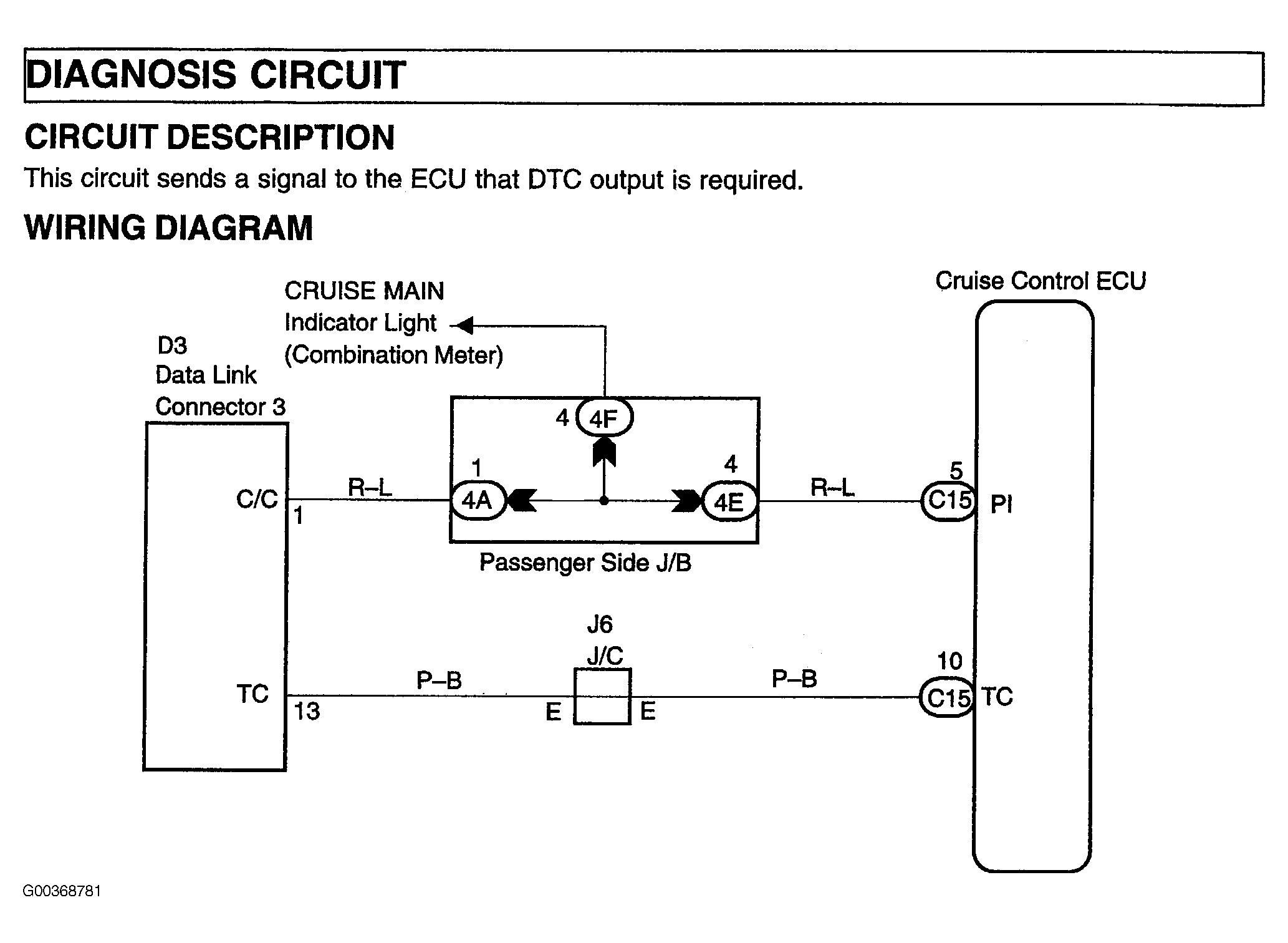

Fig 1: Testing Diagnosis Circuit (1 Of 2)
