Cruise Control Main Switch: Replacement
WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
- DISCONNECT BATTERY NEGATIVE TERMINAL .
- Remove steering wheel cover lower NO. 2.
- Remove steering wheel cover lower NO. 3.
- REMOVE HORN BUTTON ASSY .
- Remove cruise control main switch:

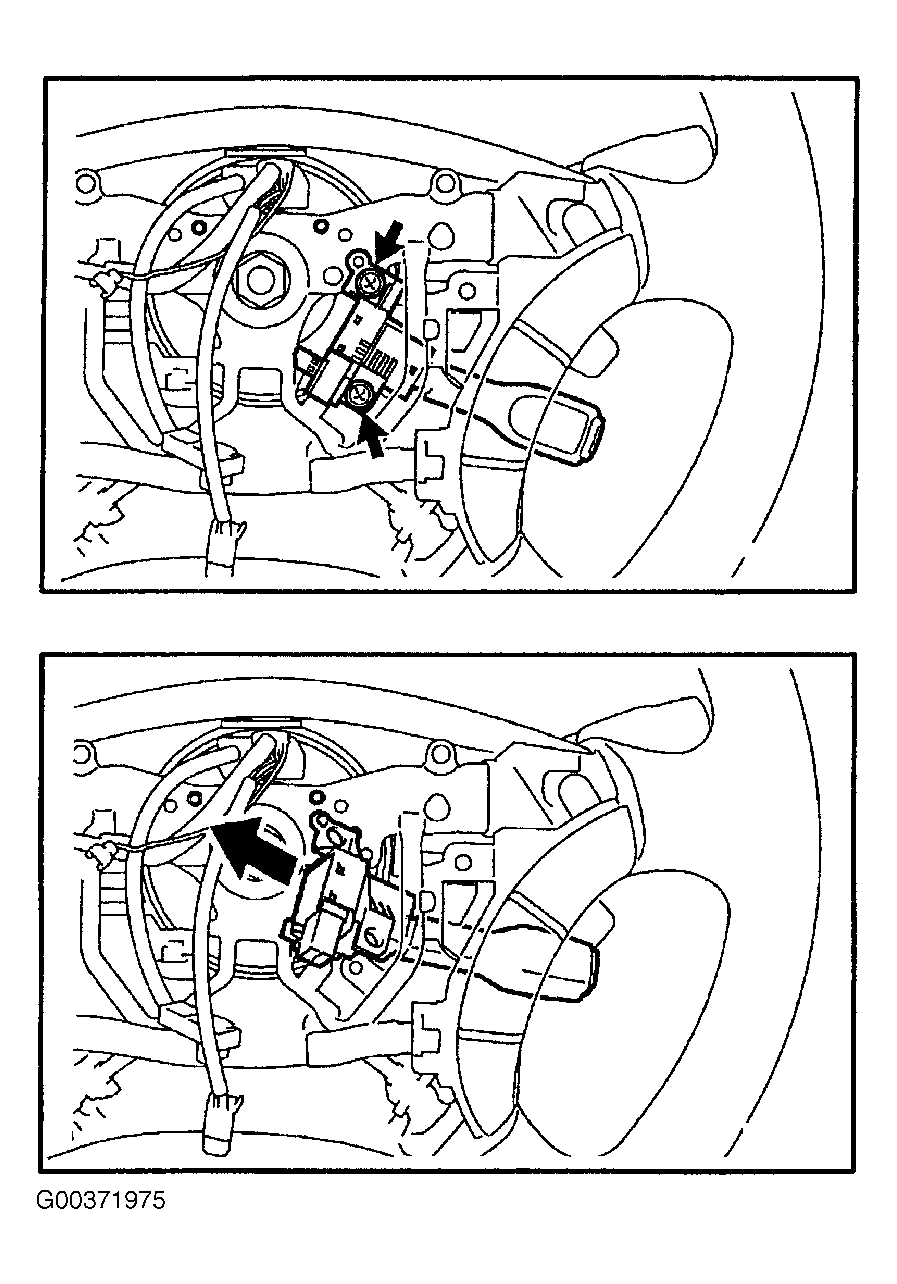

- Disconnect the connectors. See Fig 1.
- Remove the 2 screws and cruise control main switch.
- INSTALL HORN BUTTON ASSY .
- INSPECT HORN BUTTON ASSY .
- INSPECT SRS WARNING LIGHT .
