Diagnosis Circuit
WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

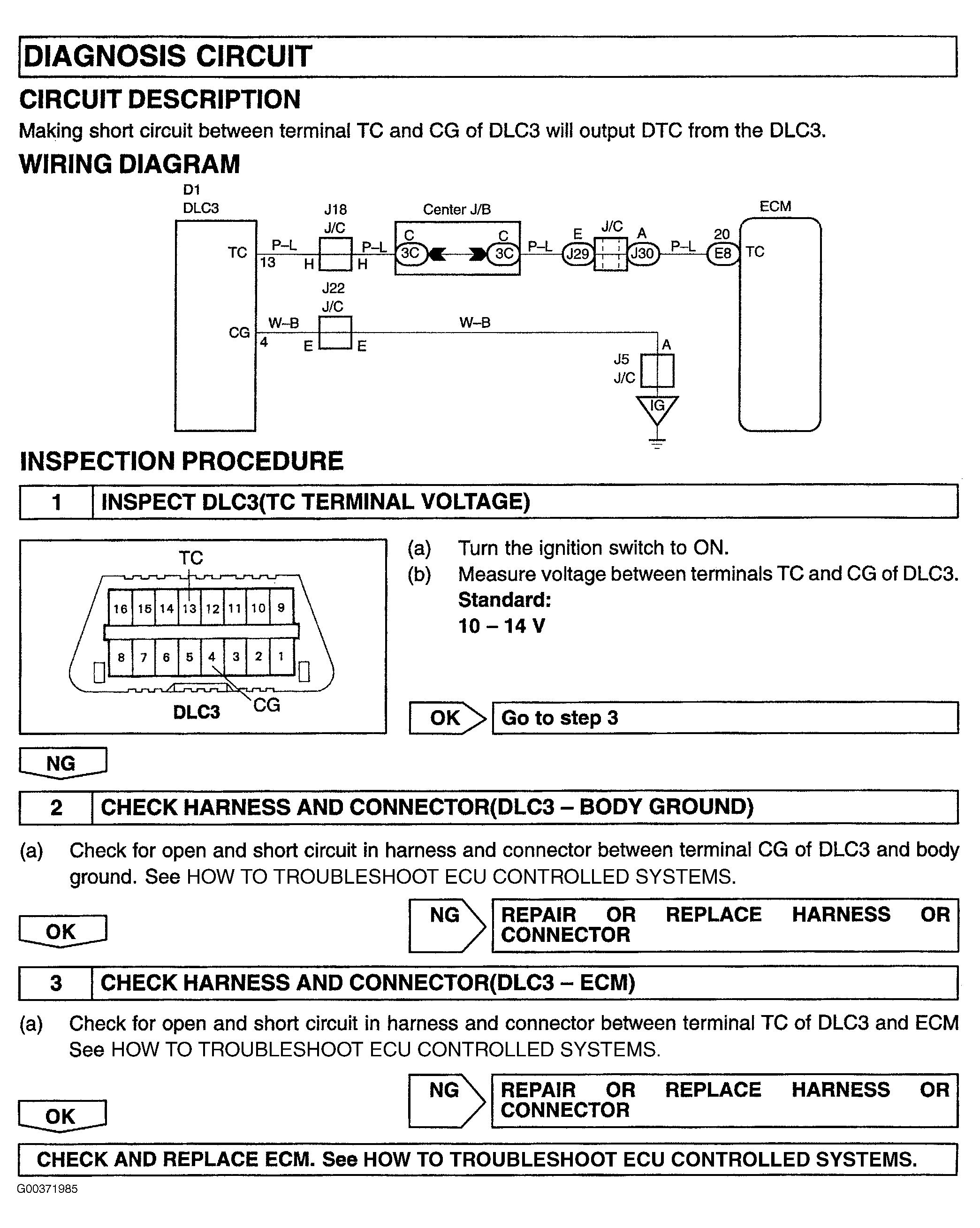

For diagnosis circuit testing procedure, see Fig 1.
For diagnosis circuit testing procedure, see Fig 1.
