Integration Control And Panel

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

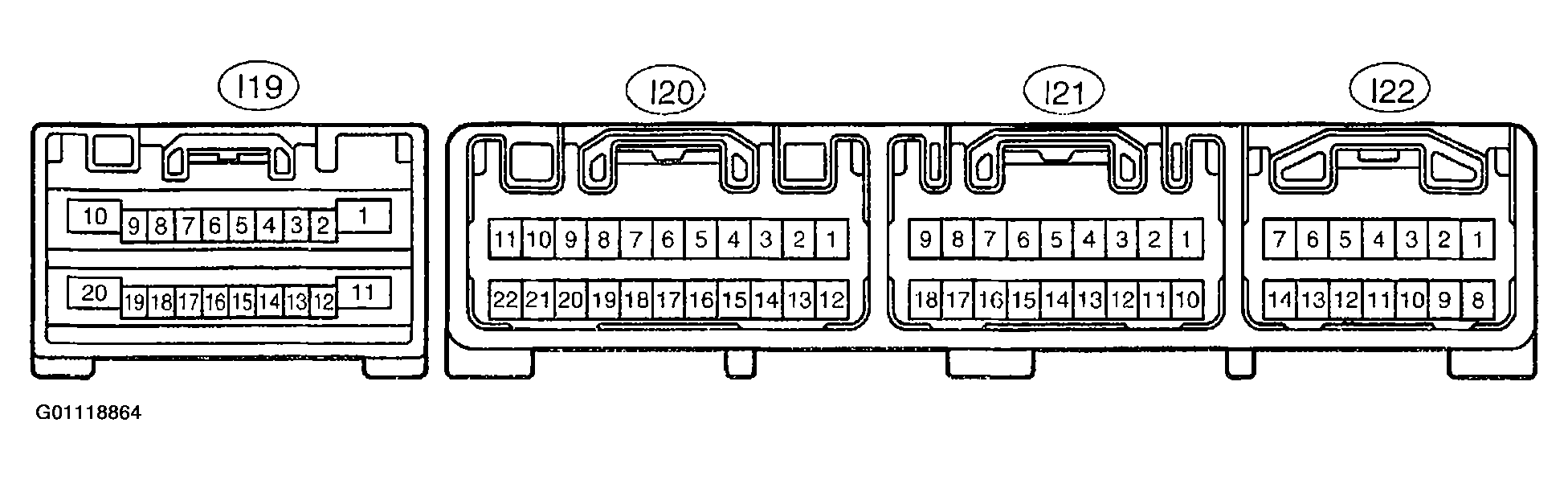

Fig 1: Locating Integration Control And Panel ECU Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

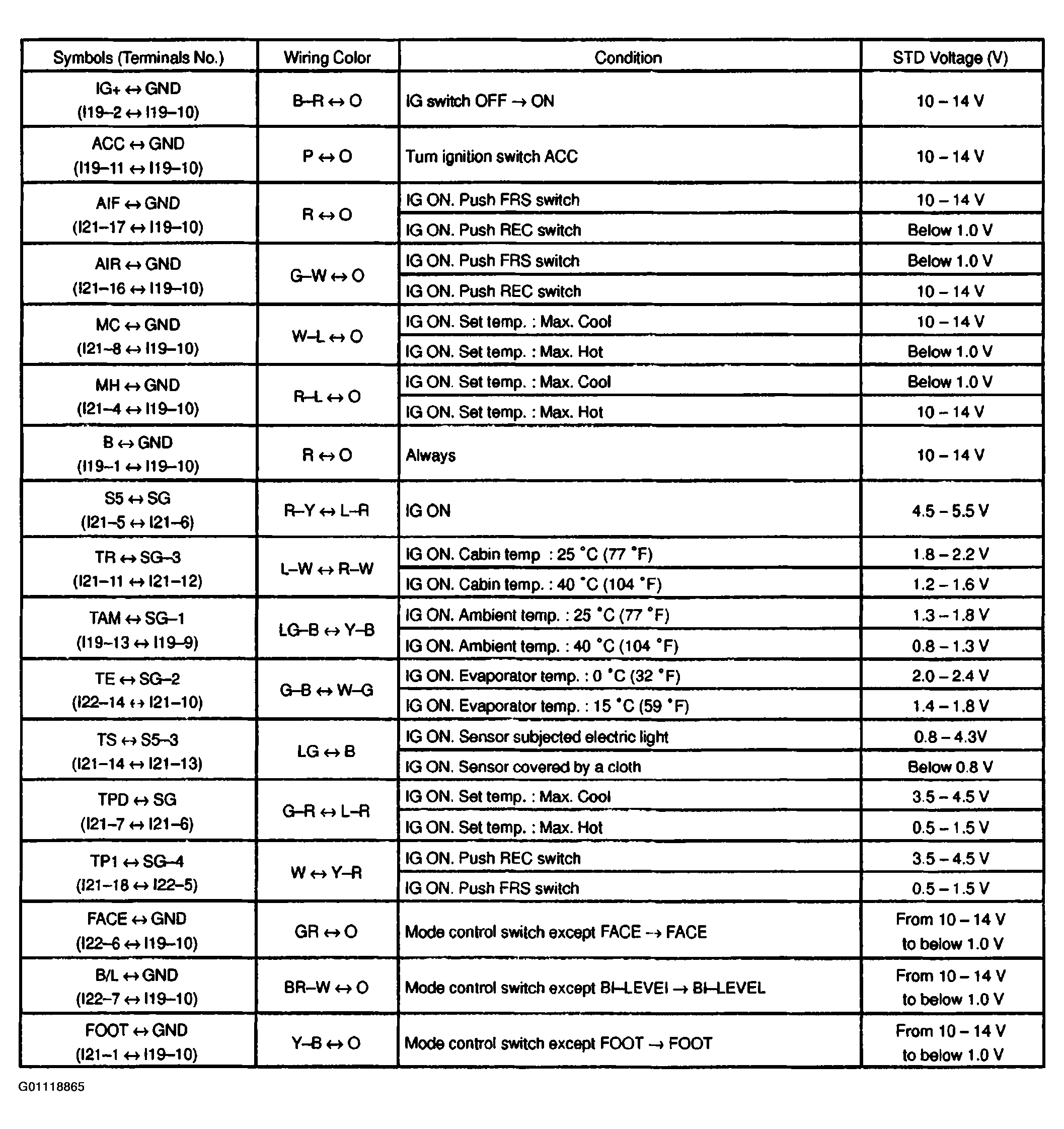

Fig 2: Locating Integration Control And Panel Terminal Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

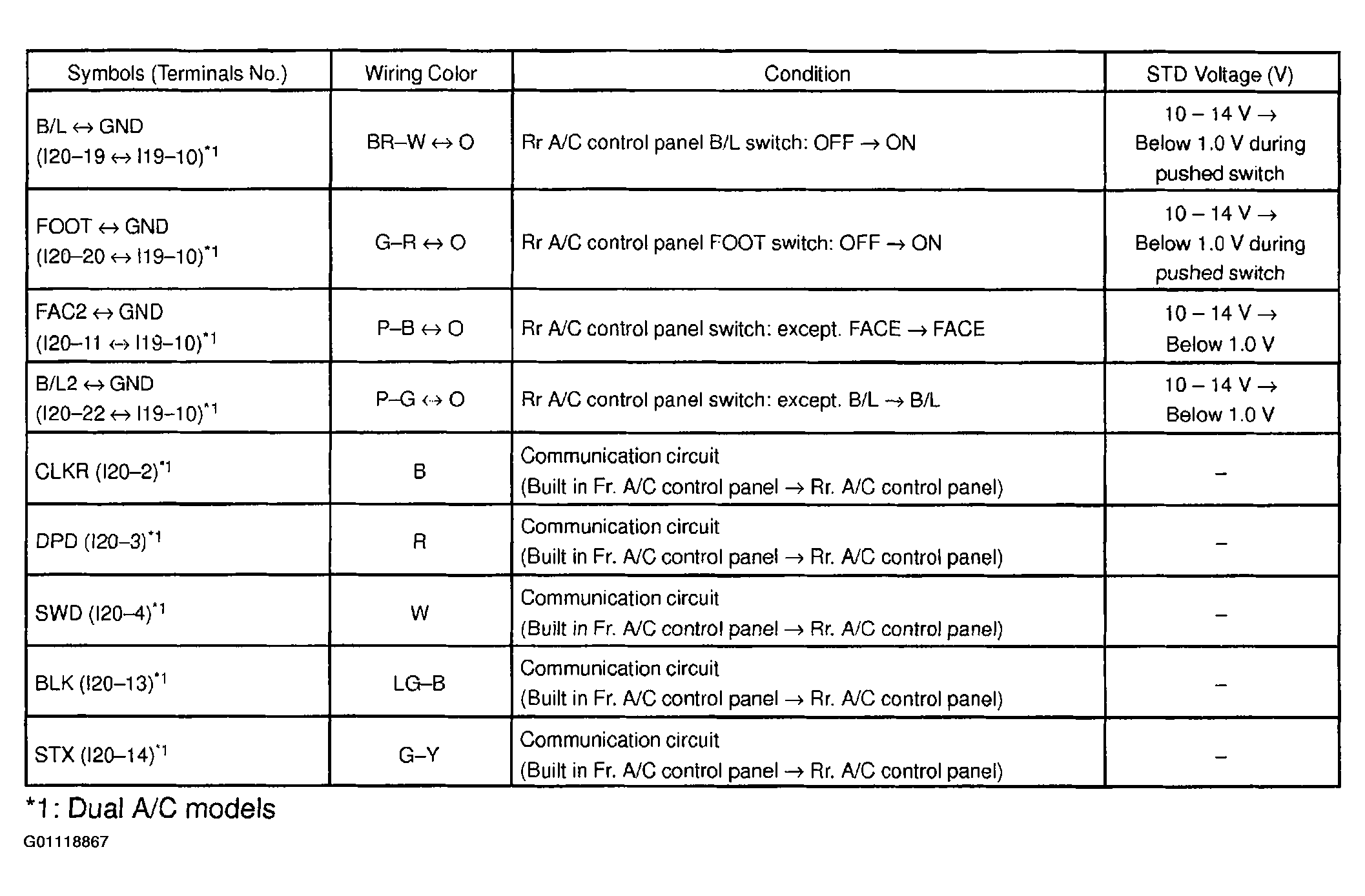

Fig 3: Locating Integration Control And Panel Terminal Specifications (2 Of 3)

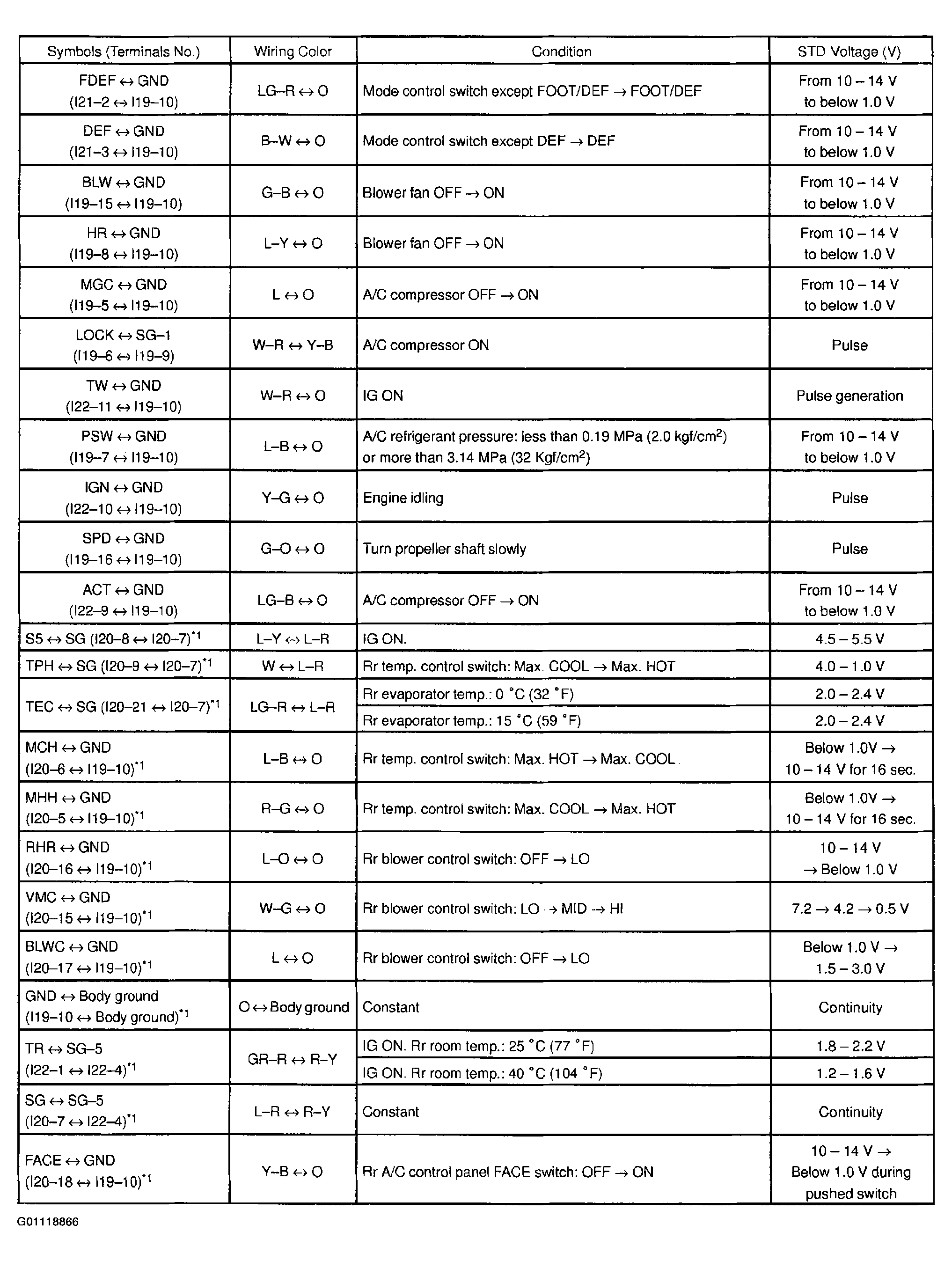

Fig 4: Locating Integration Control And Panel Terminal Specifications (3 Of 3)
