Step 6 - Door Lock Signal, Inspect Door Lock Control Operation
WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the connector from the junction block No. 1.

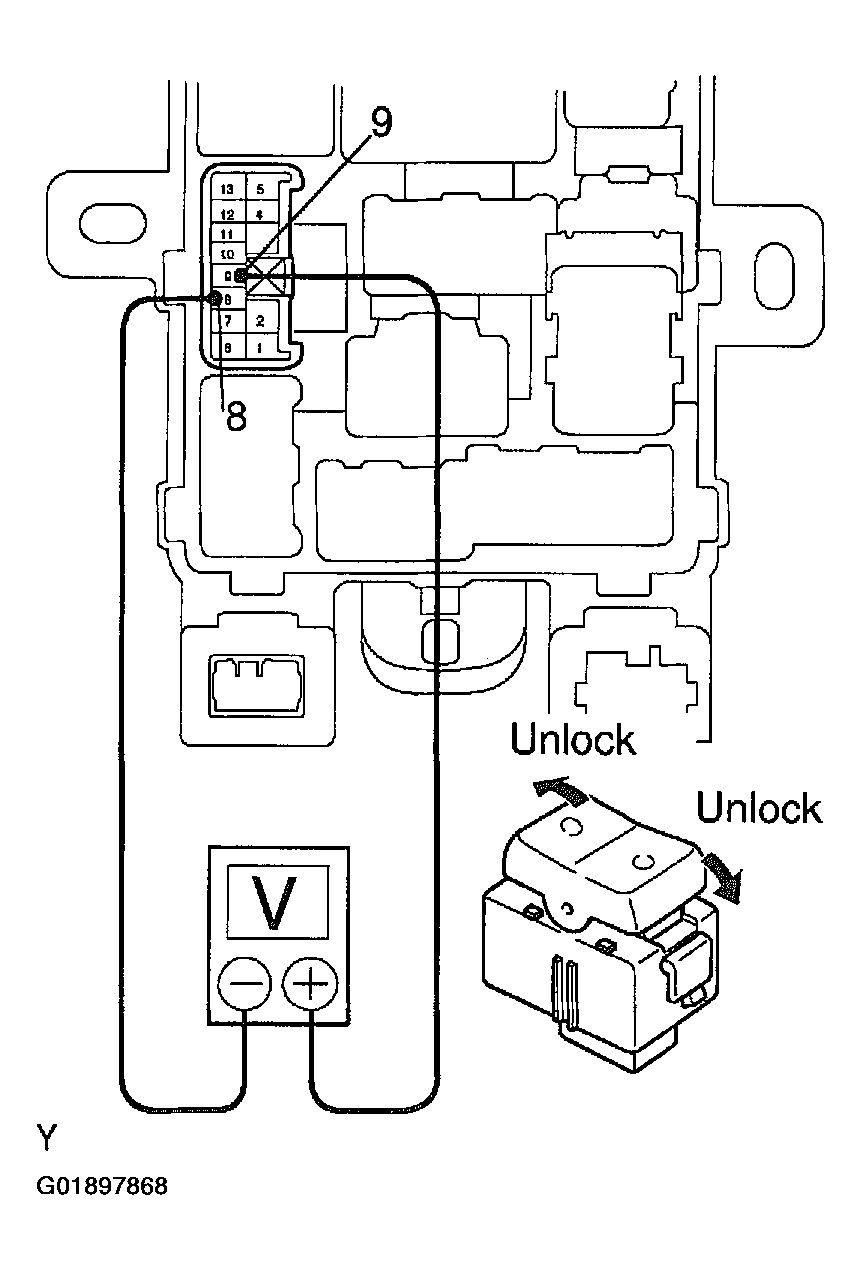

- Connect the positive (+) lead from the voltmeter to terminal 9 and the negative (-) lead to terminal 8.
- Set the door lock control switch to UNLOCK, check that the voltage rises from 0 V to battery positive voltage for approximately 0.25 seconds.
- Remove the polarity to voltmeter leads.
- Set the door lock control switch to LOCK, check that the voltage rises from 0 V to battery positive voltage for approximately 0.25 seconds.
