Section 412 (Introduction)
›
Vehicle Lift And Support Locations
Vehicle Lift And Support Locations
WARNING:
This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

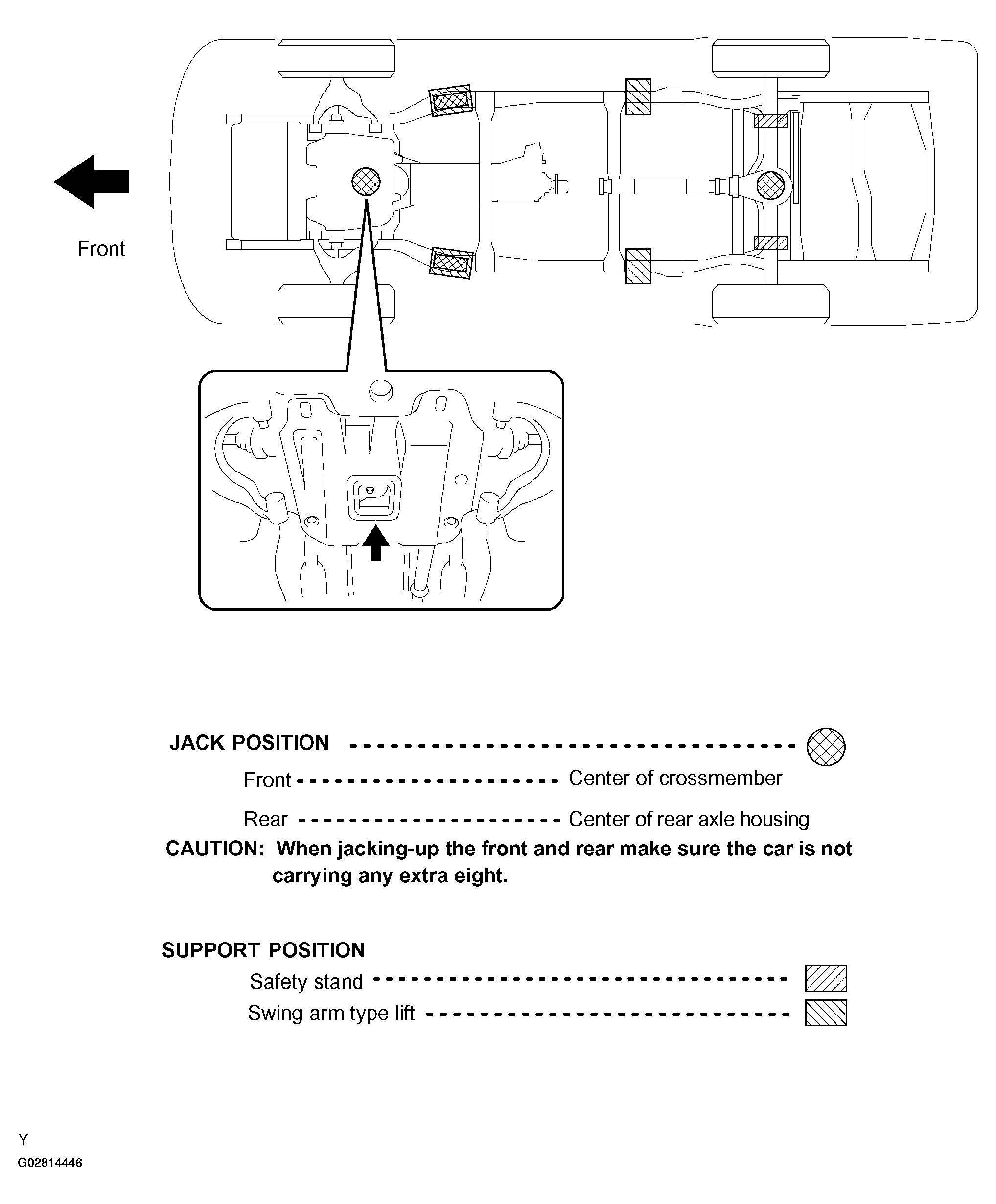

Fig 1: Identifying Vehicle Lift And Support Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
