Problem Symptoms Table

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. Headlamp And Tail Lamp

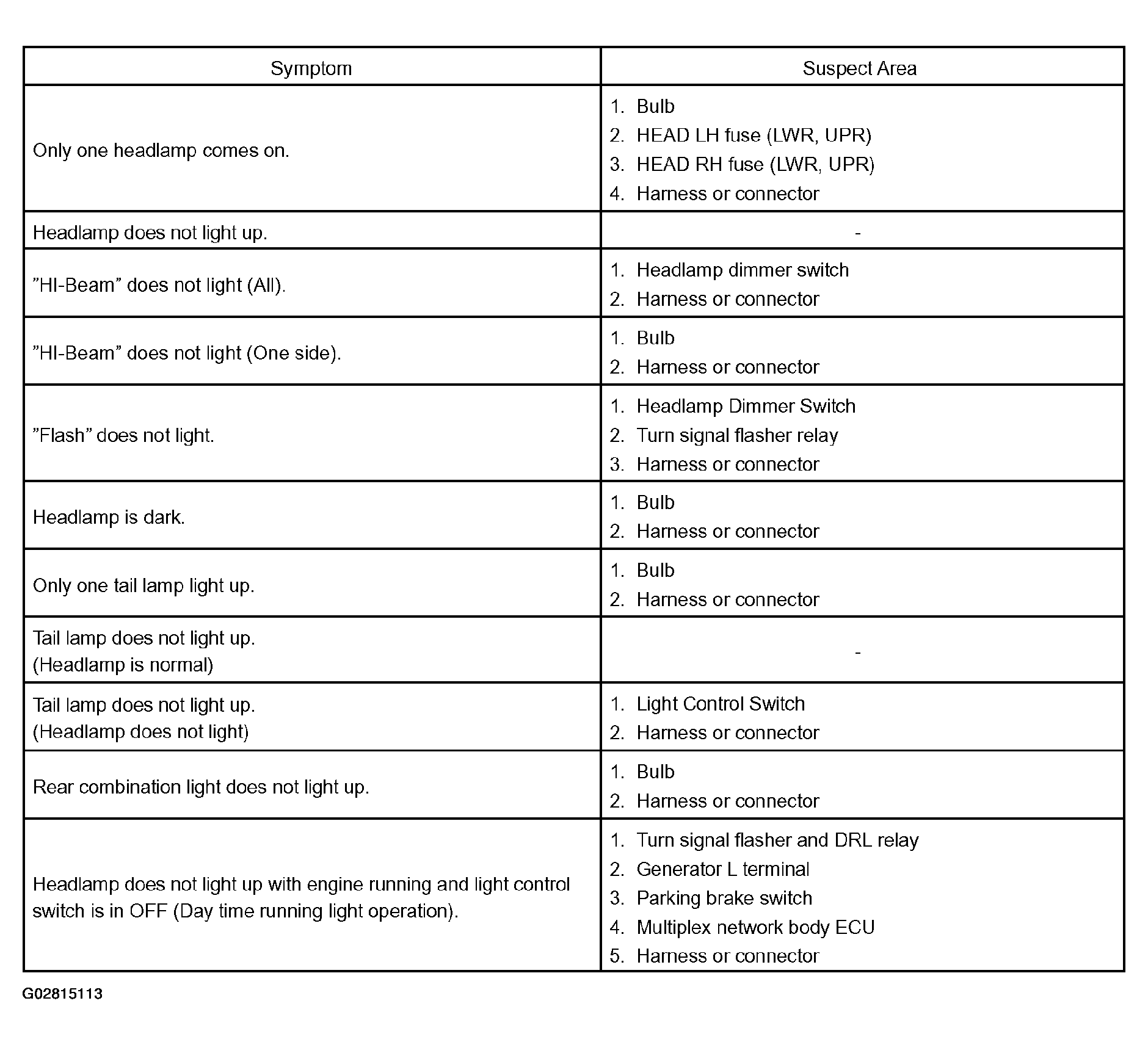

    Fig 1: Headlamp & Tail Lamp Symptom Table
    G02815113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Automatic Light Control System
    AUTOMATIC LIGHT CONTROL SYSTEM PROBLEM SYMPTOMS

    Symptom Suspect Area
    Automatic light control system does not operate AUTOMATIC LIGHT CONTROL SYSTEM DOES NOT OPERATE
  3. Light Auto Cut System

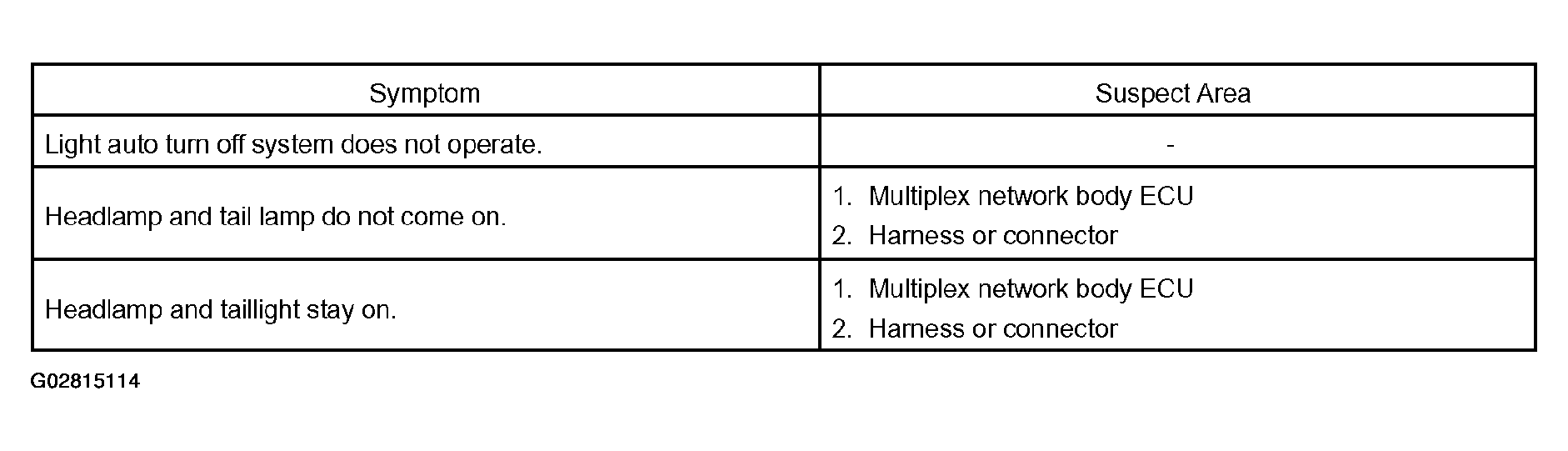

    Fig 2: Automatic Turn OFF System Symptoms Table
    G02815114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Fog Lamp System
    Fig 3: Fog Lamp Symptom Table
    G02815115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Turn Signal And Hazard Warning System

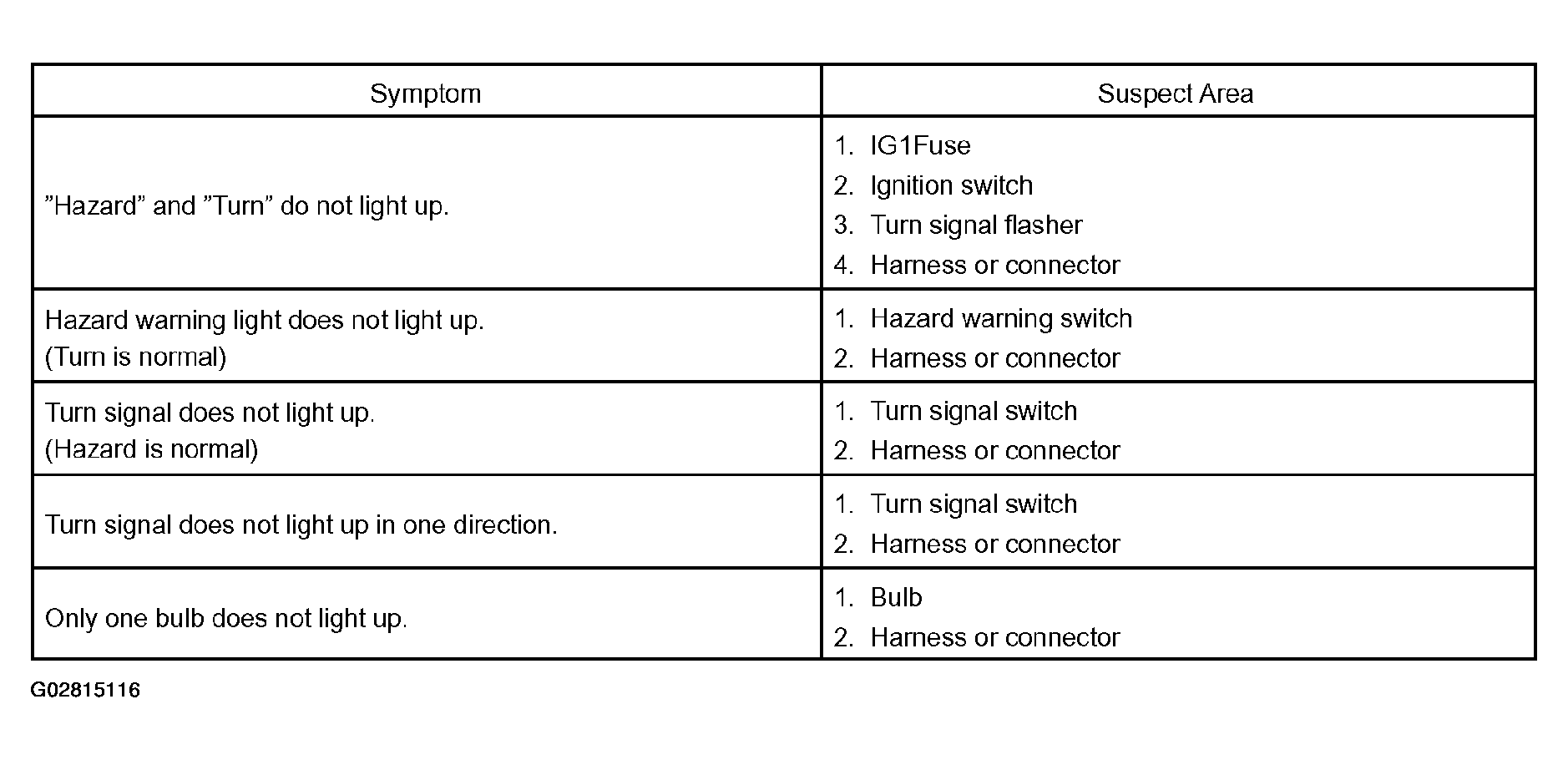

    Fig 4: Turn Signal & Hazard Warning System Symptom Table
    G02815116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Illuminated Entry System

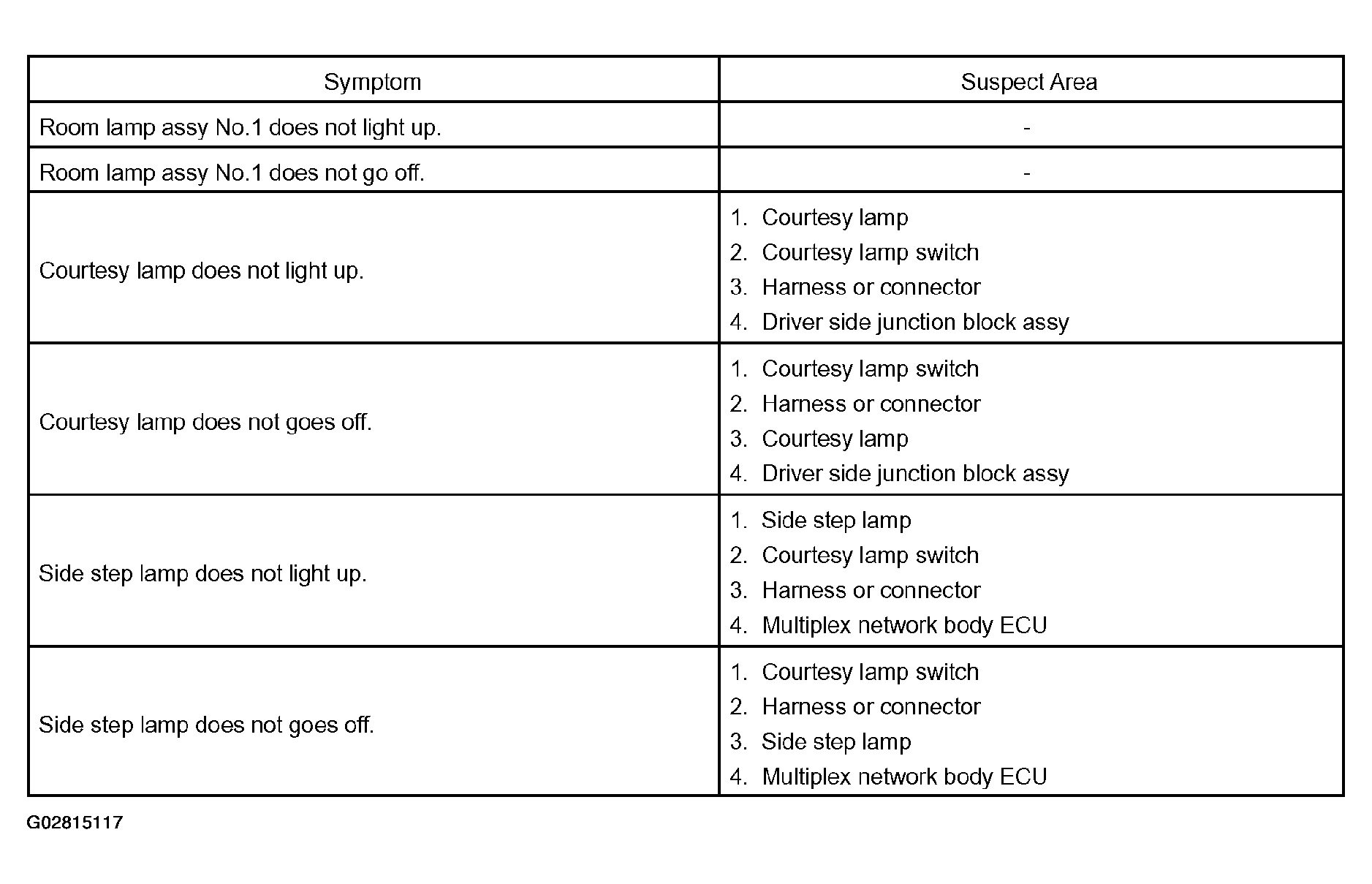

    Fig 5: Illuminated Entry System Symptom Table
    G02815117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
