Inspection Procedure

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

Inspect Fuse (AM2, Gauge, Dome)
1. Check the continuity in AM2 fuse.
2. Check the continuity in GAUGE fuse.
3. Check the continuity in DOME fuse.
1. OK: Go To Next Step
2. NG: Replace Fuse
Check Combination Meter Assy (Power Source And Ground Circuit)
1. Remove the combination meter assy.
2. Check the continuity.
  1. Check the continuity between terminal C10-13 of the combination meter connector and body ground.

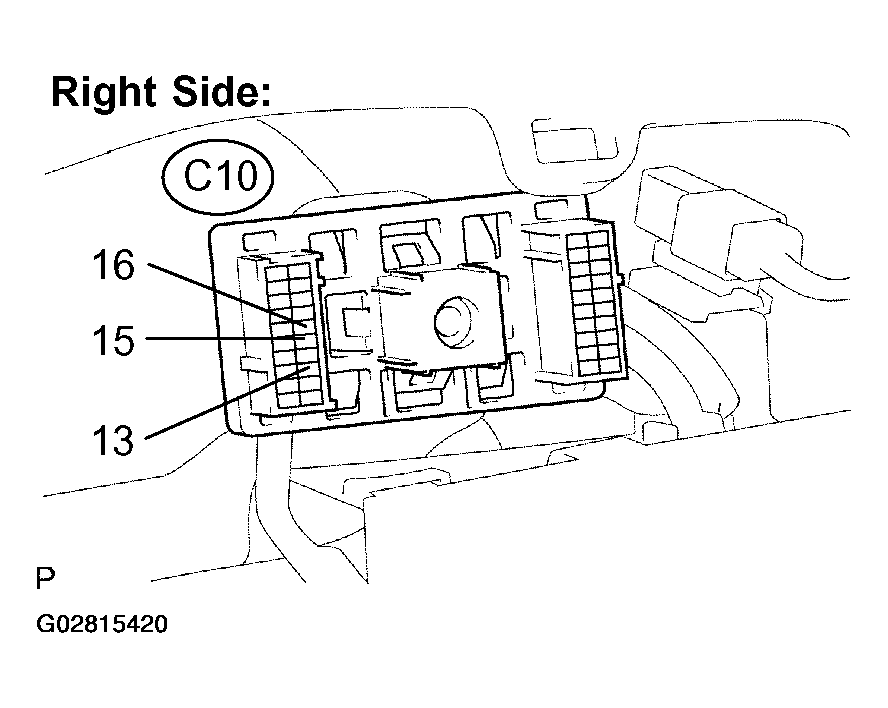

    Fig 1: Checking Combination Meter Terminal Continuity
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard: There is continuity.
3. Check the voltage.
  1. Measure voltage between terminal C10-16 of the combination meter connector and body ground.
    Standard voltage: 10 - 14 V
  2. Turn the ignition switch to ON.
  3. Measure voltage between terminal C10-15 of the combination meter connector and body ground.
    Standard voltage: 10 - 14 V
1. OK: Check And Replace Combination Meter Assy
2. NG: Repair Or Replace Harness Or Connector
