Inspection Procedure

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

Inspect Power Window Regulator Master Switch Assy
1. Remove the master switch.
2. Check the continuity between the terminals of the switch when the AUTO switch is operated.

  Fig 1: Identifying Power Window Regulator Master Switch Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

  Fig 2: AUTO Switch Specifications Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: Go To Next Step
2. NG: Replace Power Window Regulator Master Switch Assy
Check Harness And Connector (Master Switch >--< Motor)
1. Disconnect the D17 master switch connector.
2. Disconnect the P12 power window motor connector.
3. Check the continuity between the wire harness side connectors.

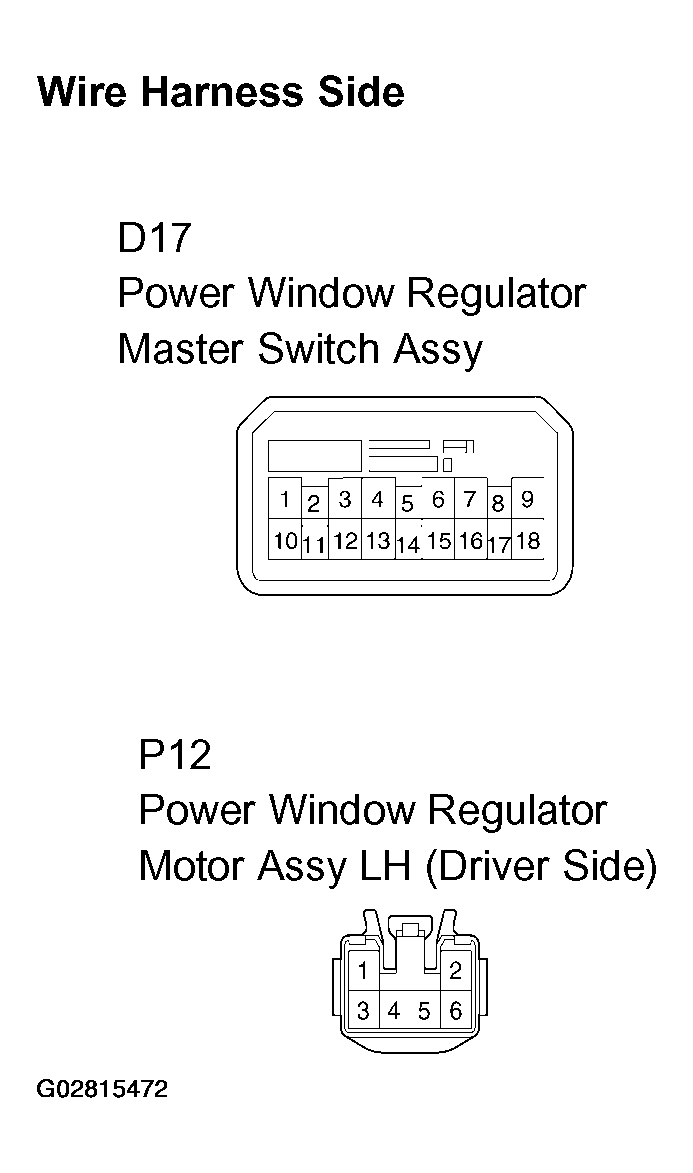

  Fig 3: Identifying D17 & P12 Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

  Fig 4: Master Switch & Motor Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Reference:
  Check operation of the power window motor (driver side).
  1. Remove the motor (See FRONT DOOR ).
  2. Apply battery voltage to the connector terminals 1 and 2.
  3. Check that the motor rotates smoothly.

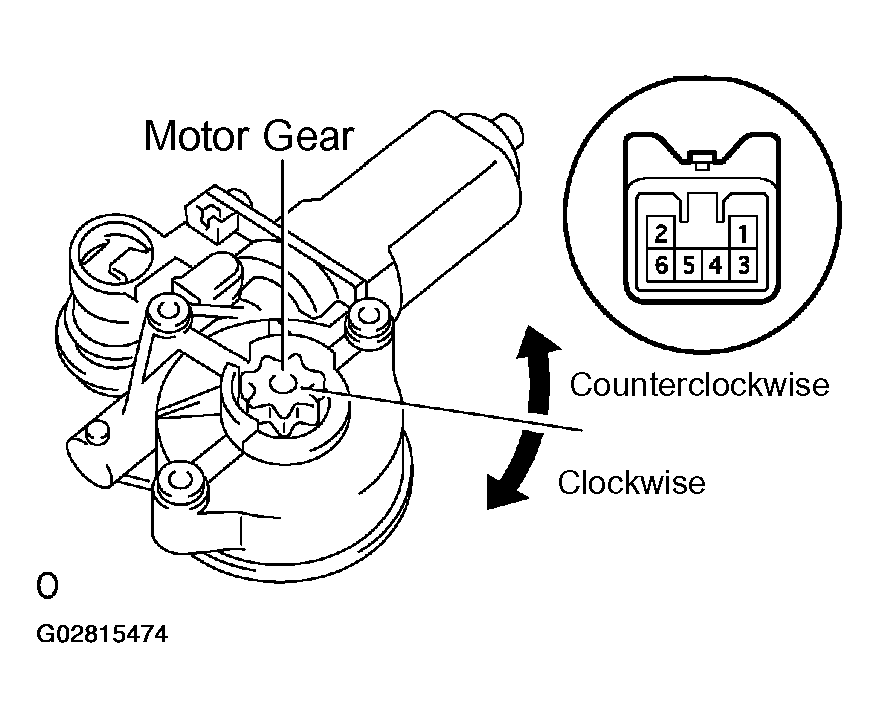

    Fig 5: Checking Motor Gear Rotation
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE: Do not apply battery voltage to any terminal except terminals 1 and 2.

  Standard:

  Fig 6: Power Window Motor Specifications Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: Replace Power Window Regulator Motor Assy LH (Driver Side)
2. NG: Repair Or Replace Harness And Connector
