Section 428 (Engine Immobilizer System - Diagnostics): Location

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

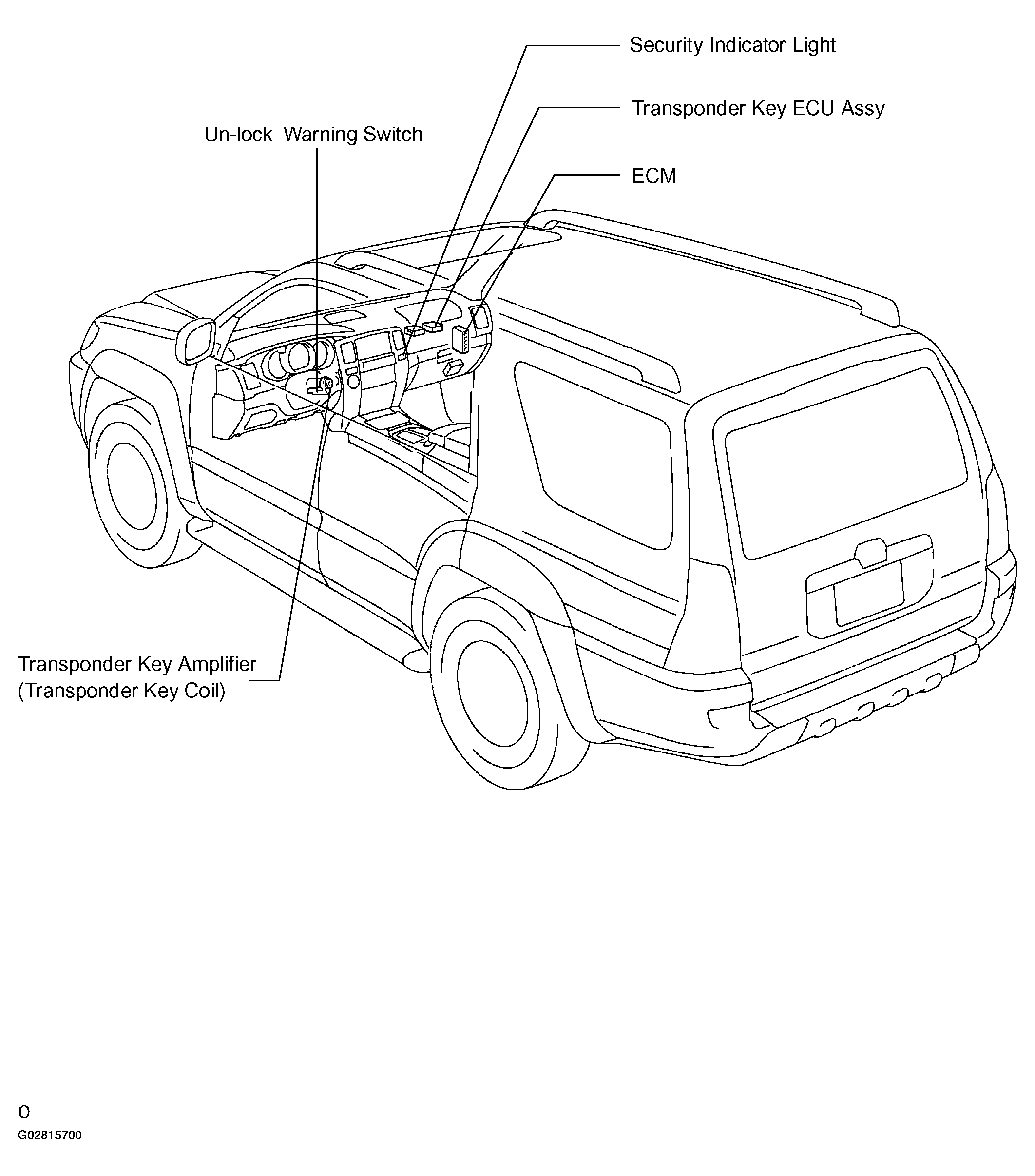

Fig 1: Locating Engine Immobilizer System Components
G02815700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
