Section 436 (Abs Speed Sensor Rear LH): Replacement

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Replacement of RH side is same as that of LH side.
  1. REMOVE REAR WHEEL
  2. REMOVE SPEED SENSOR REAR LH
    1. Disconnect the speed sensor connector.

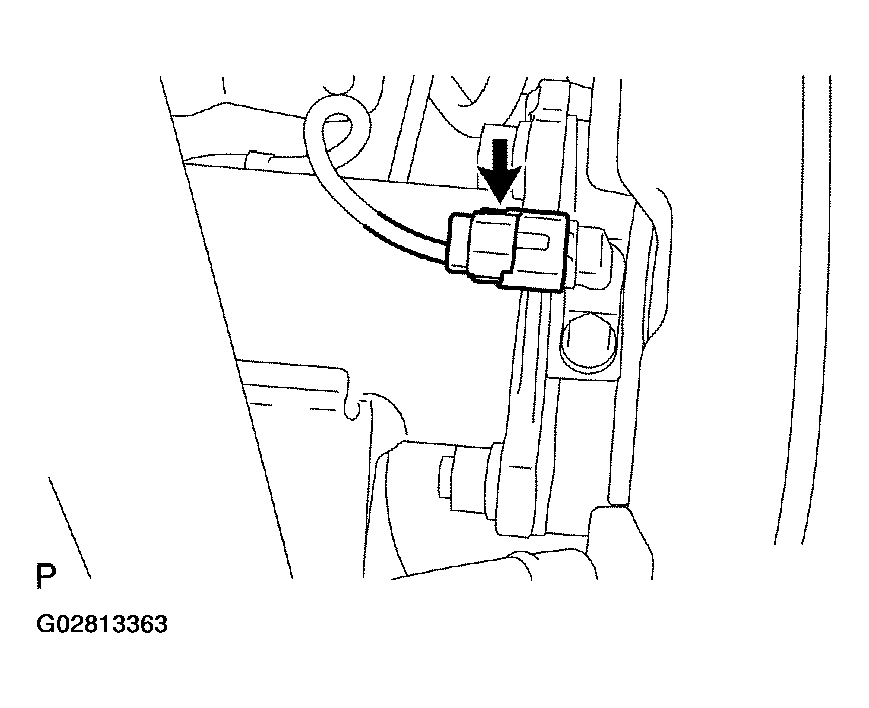

      Fig 1: Disconnecting Speed Sensor Connector
      G02813363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. NOTE:
      • Do not stick and foreign matter on the sensor tip.
      • Do not let the foreign matter into the sensor installation hole.
      Fig 2: Removing Nut And Speed Sensor Rear From The Axle Hub
      G02813364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and speed sensor rear from the axle hub.
  3. INSTALL SPEED SENSOR REAR LH
      NOTE: Make sure the sensor tip is clean.
      Fig 3: Installing Rear Speed Sensor To Steering Knuckle
      G02813365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the rear speed sensor with the nut to the steering knuckle.

      Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

    2. Connect the speed sensor connector.
      Fig 4: Connecting Speed Sensor Connector
      G02813366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR WHEEL

    Torque: 110 N.m (1,122 kgf.cm, 81 ft.lbf)

  5. CHECK VSC SENSOR SIGNAL (See  PRE-CHECK  )
