Section 443 (Sliding Roof): Inspection

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT SLIDING ROOF MOTOR SWITCH ASSY
1. Remove the sliding roof motor switch (See SLIDING ROOF MOTOR SWITCH REPLACEMENT ).
2. Check the continuity between the terminals when operating the switch.

  Fig 1: Inspecting Sliding Roof Motor Switch Assy Terminal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

  Fig 2: Specified Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the switch.
INSPECT HARNESS AND CONNECTOR (FOR SLIDING ROOF MOTOR ASSY)
1. Disconnect the sliding roof motor connector (See SLIDING ROOF MOTOR SWITCH REPLACEMENT ).
2. Check the connector terminals of the wire harness side connector.

  Fig 3: Inspecting Harness And Connector Terminal (For Sliding Roof Motor Assy)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

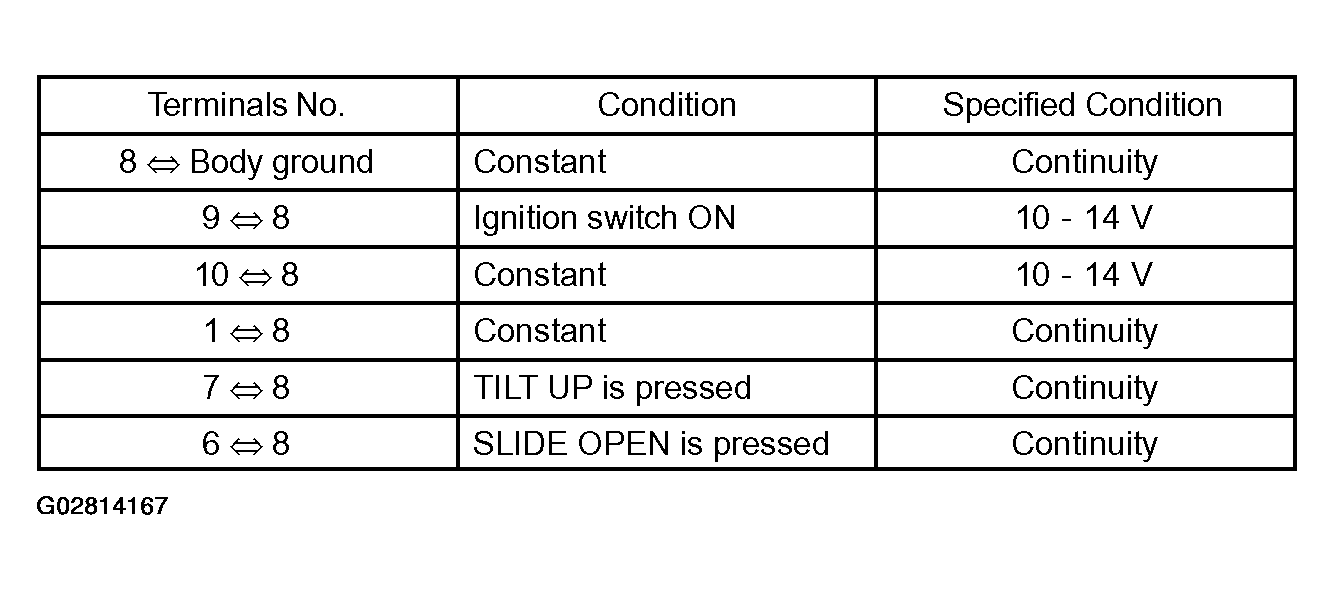

  Fig 4: Specified Condition Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, there may be a malfunction on the wire harness side.
