Air Conditioning Control Assembly (Multi Display): Components

WARNING: This page is about a different car, the 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

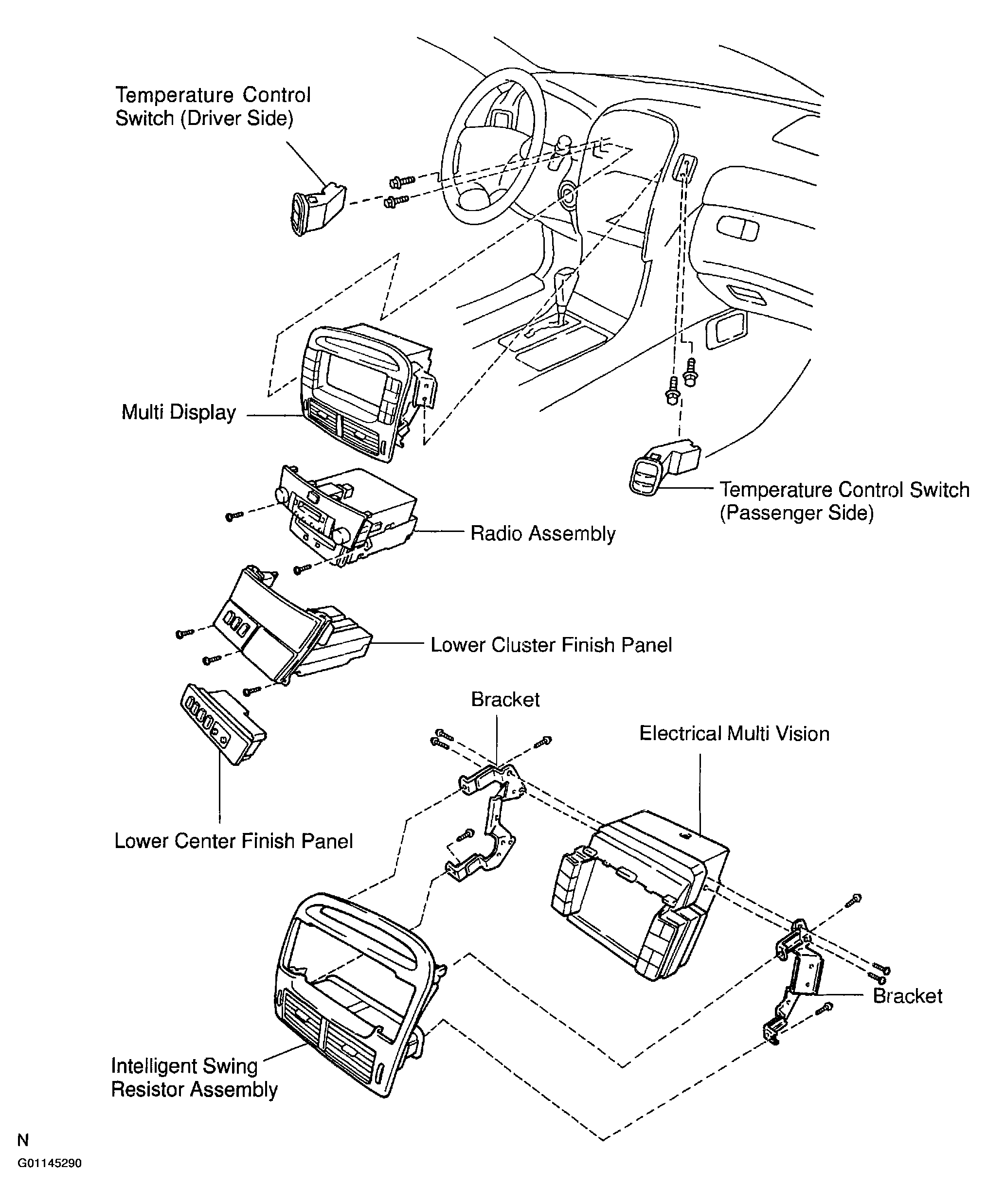

Fig 1: Identifying Air Conditioning Control Assembly (Multi Display) Components
G01145290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
