Section 51 (Air Conditioning): Condenser: Components

WARNING: This page is about a different car, the 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

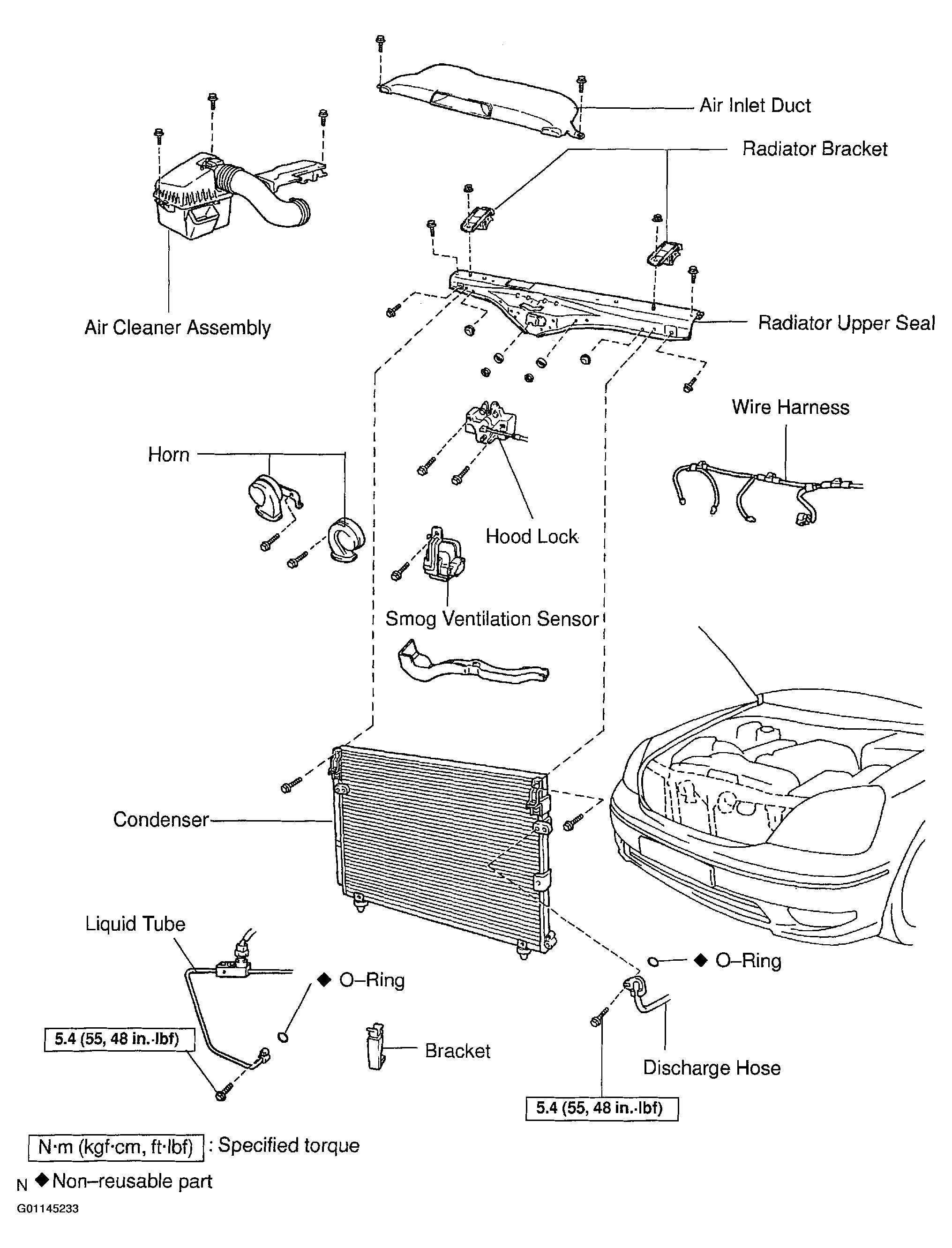

Fig 1: Identifying Condenser Components (1 Of 2)
G01145233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

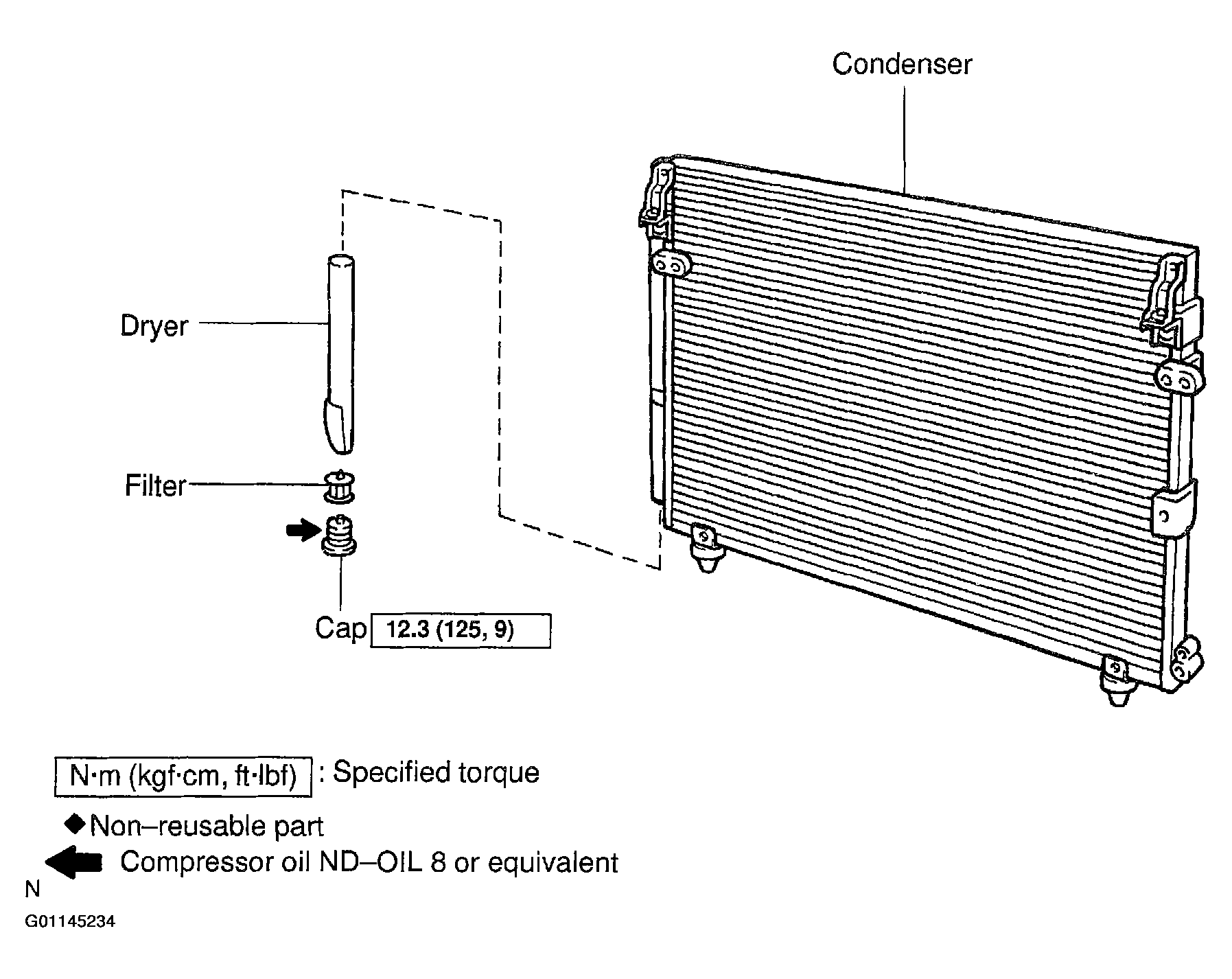

Fig 2: Identifying Condenser Components (2 Of 2)
G01145234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
