Duct Sensor: Inspection

WARNING: This page is about a different car, the 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. Driver Side:  remove combination meter. See step 25)  under REMOVAL  under INSTRUMENT PANEL .
  2. Passenger Side:  remove finish panel assembly. See step 10)  under REMOVAL  under INSTRUMENT PANEL .

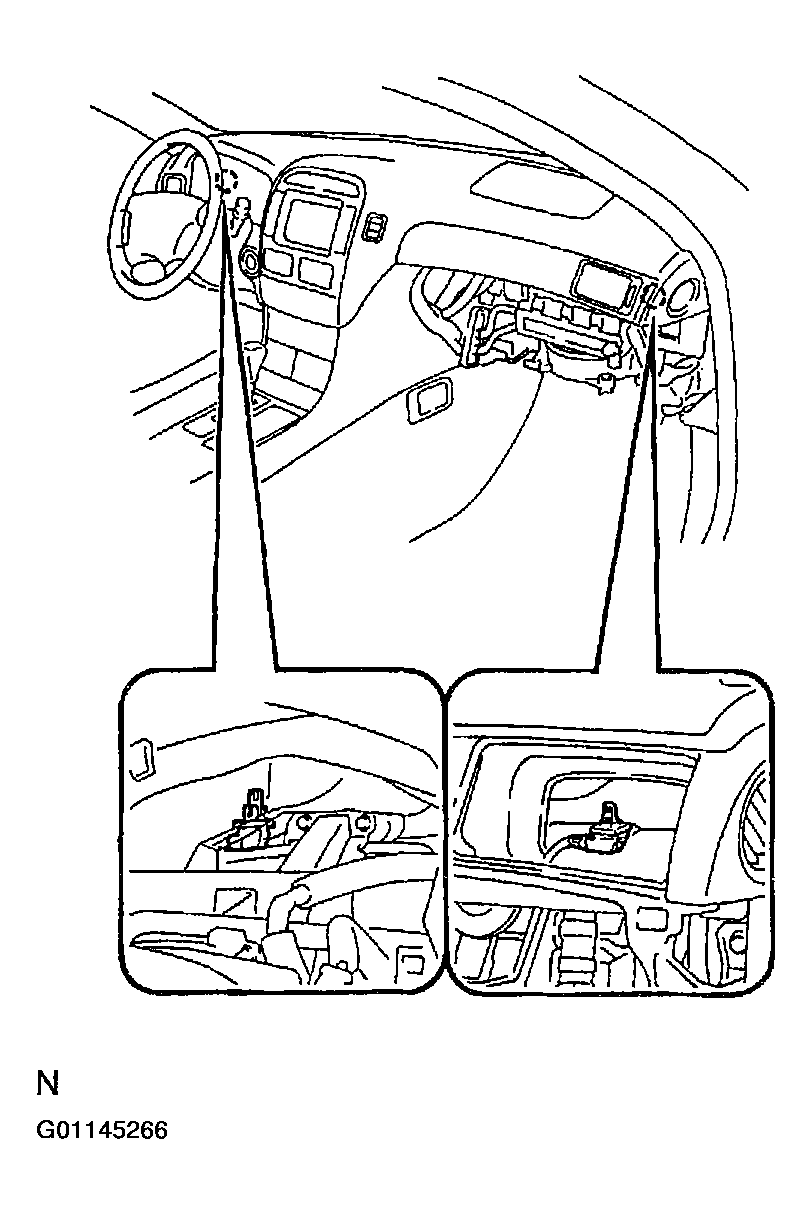

    Fig 1: Locating Connectors For Removal
    G01145266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove sensor.
    1. Disconnect the 2 connectors.
    2. Remove the 2 sensors.
  4. Drive Side:  inspect duct sensor circuit. See AIR DUCT SENSOR CIRCUIT (DRIVER SIDE) .
  5. Passenger side: inspect duct sensor circuit. See AIR DUCT SENSOR CIRCUIT (PASSENGER SIDE) .
  6. Install sensor.
  7. Driver side: install combination meter.
  8. Passenger side: install finish panel assembly.
