Speed Sensor Rear LH: Replacement

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Replacement of RH side is same as that of LH side.

  1. REMOVE REAR WHEEL
  2. REMOVE SPEED SENSOR REAR LH
    1. Disconnect the speed sensor connector.
      Fig 1: Disconnecting Speed Sensor Connector
      G02857266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and speed sensor rear from the axle hub.
    Fig 2: Removing Speed Sensor Rear
    G02857267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Do not stick and foreign matter on the sensor tip.
    • Do not let the foreign matter into the sensor installation hole.
  3. INSTALL SPEED SENSOR REAR LH
    1. Install the rear speed sensor with the nut to the steering knuckle.
      Fig 3: Installing Rear Speed Sensor
      G02857268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.3 N.m (85 kgf. cm, 73 in.lbf)

      NOTE: Make sure the sensor tip is clean.
    2. Connect the speed sensor connector.

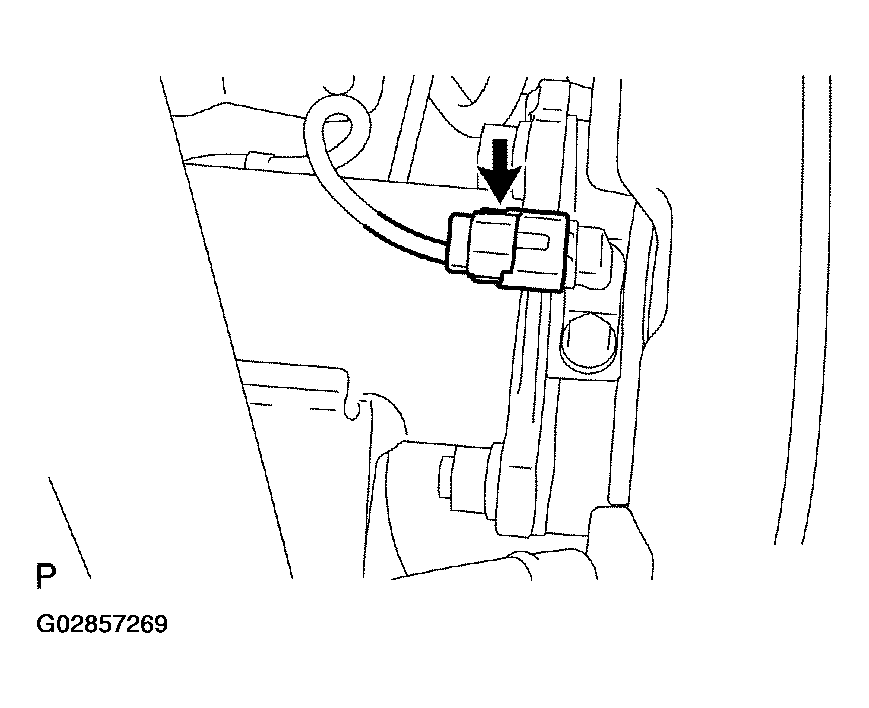

      Fig 4: Connecting Speed Sensor Connector
      G02857269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR WHEEL

    Torque: 110 N.m (1, 122 kgf.cm, 81 ft.lbf)

  5. CHECK VSC SENSOR SIGNAL (See PRE-CHECK )
