On-Vehicle Inspection
WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK STEERING WHEEL FREEPLAY
- Park the vehicle and face the tires straight ahead.

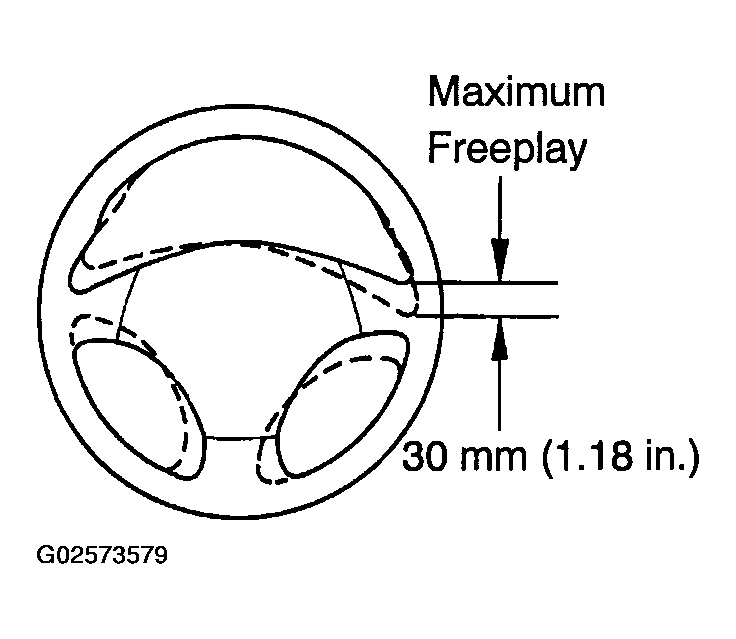

- Rock the steering wheel gently up and down with your hand, check the steering wheel freeplay.
Maximum freeplay: 30 mm (1.18 in.)
