Power Steering Link ASSY: Components

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

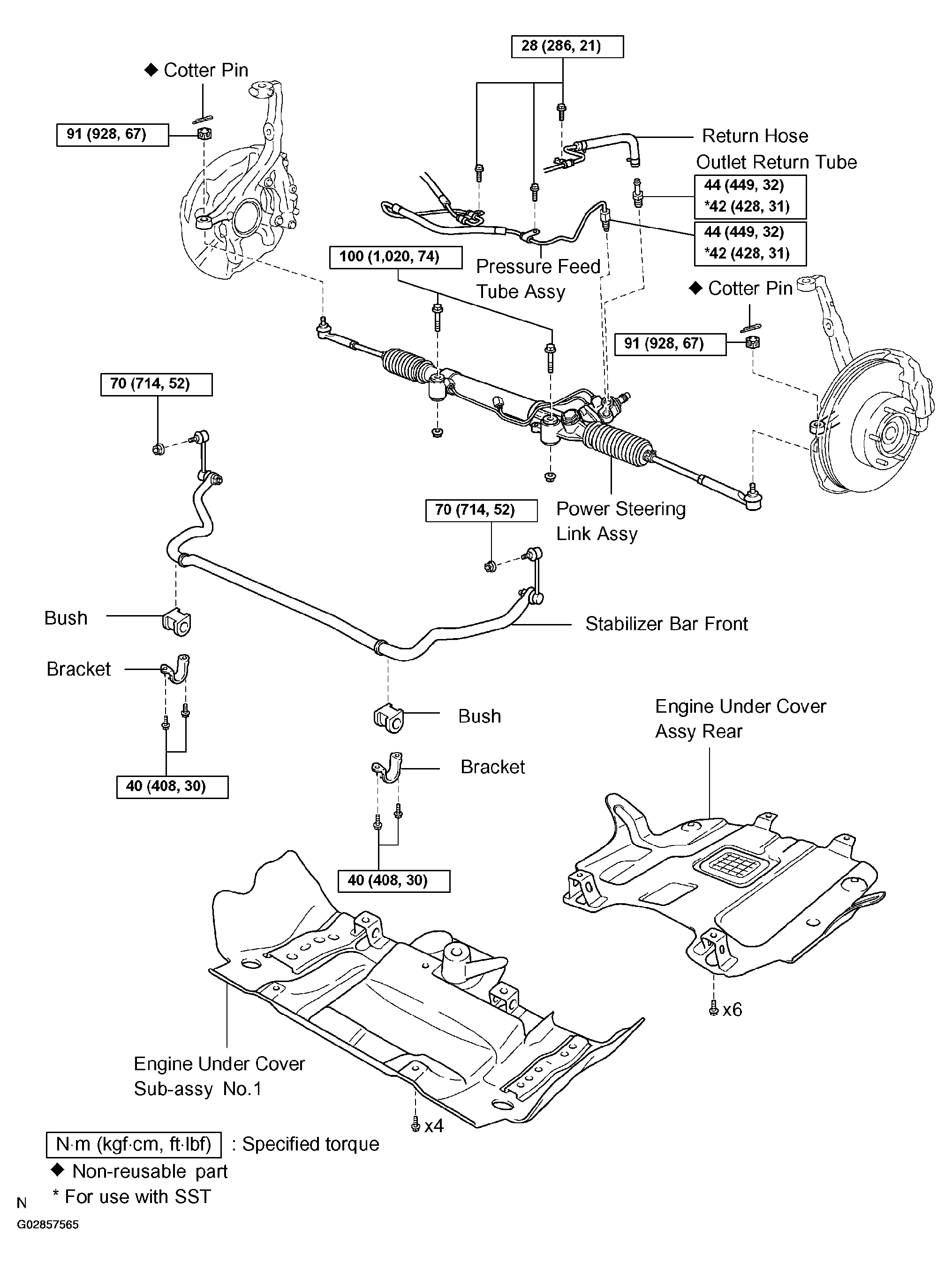

Fig 1: Locating Power Steering Link Assembly Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

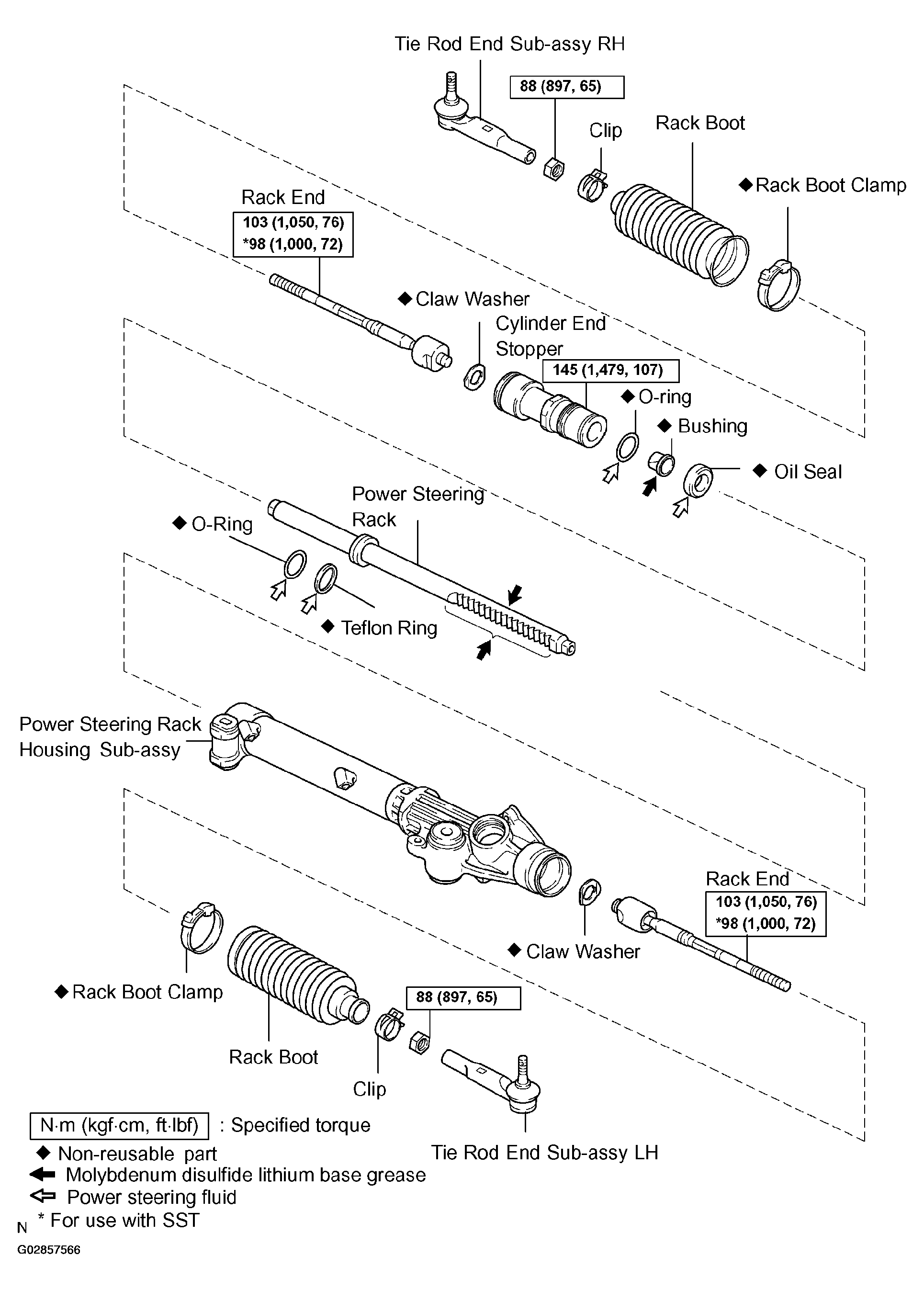

Fig 2: Locating Power Steering Link Assembly Components (2 Of 3)

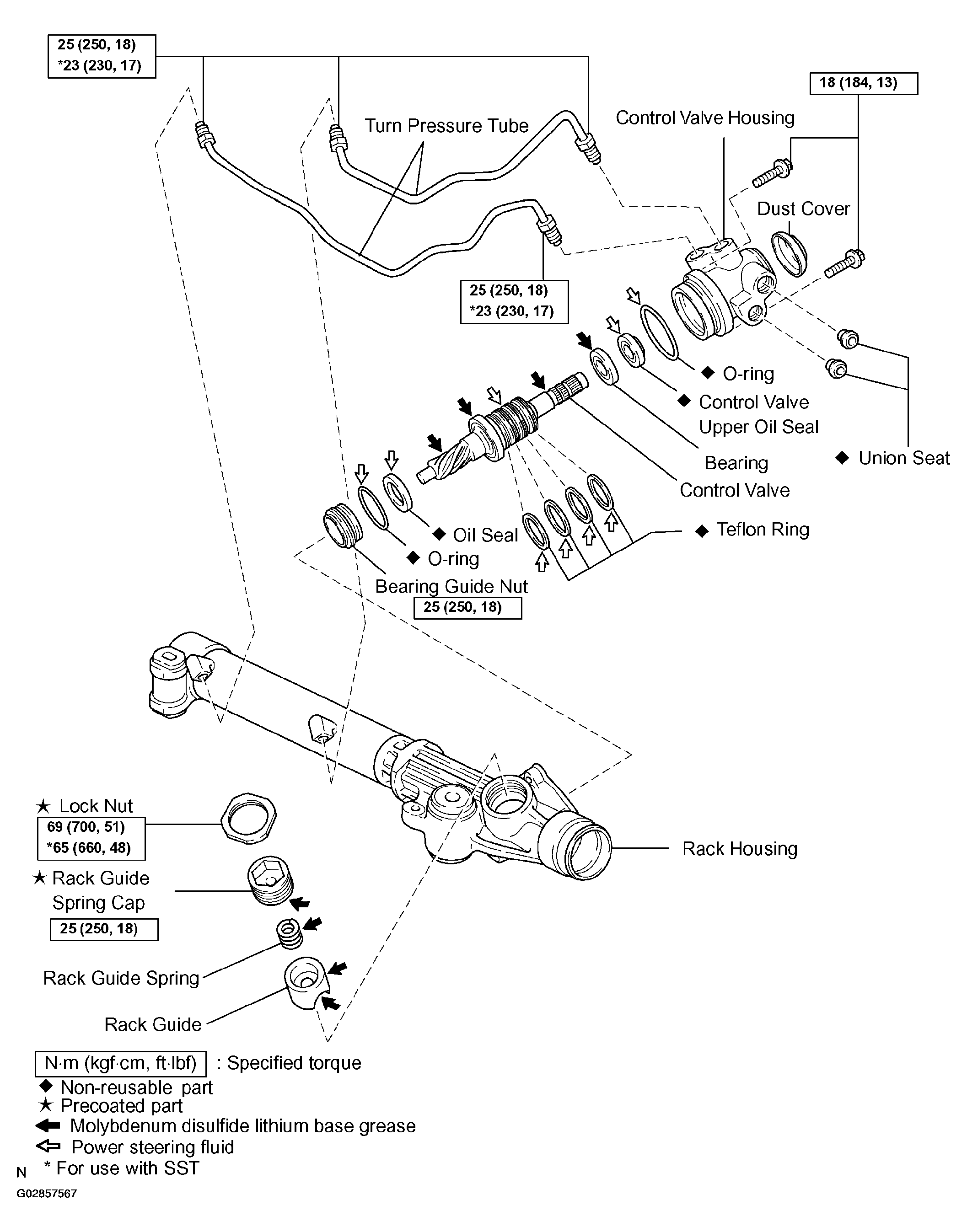

Fig 3: Locating Power Steering Link Assembly Components (3 Of 3)
