Windshield Wiper Switch ASSY: Replacement
WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE STEERING COLUMN COVER LWR (See OVERHAUL
)
- REMOVE STEERING COLUMN COVER (See OVERHAUL
)
- REMOVE WINDSHIELD WIPER SWITCH ASSY

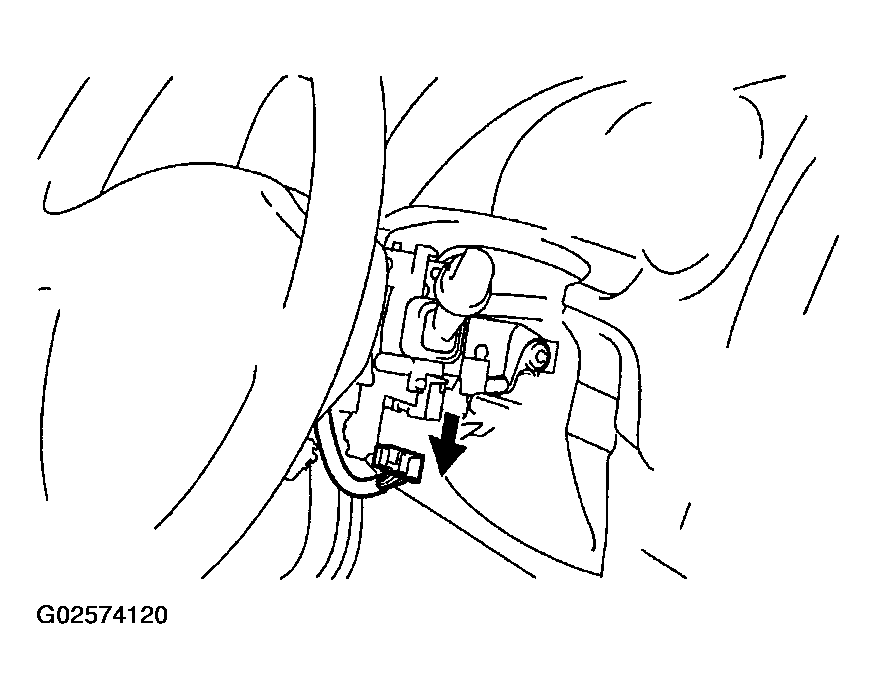

- Disconnect the connector.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

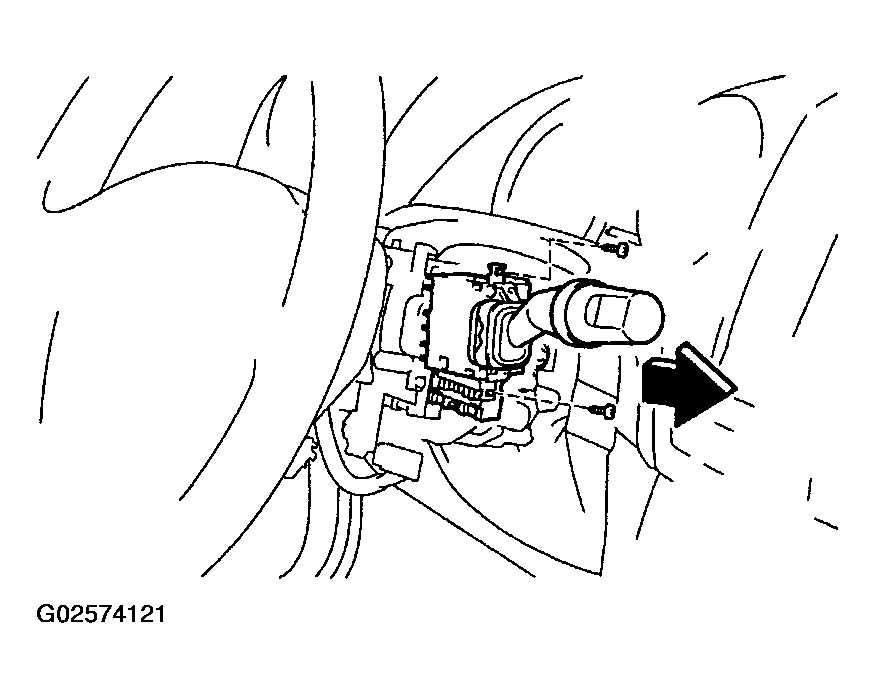

- Remove the 2 screws and windshield wiper switch assy.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
