Radiator ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

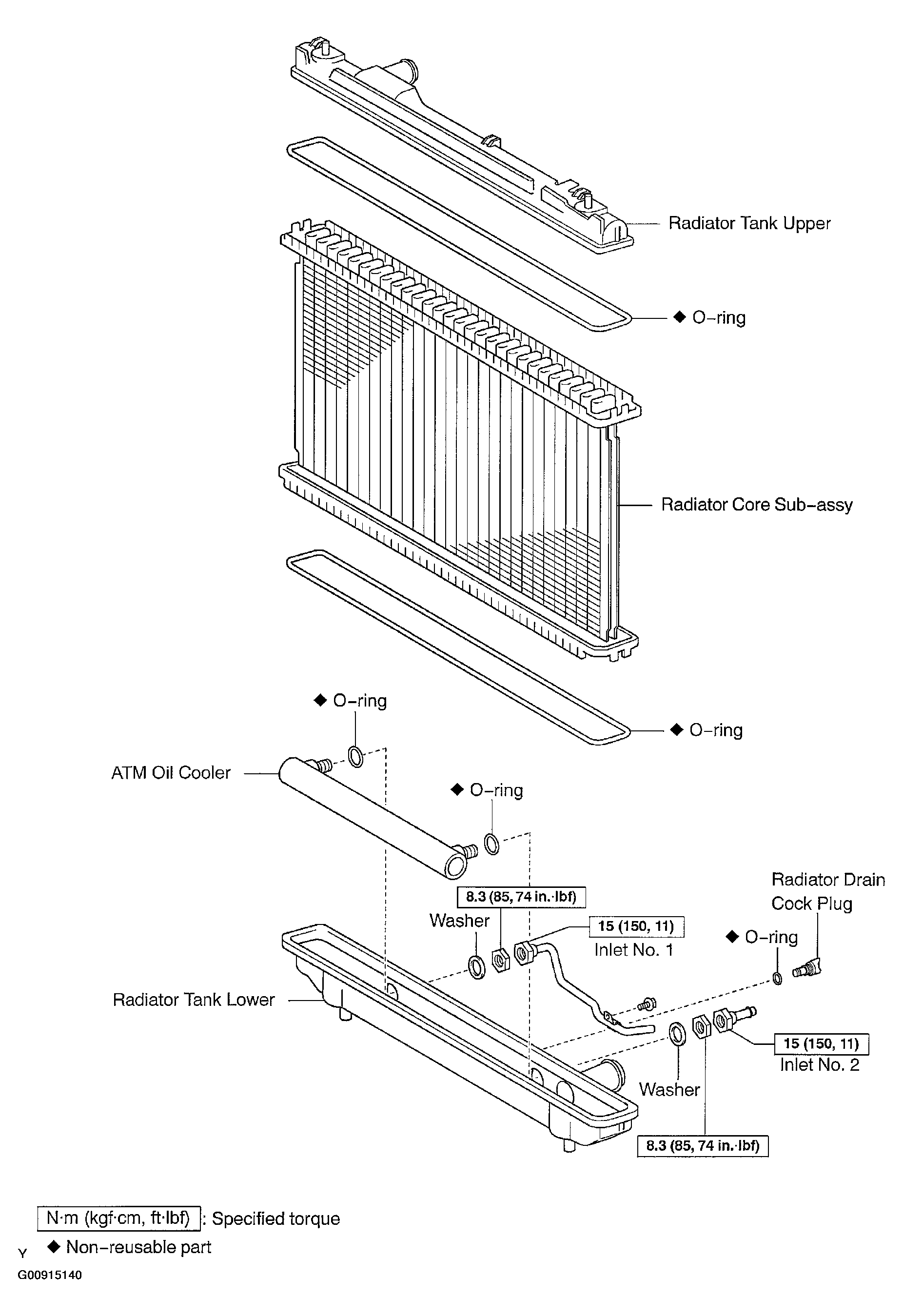

Fig 1: Exploded View Of Radiator Assy Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

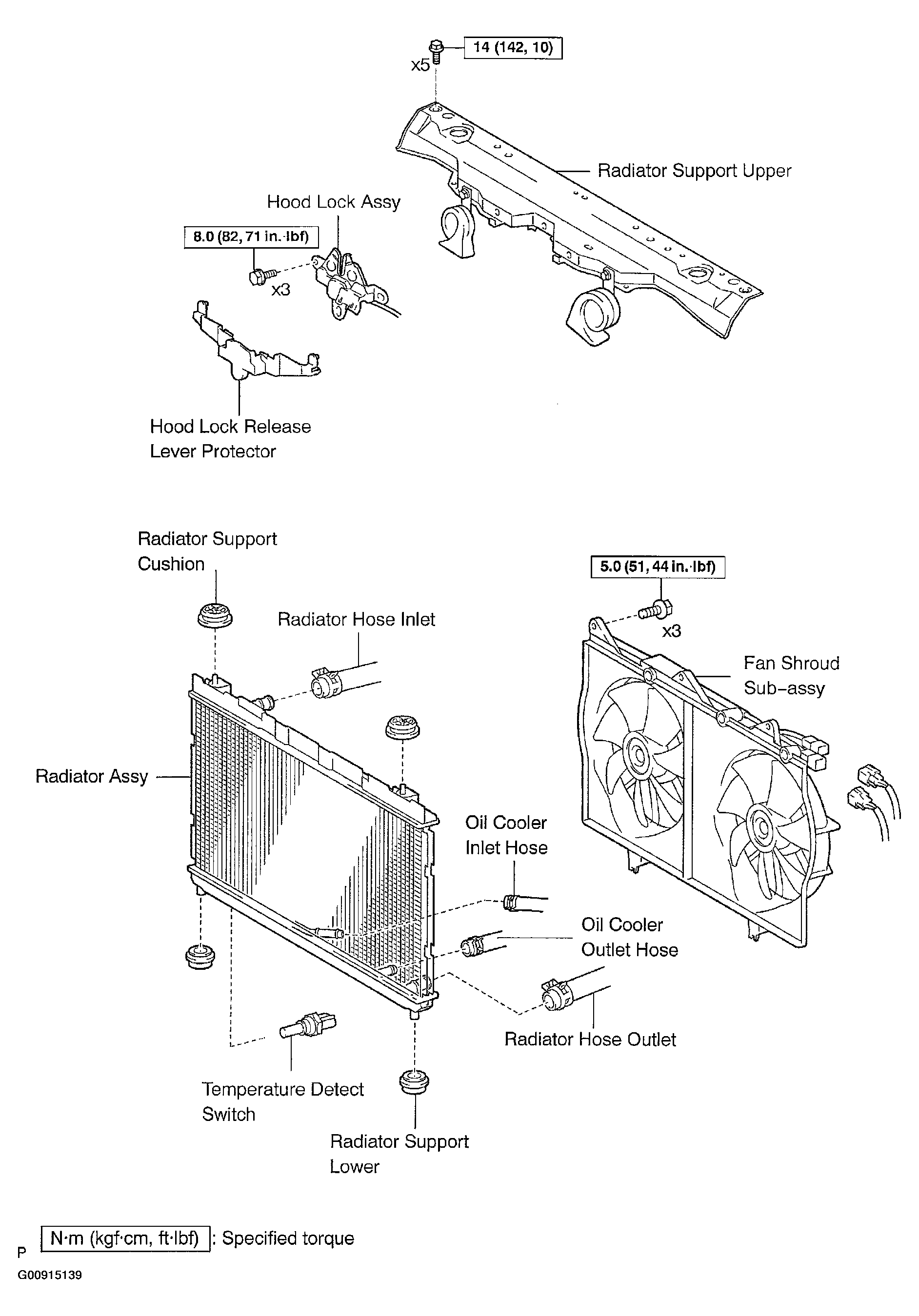

Fig 2: Exploded View Of Radiator Assy Components(2 Of 2)

Fig 3: Exploded View Of Radiator Assy Components (1 Of 2)
