Section 832 (Front Door): Adjustment

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

  1. INSPECT FRONT DOOR PANEL SUB-ASSY LH
    1. Check that the clearance is within the standard range.

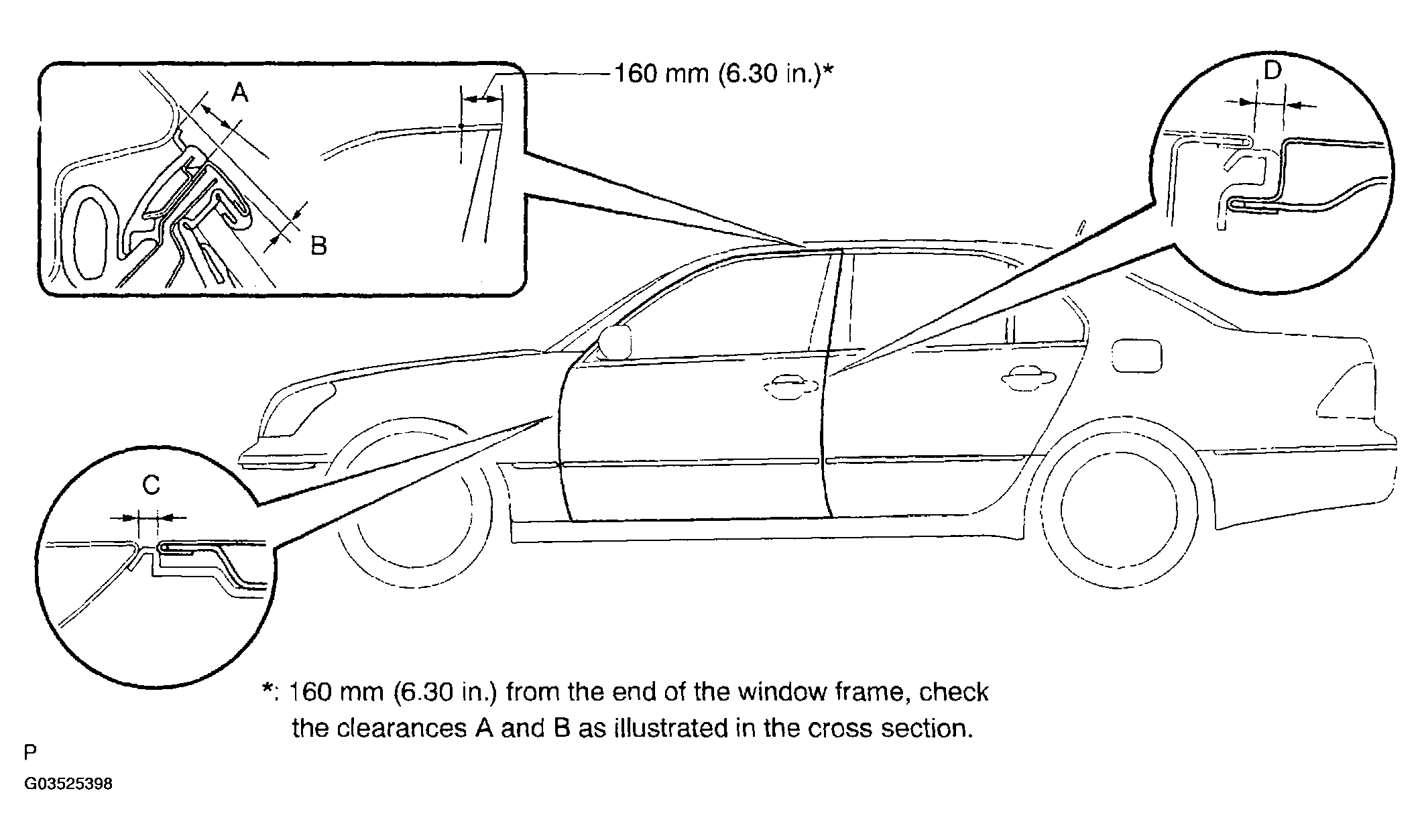

      Fig 2: Inspecting Clearance Within Standard Range
      G03525398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      STANDARD RANGE SPECIFICATION

      Area Measurement Area Measurement
      A 8.0 +/- 1.5 mm (0.315 +/- 0.059 in.) C 4.0 +/- 1.5 mm (0.157 +/- 0.059 in.)
      B 2.5 +/- 1.5 mm (0.098 +/- 0.059 in.) D 4.0 +/- 1.5 mm (0.157 +/- 0.059 in.)
  2. ADJUST FRONT DOOR PANEL SUB-ASSY LH
    1. Disconnect the negative (-) terminal cable from the battery.
      CAUTION: Work must be started at least 90 seconds after the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery. (The SRS is equipped with a back-up power source. If work is started within 90 seconds of disconnecting the negative (-) terminal battery and turning the ignition switch to the LOOK position, the SRS may deploy.)
    2. Using SST, adjust the door horizontally and vertically by loosening the body side hinge bolts.

      SST 09812-00010, 09812-00020

    3. Tighten the body side hinge bolts after the adjustment.

      Torque: 32.5 N.m (332 kgf.cm, 24 ft.lbf)

      Fig 3: Tightening Body Side Hinge Bolts After Adjustment
      G03525399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. As shown in the illustration, horizontally and vertically adjust the door by loosening the door side hinge bolts.
    5. Tighten the door side hinge bolts after the adjustment.

      Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

      Fig 4: Tightening Door Side Hinge Bolts After Adjustment
      G03525400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using a screwdriver, disengage the 4 claws and remove the cover.

      HINT:

      Tape the screwdriver tip before use.

      Fig 5: Disengaging Claw
      G03525401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic-faced hammer.
    8. Tighten the striker mounting screws after the adjustment.

      Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)

    9. Connect the negative (-) terminal cable to the battery.
    10. Initialize both systems (see INITIALIZATION ).
    11. Inspect the SRS warning lamp (see AIR BAG WARNING LIGHT DOES NOT ILLUMINATE ).

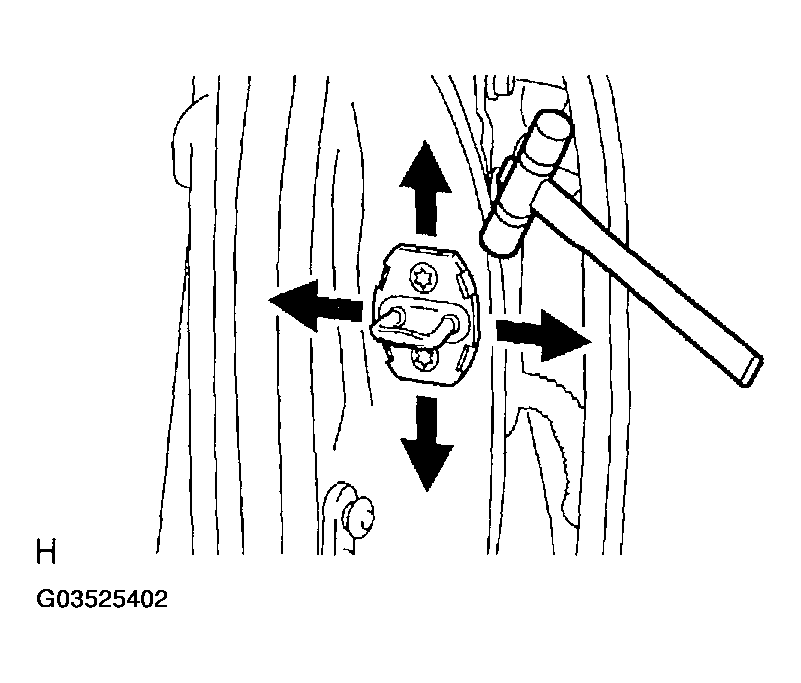

      Fig 6: Adjusting Striker Position
      G03525402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
