Section 852 (Interior Light System): Location

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

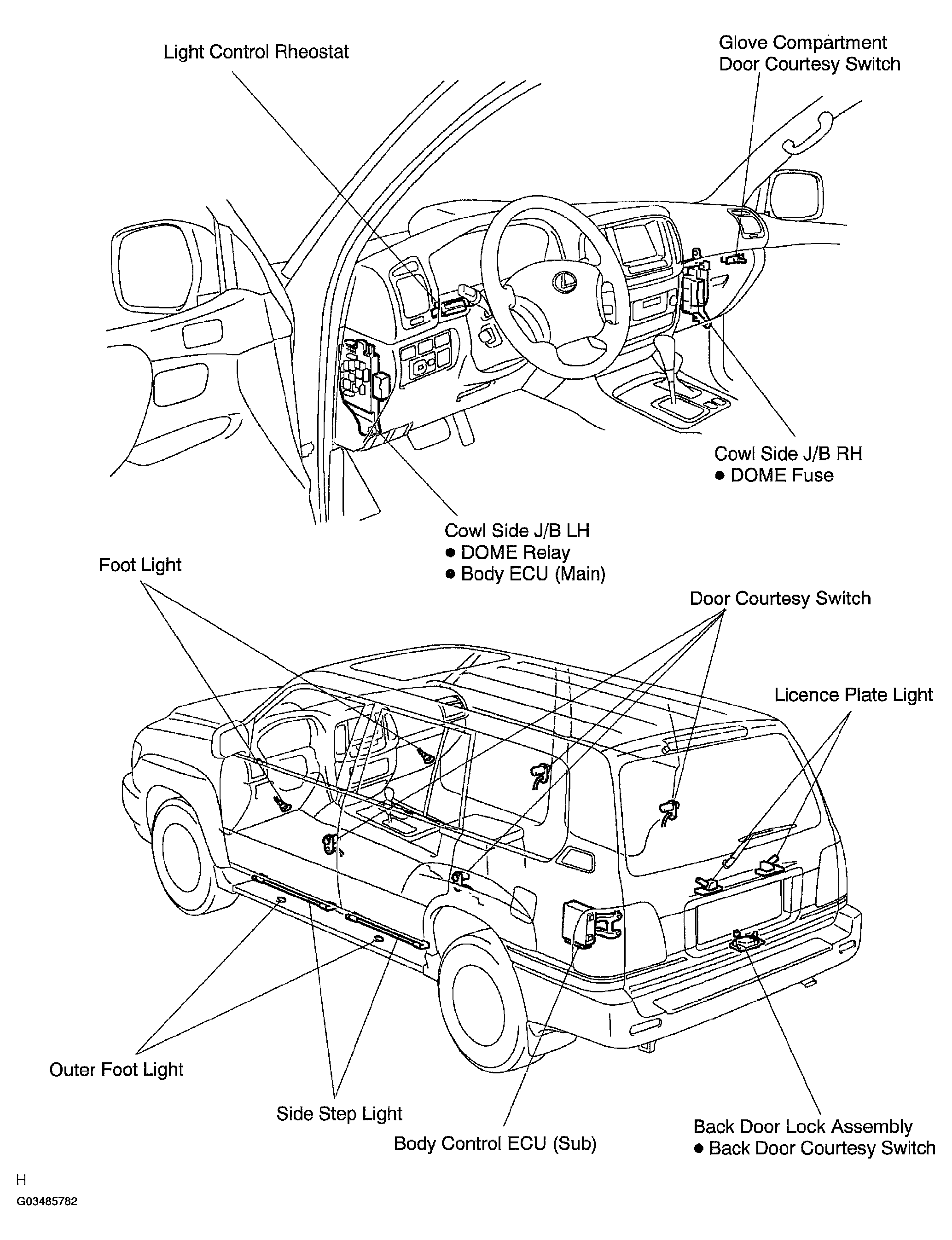

Fig 1: Locating Interior Light System (1 Of 2)
G03485782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

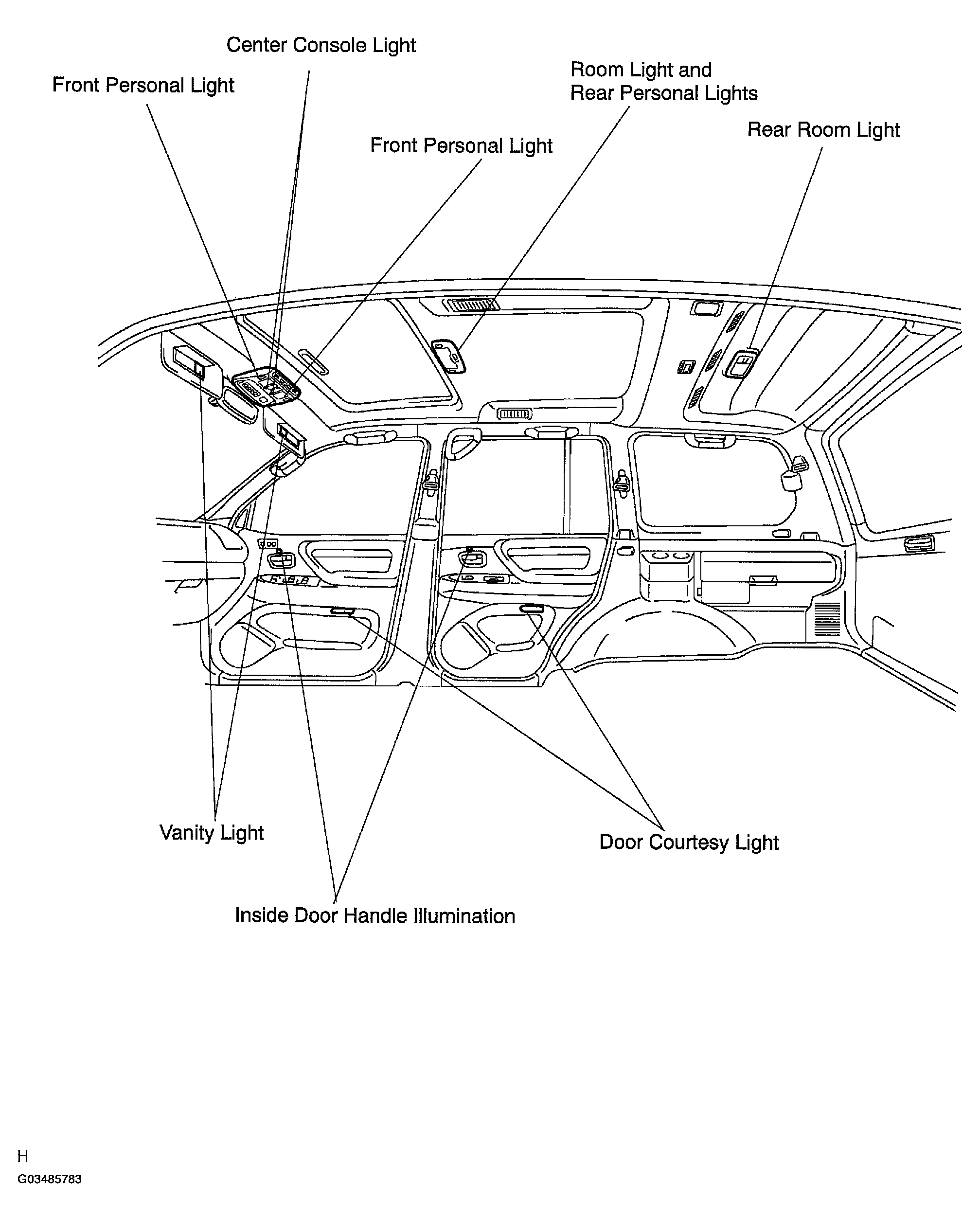

Fig 2: Locating Interior Light System (2 Of 2)
G03485783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
