Section 898 (Introduction)
›
How To Troubleshoot Ecu Controlled Systems
›
How To Proceed With Troubleshooting
›
Circuit Inspection
Circuit Inspection
WARNING:
This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
How to read and use each example is shown below.

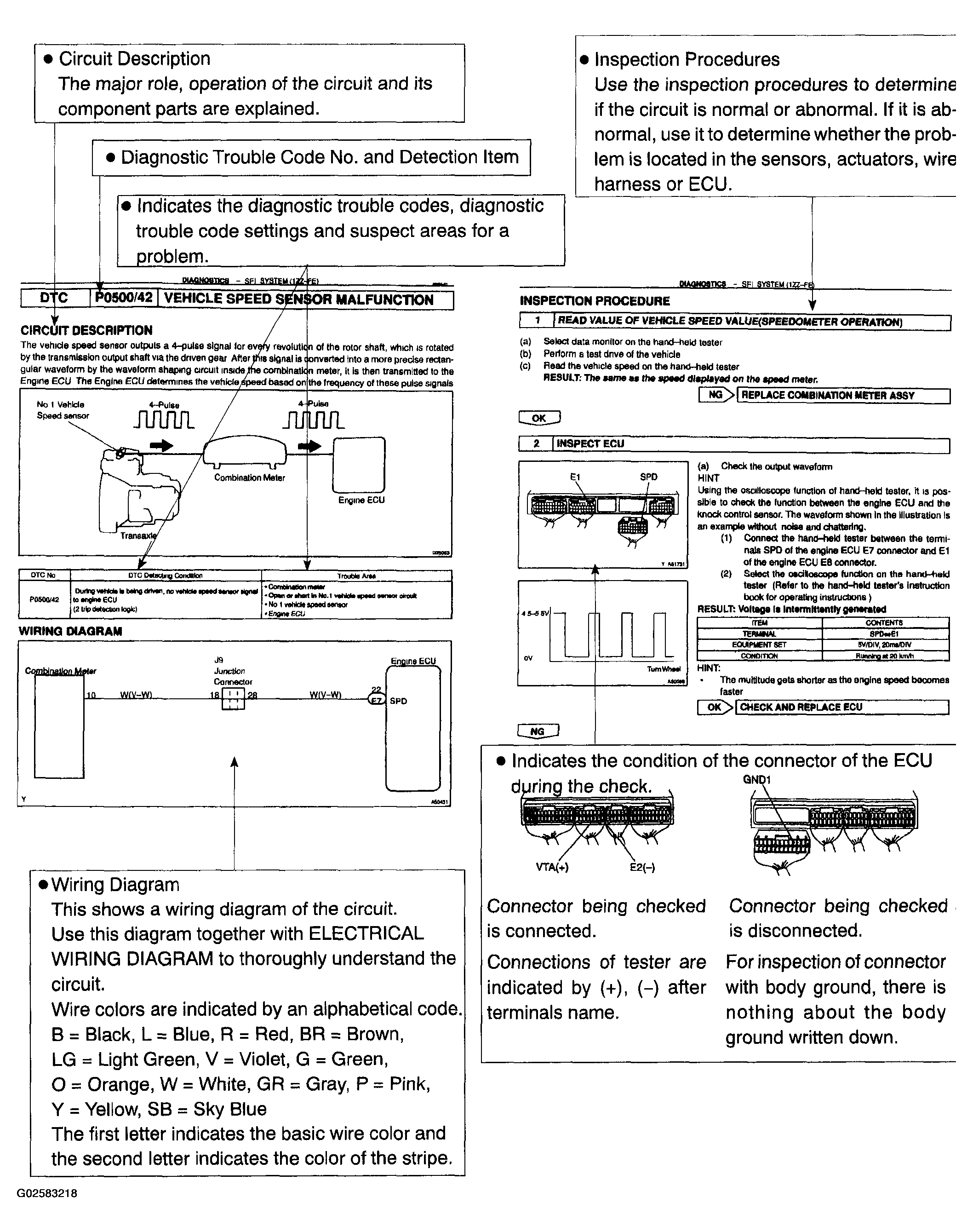

Fig 1: Instructions For Reading Circuit Details
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
