Circuit Description

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

This sensor detects the temperature outside the cabin and sends appropriate signals to the A/C amplifier.

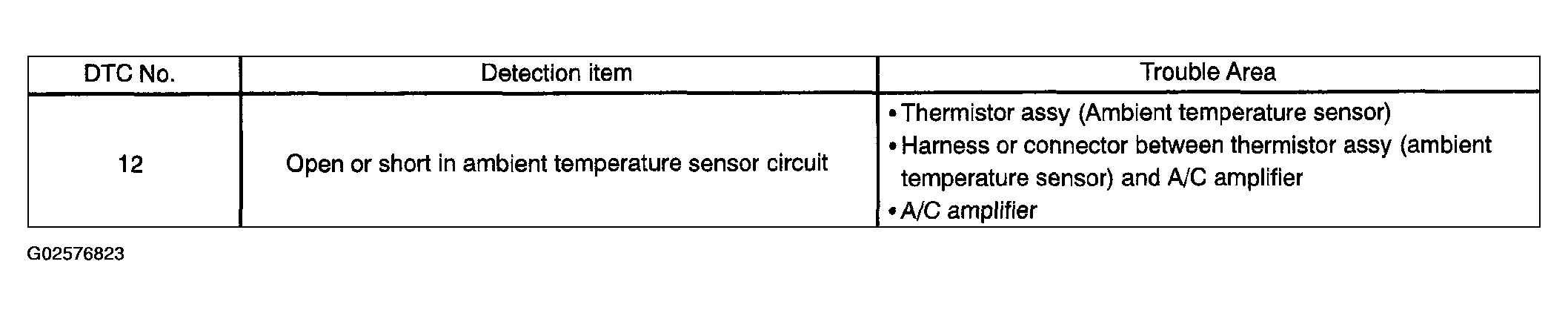

Fig 1: DTC Reference Chart
G02576823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
