Section 909 (Lighting System - Diagnostics): Pre-Check

1. Hook up the hand-held tester to the DLC3.
2. Monitor the ECU data by following the prompts on the tester screen.

   HINT:

   Hand-held tester has a "Snapshot" function which records the monitored data.

   Please refer to the hand-held tester operator's manual for further details.

1. DTCs and freeze frame data will be erased by the hand-held tester operating.

HINT:

According to the DATA LIST displayed by the hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one of the methods to shorten labor time.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to ON.
3. According to the display on tester, read the "DATA LIST".

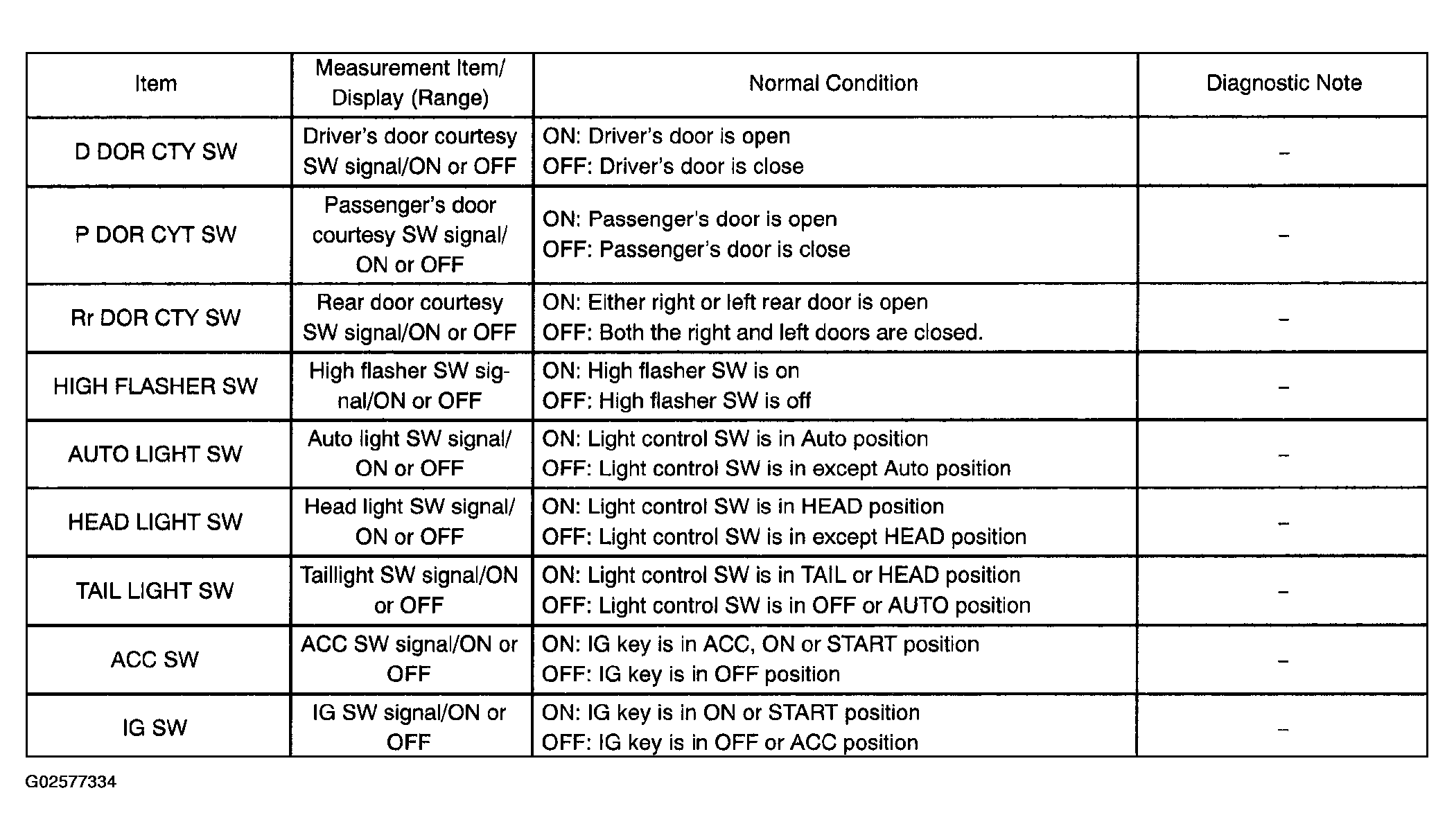

   Fig 1: Identifying Data List

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the ACTIVE TEST using the hand-held tester allows the relay, VSV, actuator and so on to operate without parts removal. Performing the ACTIVE TEST as a first step of troubleshooting is one of the methods to shorten labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. According to the display on tester, perform the "ACTIVE TEST".

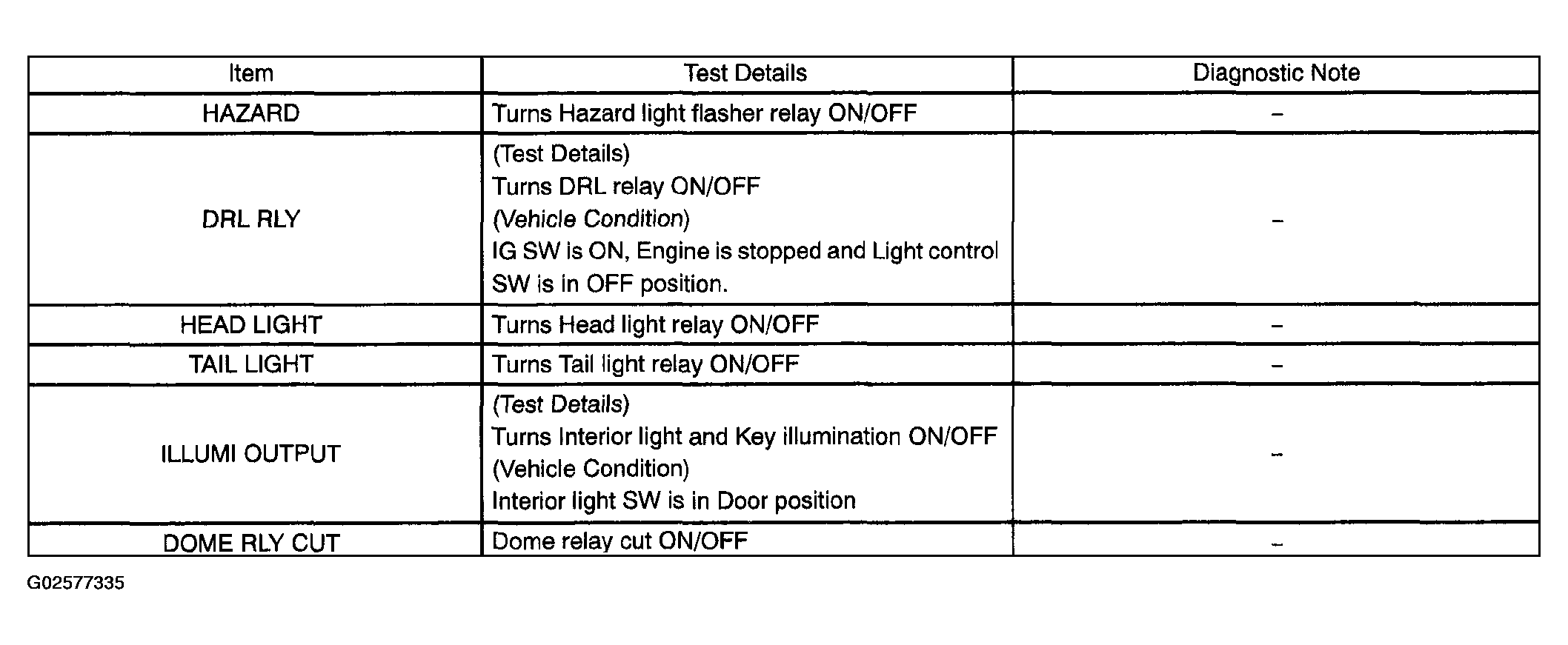

   Fig 2: Identifying Active Test

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. The light that is lit in the illuminated entry system is explained below:
2. Turn the ignition switch to OFF, close all the doors, and set the driver's door in the lock condition.
3. Unlock the door and open any other door, and check that the room light comes on. Close the door, and check that the room light goes off within 15 seconds.
4. Turn the ignition switch to ON, and open and close any other door. Check that the room light immediately goes off.
5. Turn the ignition switch to OFF.
6. Open and close any door to light the room light. Before the room light goes off within 15 seconds, turn the ignition switch to ON, and check that the room light goes off immediately.
7. Turn the ignition switch OFF.
8. Open and close any door to light the room light. Before the light goes off within 15 seconds, lock the driver door. Check that the light goes off immediately.

1. Remove the ignition key and close all doors.
2. Open the driver door to light the room light, and leave it as opened. Check that the light goes off in about 30 min.
3. After the room light goes off, close the driver's door.
4. Open any door except the driver's door to turn the room light on, and then open the driver's door. Check that room light goes off within 30 min. after opening the driver's door.
5. Close all the doors. With the ignition key inserted, open any door to light the room light, and then, remove the ignition key. Check that the room light goes off within 30 min.
6. One of the room lamp switches is on and close all doors.
7. Lock all doors, and check that the room light goes off within 3 sec.

1. Turn the ignition switch to OFF, close all the doors, and set the driver door in the lock condition.
2. Unlock the door and open front or rear doors, and check that the side step lamp comes on. Close the door and check that the side step lamp goes off within 15 seconds.
3. Under the conditions that the ignition switch is ON, one of the front or rear doors opens and the shift range is at any positions except for P positions, check that the side step lamp goes off when the vehicle speed exceeds 8 km/h (4.8 mph).
4. Then, check that the side step lamp comes on when the vehicle speed become 4 km/h (2.4 mph) or less.

1. Turn the ignition switch to ON, and turn the headlamp switch to TAIL or HEAD.
2. Turn the ignition switch to OFF, and open and close the driver's door, check the headlamp goes off within 30 sec.
