  1. Multiplex Network Body Computer

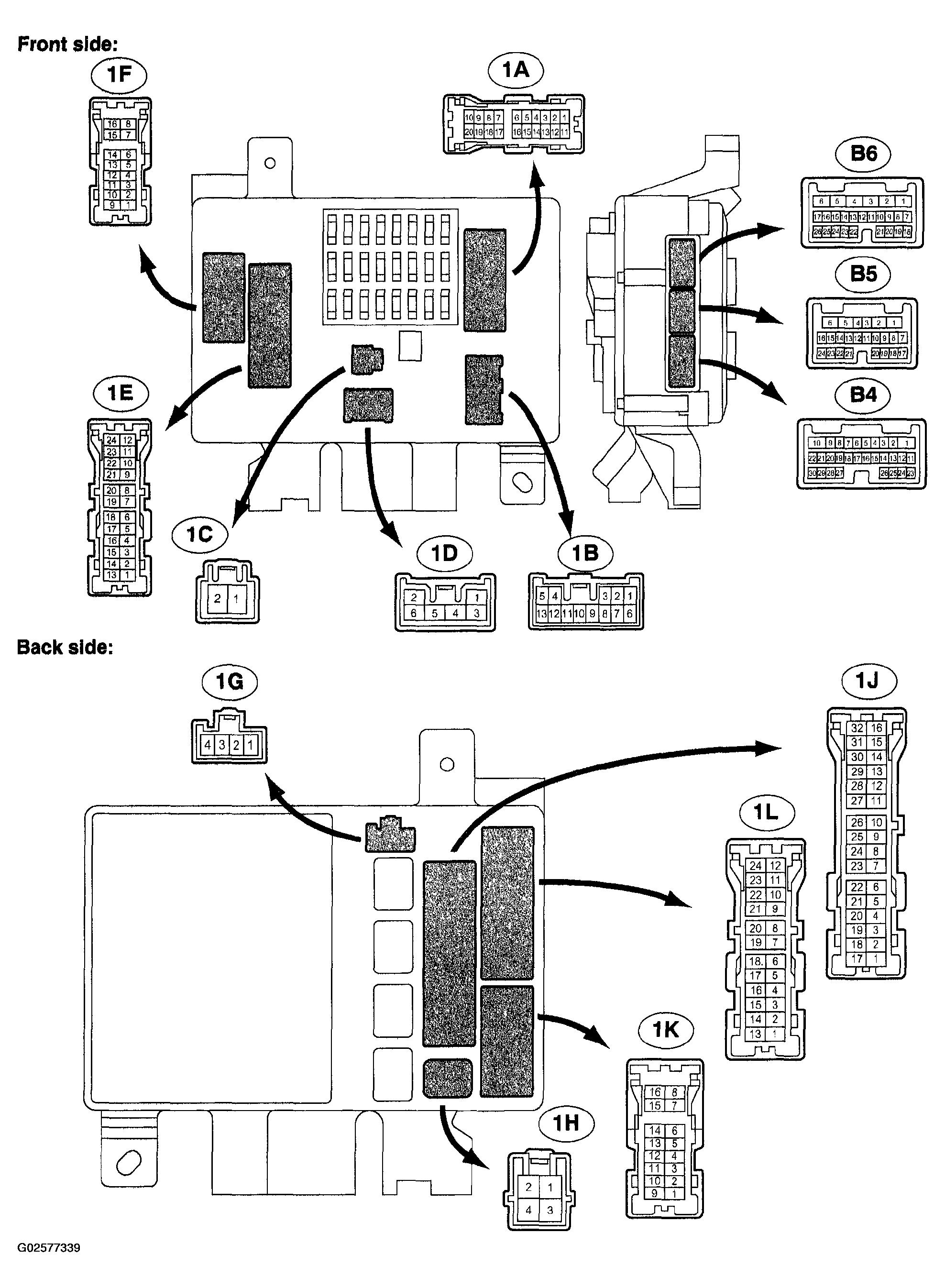

    Fig 1: Identifying Terminals Of ECU (Multiplex Network Body Computer)
    G02577339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

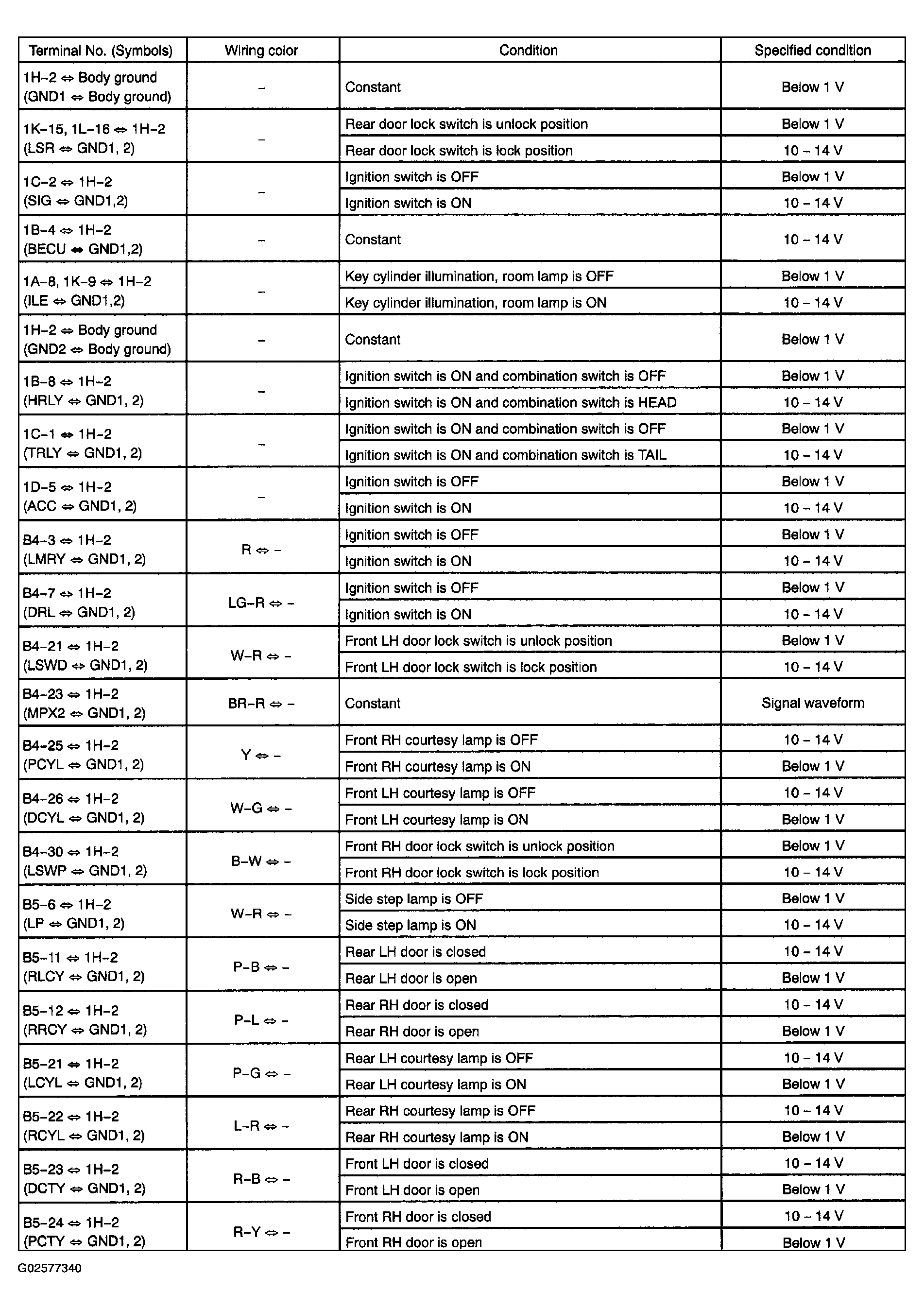

    Fig 2: ECU Terminals Chart (Multiplex Network Body Computer) (1 Of 2)
    G02577340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

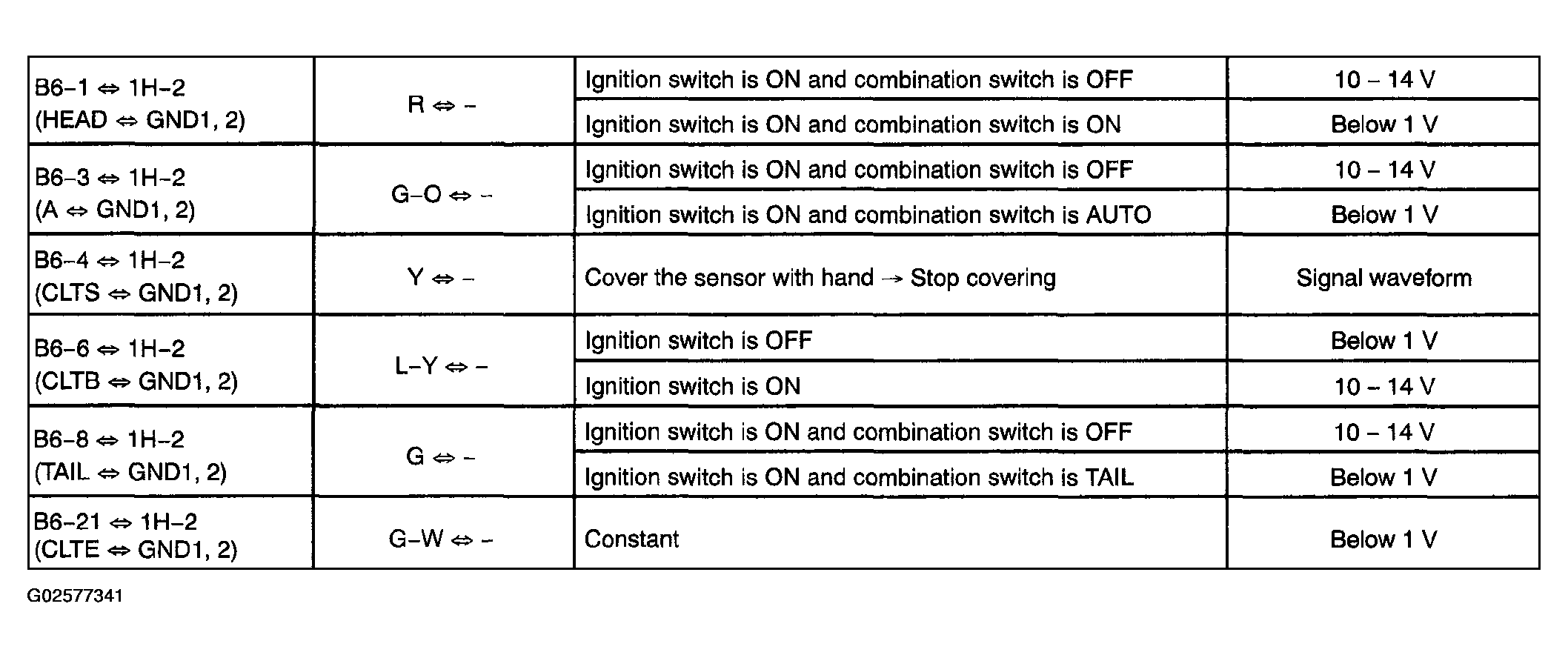

    Fig 3: ECU Terminals Chart (Multiplex Network Body Computer) (2 Of 2)
    G02577341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Multiplex Network Door ECU:

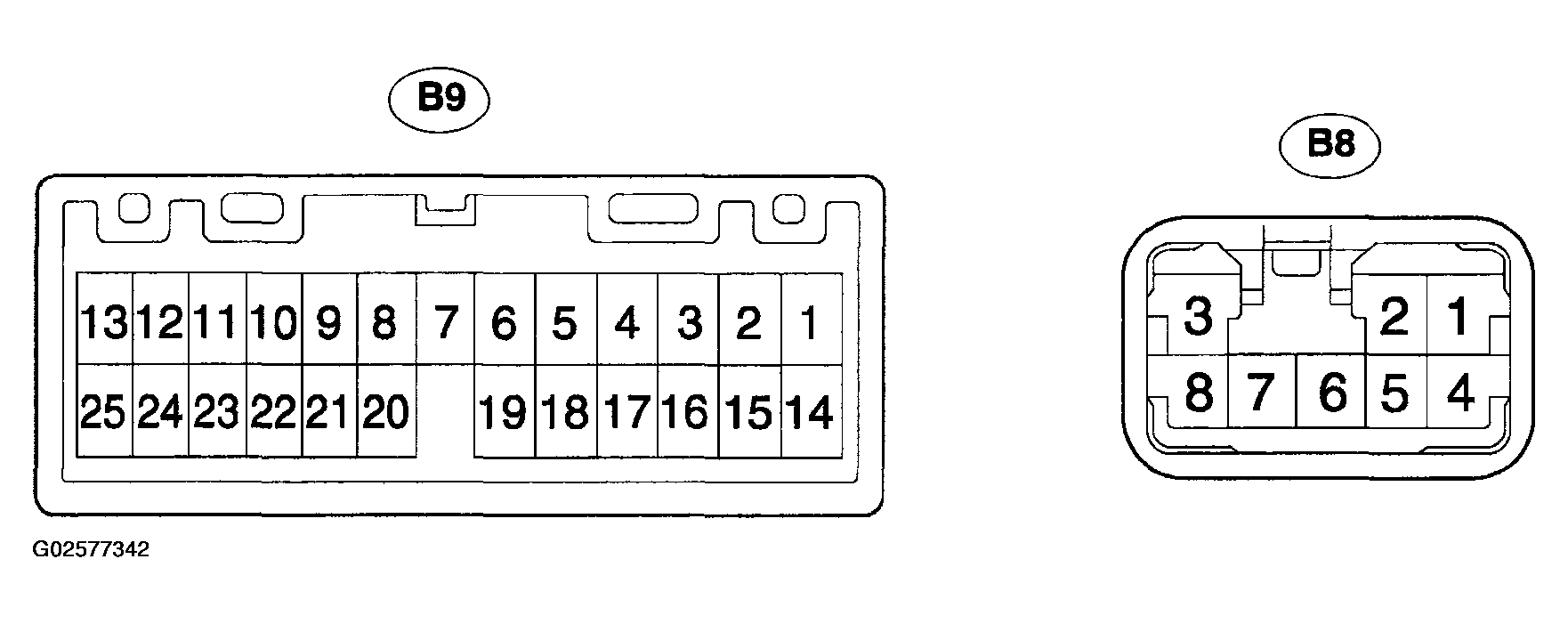

    Fig 4: Identifying Terminals Of ECU (Multiplex Network Door ECU)
    G02577342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

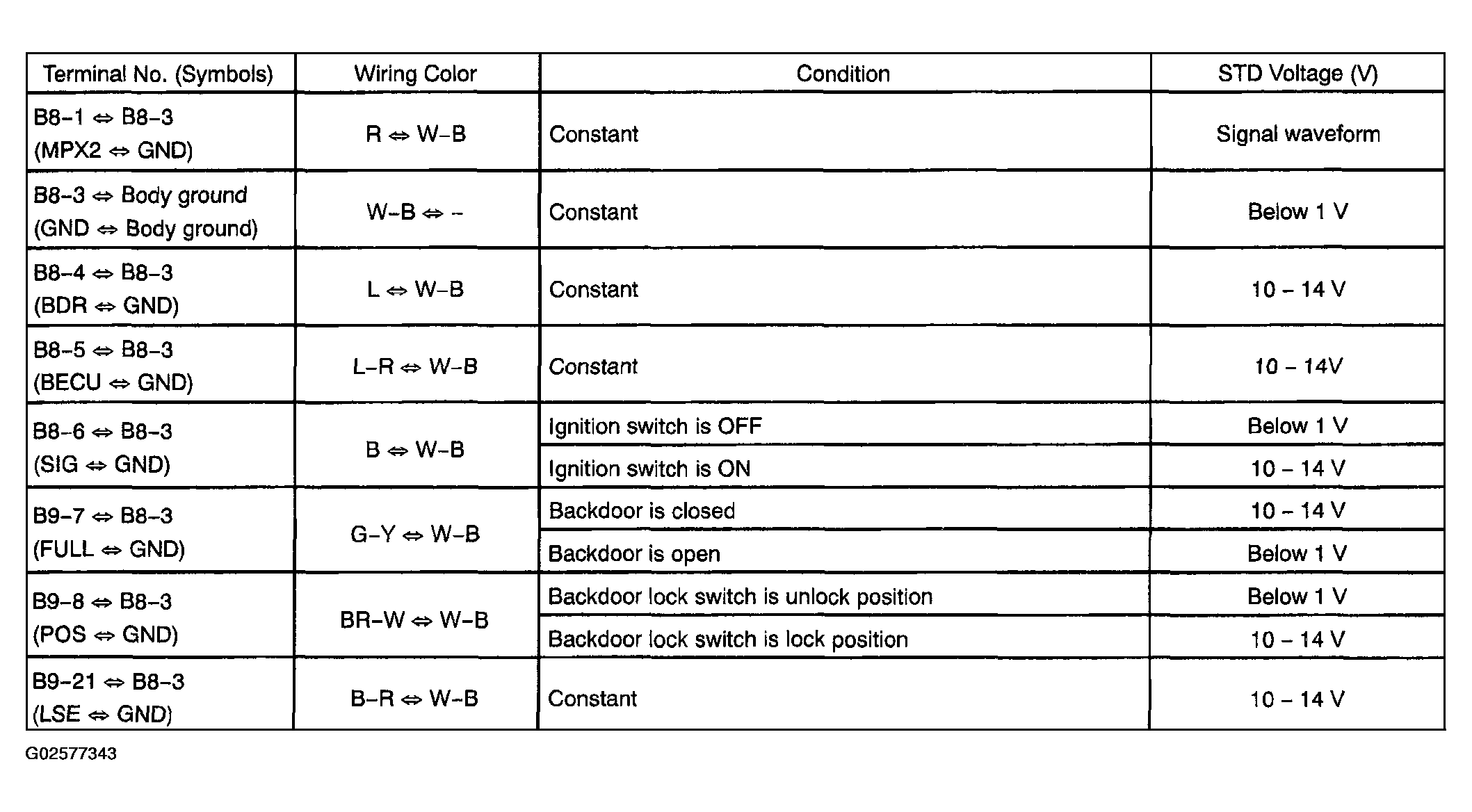

    Fig 5: ECU Terminals Chart (Multiplex Network Door ECU)
    G02577343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
