Front Wheel Alignment: Adjustment

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT TIRE (See  WHEEL AND TIRE SYSTEM  )
  2. MEASURE VEHICLE HEIGHT

    Vehicle height: 2WD Except air suspension:

    NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
    VEHICLE HEIGHT - 2WD EXCEPT AIR SUSPENSION SPECIFICATION

      Front A - B Rear C - D
    UZN210L-GKAGKA 113.6 mm (4.47 in.) 71.7 mm (2.82 in.)
    UZN210L-GKAZKA 113.5 mm (4.47 in.) 72.3 mm (2.85 in.)
    GRN210L-GKPGKA 110.5 mm (4.35 in.) 70.9 mm (2.79 in.)
    GRN210L-GKPZKA 110.4 mm (4.35 in.) 71.3 mm (2.81 in.)

    2WD Air suspension:

    NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
    VEHICLE HEIGHT - 2WD AIR SUSPENSION SPECIFICATION

      Front A - B Rear C - D
    UZN210L-GKAZKA 112.7 mm (4.44 in.) 81.4 mm (3.20 in.)

    4WD Except air suspension:

    NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
    VEHICLE HEIGHT - 4WD EXCEPT AIR SUSPENSION SPECIFICATION

      Front A - B Rear C - D
    UZN215L-GKAGKA 99.9 mm (3.93 in.) 71.6 mm (2.82 in.)
    UZN215L-GKAZKA 99.8 mm (3.93 in.) 72.1 mm (2.84 in.)
    GRN215L-GKPGKA 99.8 mm (3.93 in.) 71.3 mm (2.81 in.)
    GRN215L-GKPZKA 99.8 mm (3.93 in.) 71.9 mm (2.83 in.)

    4WD Air suspension:

    NOTE: Vehicle Model code information in the following chart is available in the MODEL CODE IDENTIFICATION article.
    VEHICLE HEIGHT - 4WD AIR SUSPENSION SPECIFICATION

      Front A - B Rear C - D
    UZN215L-GKAZKA 99.2 mm (3.91 in.) 78.9 mm (3.11 in.)

    Measuring points:

    • Ground clearance of front wheel center
    • Ground clearance of lower suspension arm No. 2 set bolt center
    • Ground clearance of rear wheel center
    • Ground clearance of strut rod set bolt center
    NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

    If the vehicle height is not the specified value, try to adjust it by pushing down on or lifting the body.

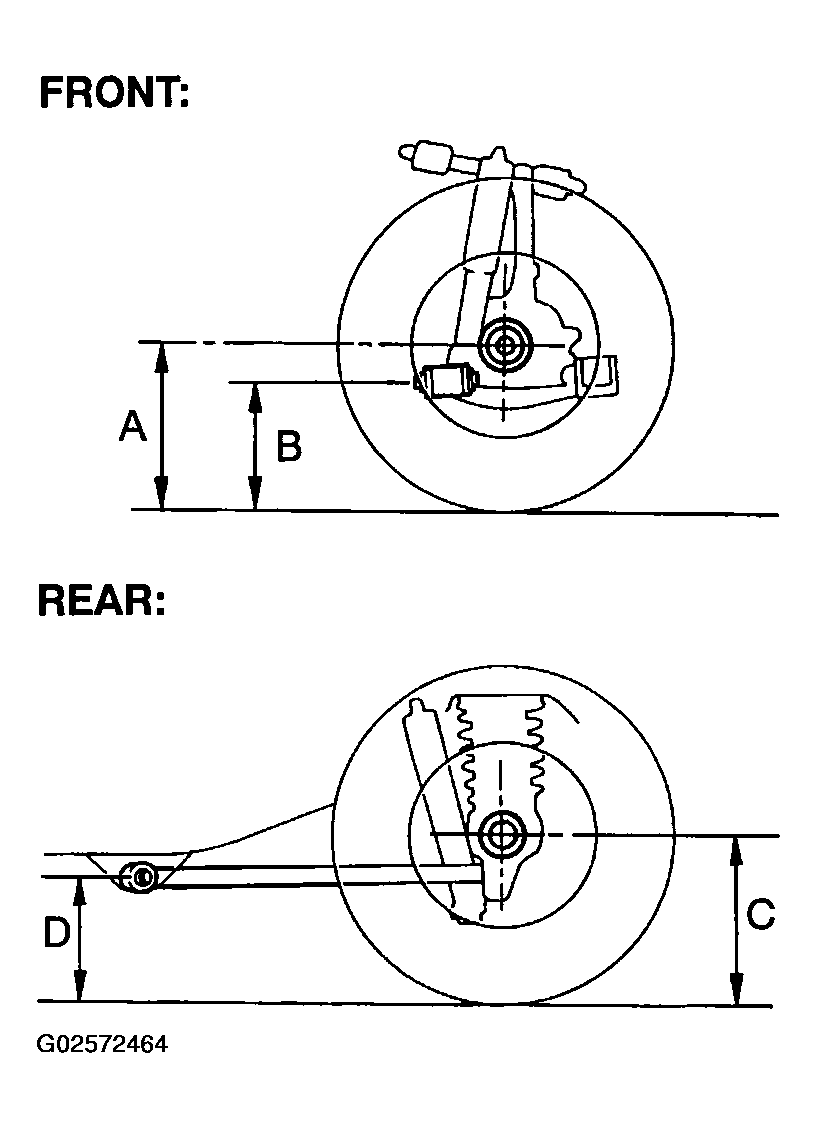

    Fig 1: Measuring Vehicle Height
    G02572464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT TOE-IN

    Toe-in:

    TOE-IN SPECIFICATION

    Toe-in
    (total)    		 A + B 0°05' +/- 0°10' (0.08° +/- 0.16°)
    C - D: 1 +/- 2 mm (0.04 +/- 0.08 in.)
    Fig 2: Inspecting Toe-In
    G02572465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the toe-in is not within the specified value, adjust it at the rack ends.

  4. ADJUST TOE-IN
    1. Remove the rack boot set clips.
    2. Loosen the tie rod end lock nuts.
    3. Turn the right and left rack ends by an equal amount to adjust the toe-in.

      HINT: Try to adjust the toe-in to the center of the specified value.

    4. Make sure that the lengths of the right and left rack ends are the same.

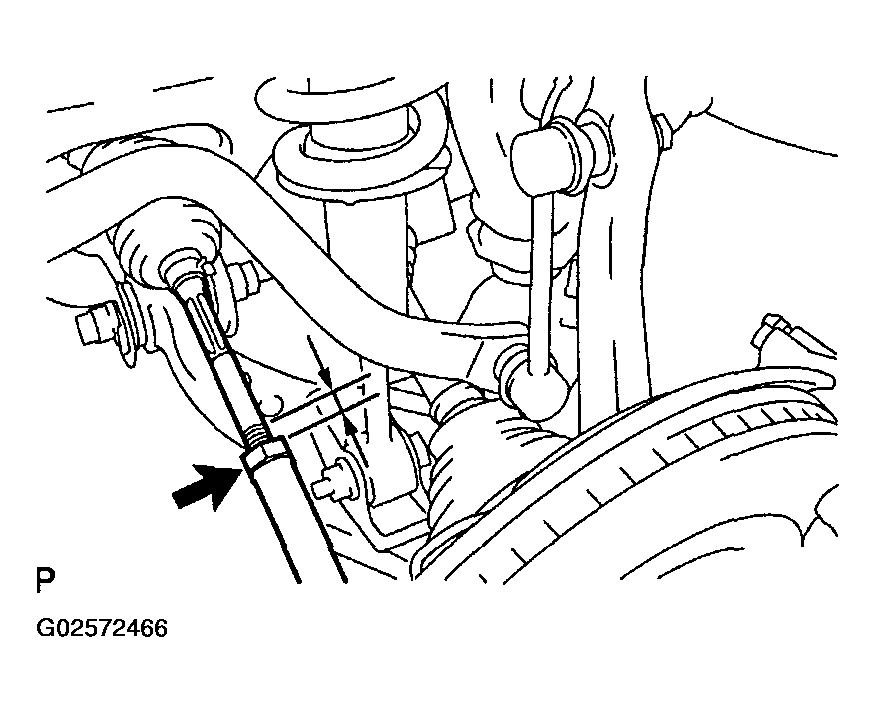

      Fig 3: Making Sure Lengths Of Right And Left Ends Are Same
      G02572466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Torque the tie rod end lock nuts.

      Torque: 88 N.m (897 kgf.cm, 65 ft.lbf)

    6. Place the boots on the seats and install the clips.

      HINT: Make sure that the boots are not twisted.

    7. Perform VSC system calibration
  5. INSPECT WHEEL ANGLE
    1. Turn the steering wheel fully, and measure the turning angle.

    Wheel angle:

    2WD

    WHEEL ANGLE - 2WD

    Inside wheel 37°00' (35°00' - 38°00')
    37.00° (35.00° - 38.00°)
    Outside wheel (Reference) 32° 30'
    32.50°

    4WD:

    WHEEL ANGLE - 4WD

    Inside wheel 36°40' (34° 40' - 37° 40')
    36.67° (34.67° - 37.67°)
    Outside wheel (Reference) 32° 53'
    32.88°

    If the wheel angles differ from the standard of the specification, inspect the toe-in.

    Fig 4: Inspecting Wheel Angle
    G02572467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
    1. Install the camber-caster-kingpin gauge or position vehicle on wheel alignment tester.
    2. Inspect the camber, the caster and the steering axis inclination.

    Camber, caster and steering axis inclination:

    2WD Except air suspension:

    CASTER AND STEERING AXIS INCLINATION

    Camber
    Right-left error    		 -0° 28' +/- 45' (-0.47° +/- 0.75°) 45' (0.75°) or less
    Caster
    Right-left error    		 3° 23' +/- 45' (3.38° +/- 0.75°) 45' (0.75°) or less
    Steering axis inclination
    Right-left error    		 12° 58' +/- 45' (12.97° +/- 0.75°) 45' (0.75°) or less
    Fig 5: Inspecting Camber, Caster And Steering Axis Inclination
    G02572468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    2WD Air suspension:

    CASTER AND STEERING AXIS INCLINATION - 2WD AIR SUSPENSION

    Camber
    Right-left error    		 -0° 30' +/- 45' (-0.50° +/- 0.75°) 45' (0.75°) or less
    Caster
    Right-left error    		 3°33' +/- 45' (3.55° +/- 0.75°) 45' (0.75°) or less)
    Steering axis inclination
    Right-left error    		 13°00' +/- 45' (13.00° +/- 0.75°) 45' (0.75°) or less

    4WD Except air suspension:

    CASTER AND STEERING AXIS INCLINATION - 4WD EXCEPT AIR SUSPENSION:

    Camber
    Right-left error    		 -0°09' +/- 45' (-0.15° +/- 0.75°) 45' (0.75°) or less
    Caster
    Right-left error    		 3°13' +/- 45' (3.22° +/- 0.75°) 45' (0.75°) or less
    Steering axis inclination
    Right-left error    		 12°39' +/- 45' (12.65° +/- 0.75°) 45' (0.75°) or less

    4WD Air suspension:

    CASTER AND STEERING AXIS INCLINATION - 4WD AIR SUSPENSION

    Camber
    Right-left error    		 -0°10' +/- 45' (-0.17° +/- 0.75°) 45' (0.75°) or less
    Caster
    Right-left error    		 3° 22' +/- 45' (3.37° +/- 0.75°) 45' (0.75°) or less
    Steering axis inclination
    Right-left error    		 12°40' +/- 45' (12.67° +/- 0.75°) 45' (0.75°) or less

    If the steering axis inclination is not as specified after camber and caster have been correctly adjusted, recheck the steering knuckle and front wheel for distortion or looseness.

  7. ADJUST CAMBER AND CASTER
    NOTE: After the camber has been adjusted, inspect the toe-in.
    1. Loosen the nut and bolt.
    2. Turn the camber adjust cam No. 2 and toe adjust plate No. 2 in the circumference direction, and adjust the camber and the caster.

      HINT: Try to adjust the camber and caster to the center value.

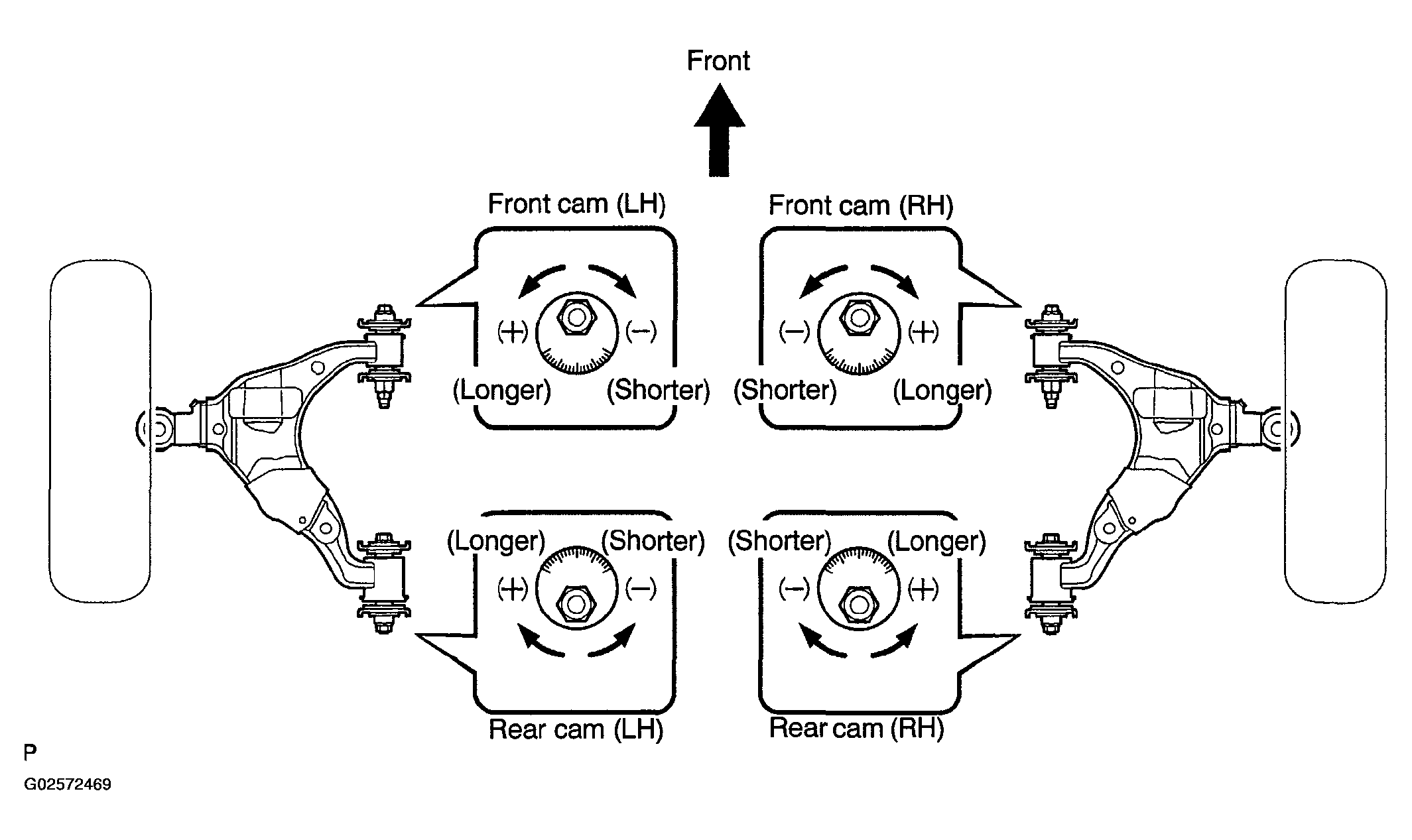

      Fig 6: Adjusting Camber And Caster
      G02572469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. How to read adjustment chart (using examples).
      1. Measure the present alignment.
        • Camber: 0° 15' (0.25°)
        • Caster: 2° 45' (2.75°)
      2. Make the difference between the standard value (A) and the measured value (B) on the adjustment chart.

        Standard value:

        • Camber: 0° 35' (0.58°)
        • Caster: 2° 55' (2.92°)

        Formula: B - A = C

        • Camber: 0° 15' - (0° 35') = - 0°20'
        • Caster: 2° 45' - (2° 55') = - 0° 10'

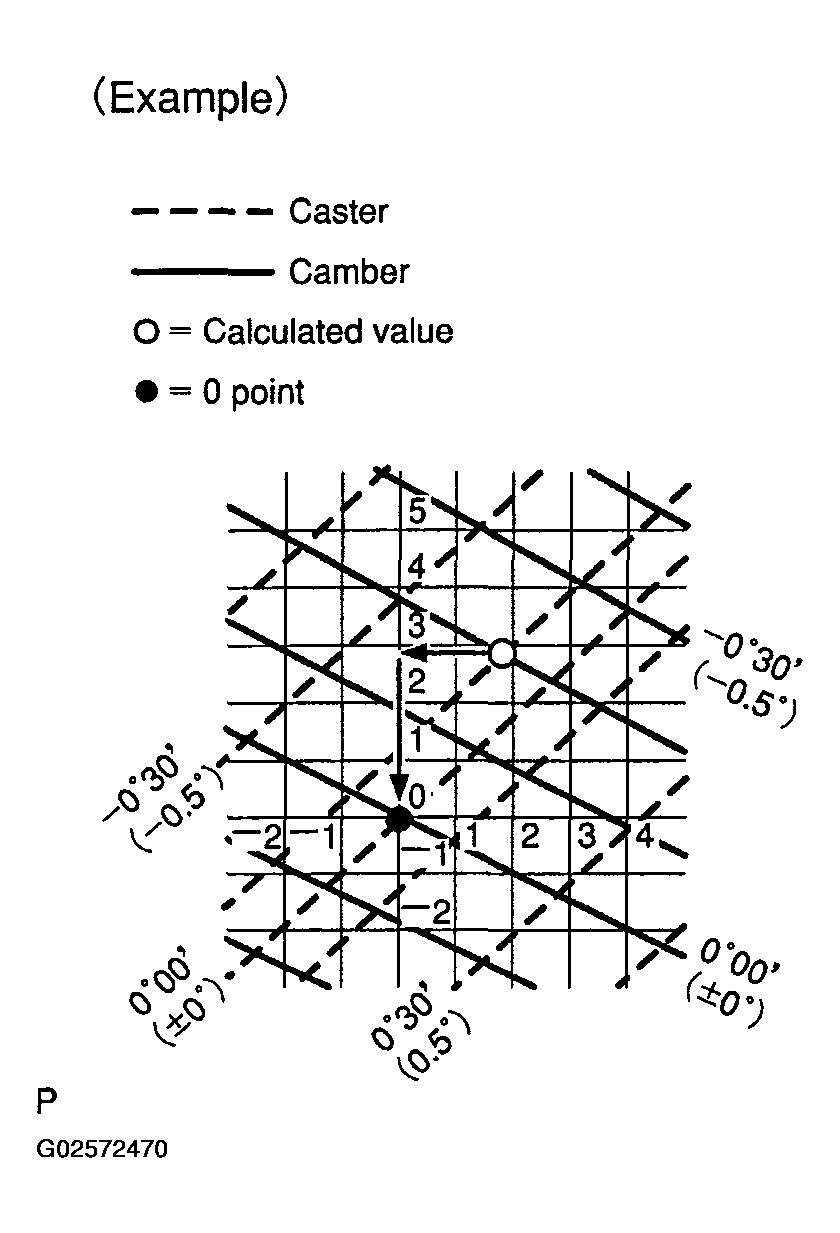

        Fig 7: Example Of Adjustment Chart
        G02572470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. As shown in Fig 8 , read the distance from the marked point to 0 point, and adjust the front and/or rear adjusting cams accordingly.

        Toe adjust cam: - (Shorter) 2.8

        Camber adjust cam: - (Shorter) 1.8

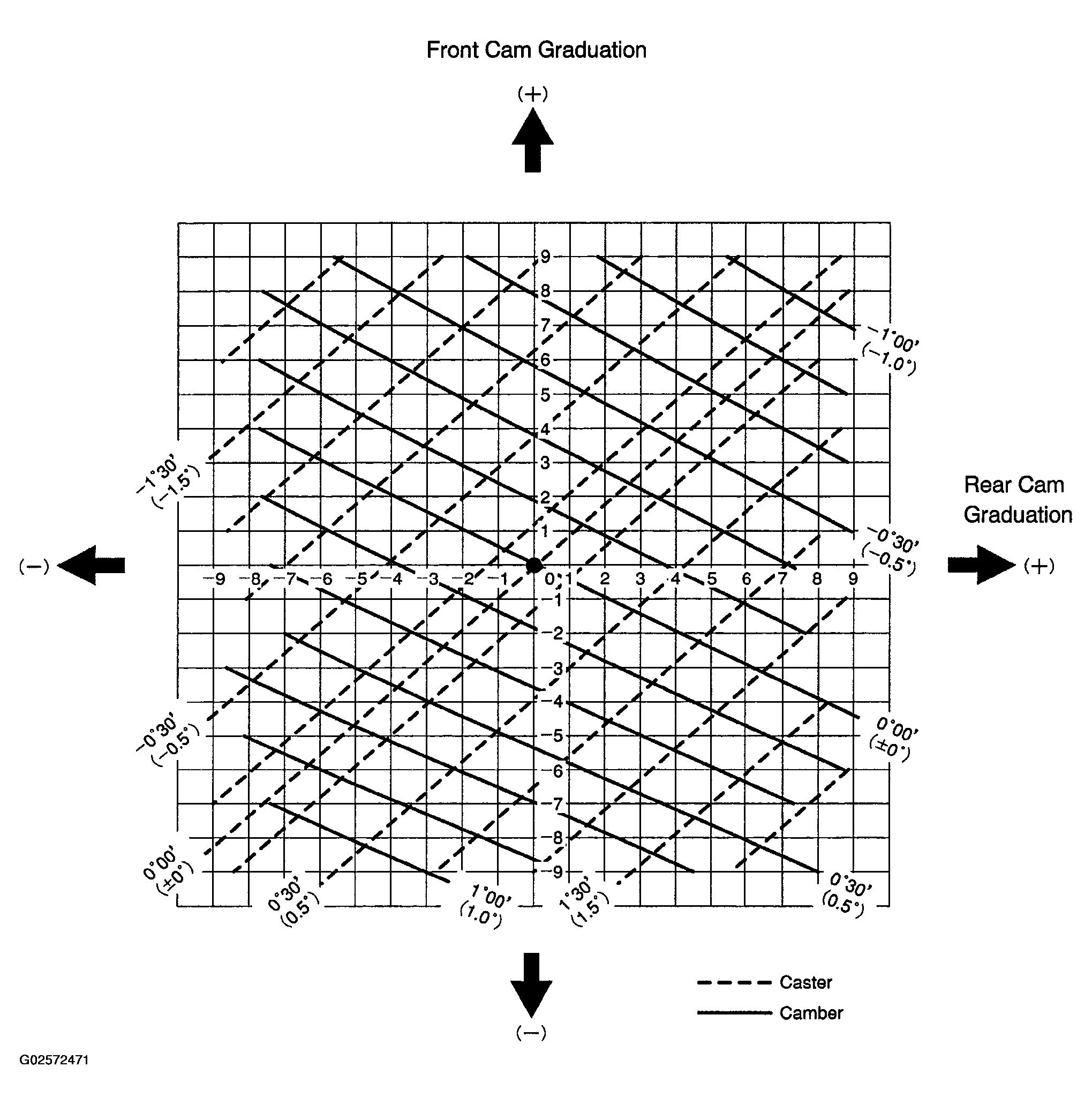

      Fig 8: Adjusting Front And/Or Rear Adjusting Cams
      G02572471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
