Speed Sensor Front LH: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Replacement of RH side is same as that of LH side.

REMOVE FRONT WHEEL
REMOVE SPEED SENSOR FRONT LH
1. Disconnect the speed sensor connector.

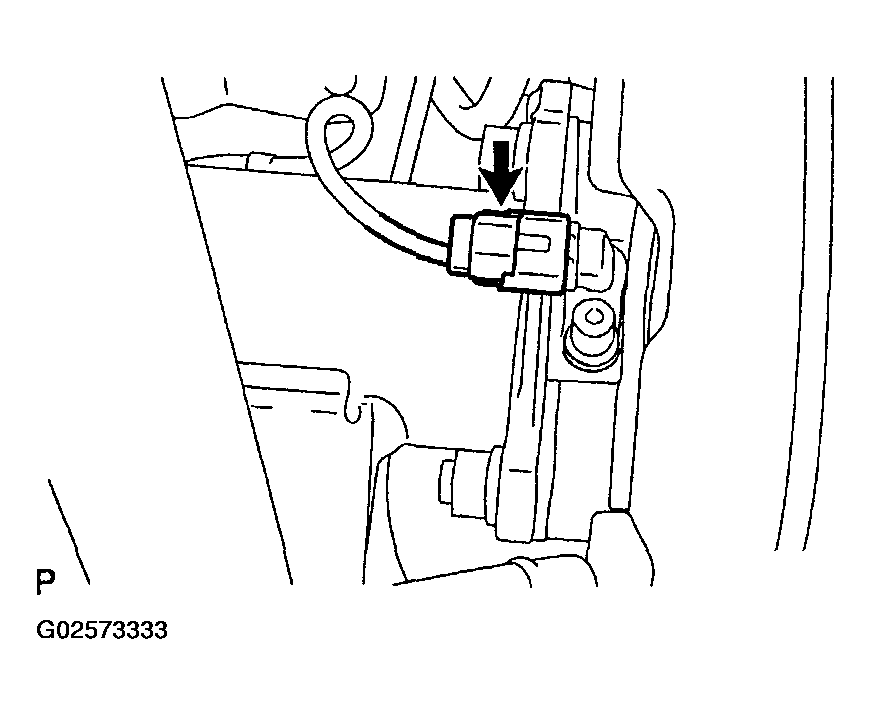

  Fig 1: Disconnecting Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a hexagon wrench (5 mm), remove the bolt and front speed sensor from the steering knuckle.
  NOTE:
  - Do not stick and foreign matter on the sensor tip.
  - Do not let the foreign matter into the sensor installation hole.
  SST 99999-60011
Fig 2: Removing Front Speed Sensor From Steering Knuckle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPEED SENSOR FRONT LH
1. Using a hexagon wrench (5 mm), install the front speed sensor with the bolt to the steering knuckle.
  Torque: 8.3 N.m (85 kgf.cm, 73 in..lbf)

  NOTE: Make sure the sensor tip is clean.

  Fig 3: Installing Front Speed Sensor To Steering Knuckle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the speed sensor connector.
  SST 99999-60011
Fig 4: Connecting Speed Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL
Torque: 110 N.m (1,122 kgf.cm, 81 ft.lbf)
CHECK VSC SENSOR SIGNAL (See TEST MODE PROCEDURE )
