Headlamp Dimmer Switch ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COVER, STEERING COLUMN, LWR (See  OVERHAUL  )
  2. REMOVE COVER, STEERING COLUMN, UPR (See  OVERHAUL  )
  3. REMOVE HEADLAMP DIMMER SWITCH ASSY
    1. Disconnect the connector.
    2. Remove the 2 screws and headlamp dimmer switch assy.

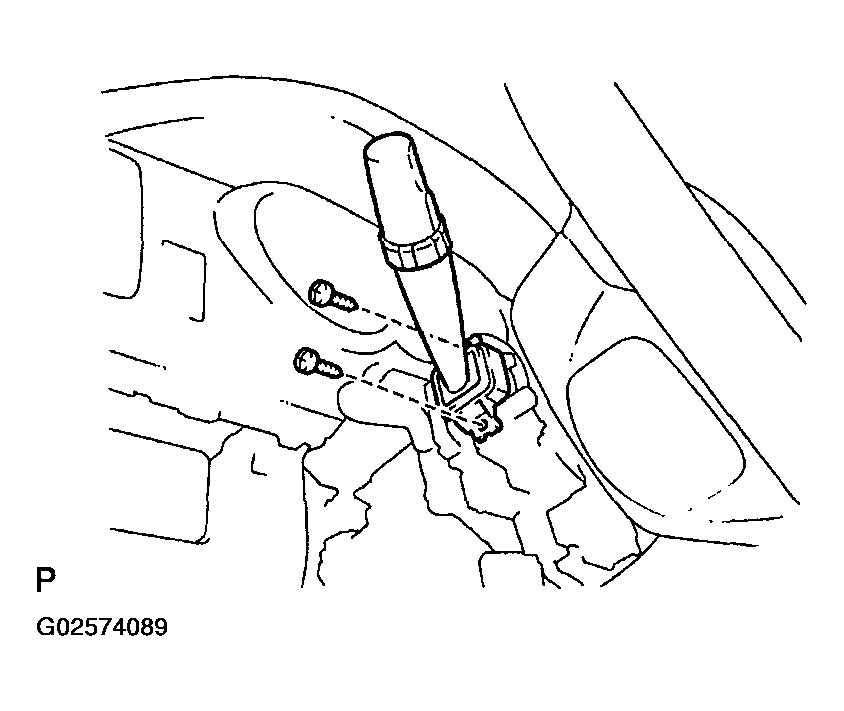

    Fig 1: Removing Headlamp Dimmer Switch Assy
    G02574089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL COVER, STEERING COLUMN, UPR (See  OVERHAUL  )
  5. INSTALL COVER, STEERING COLUMN, LWR (See  OVERHAUL  )
