Audio & Visual System: Components

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

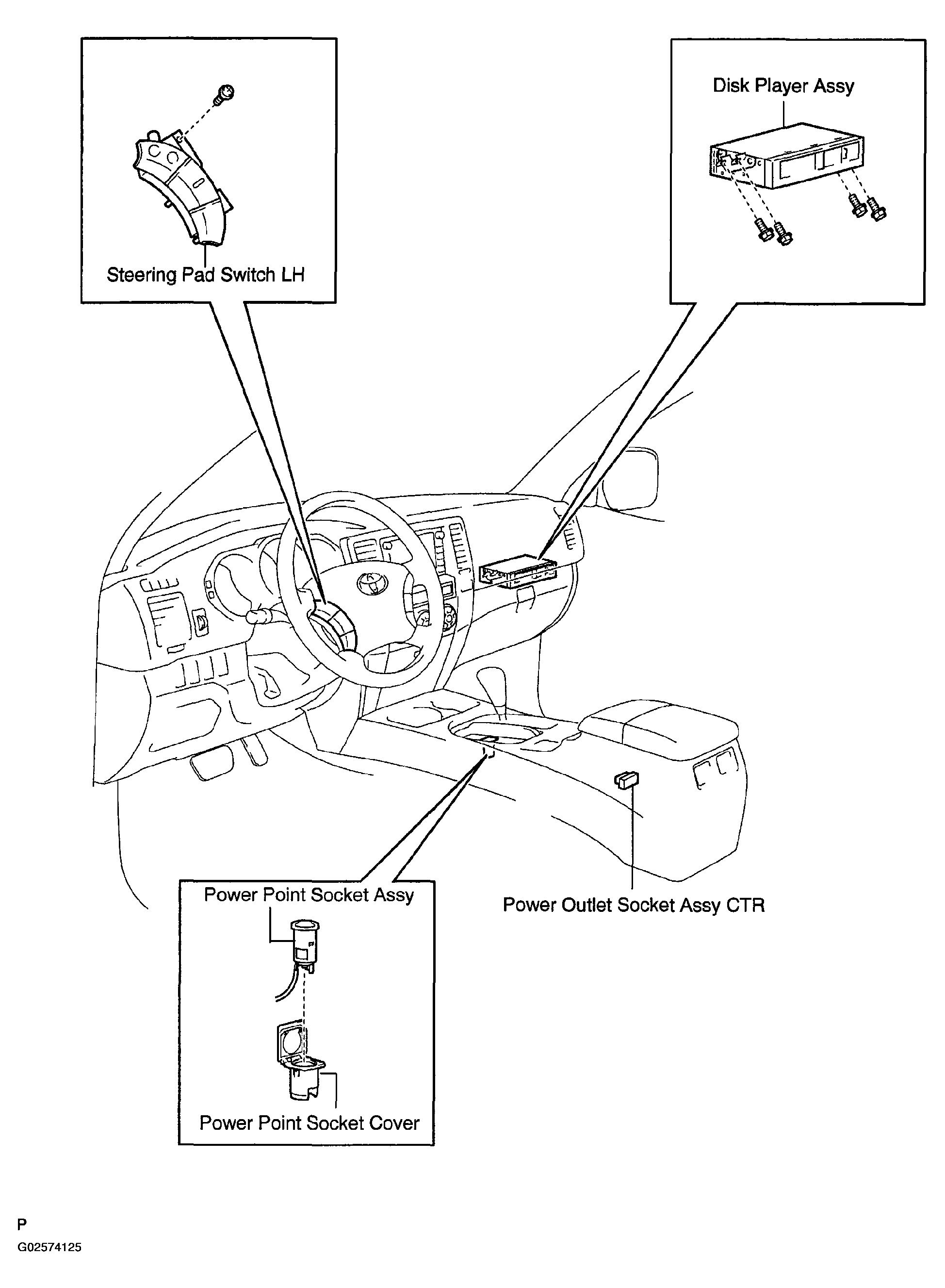

Fig 1: Locating Audio & Visual System Component (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

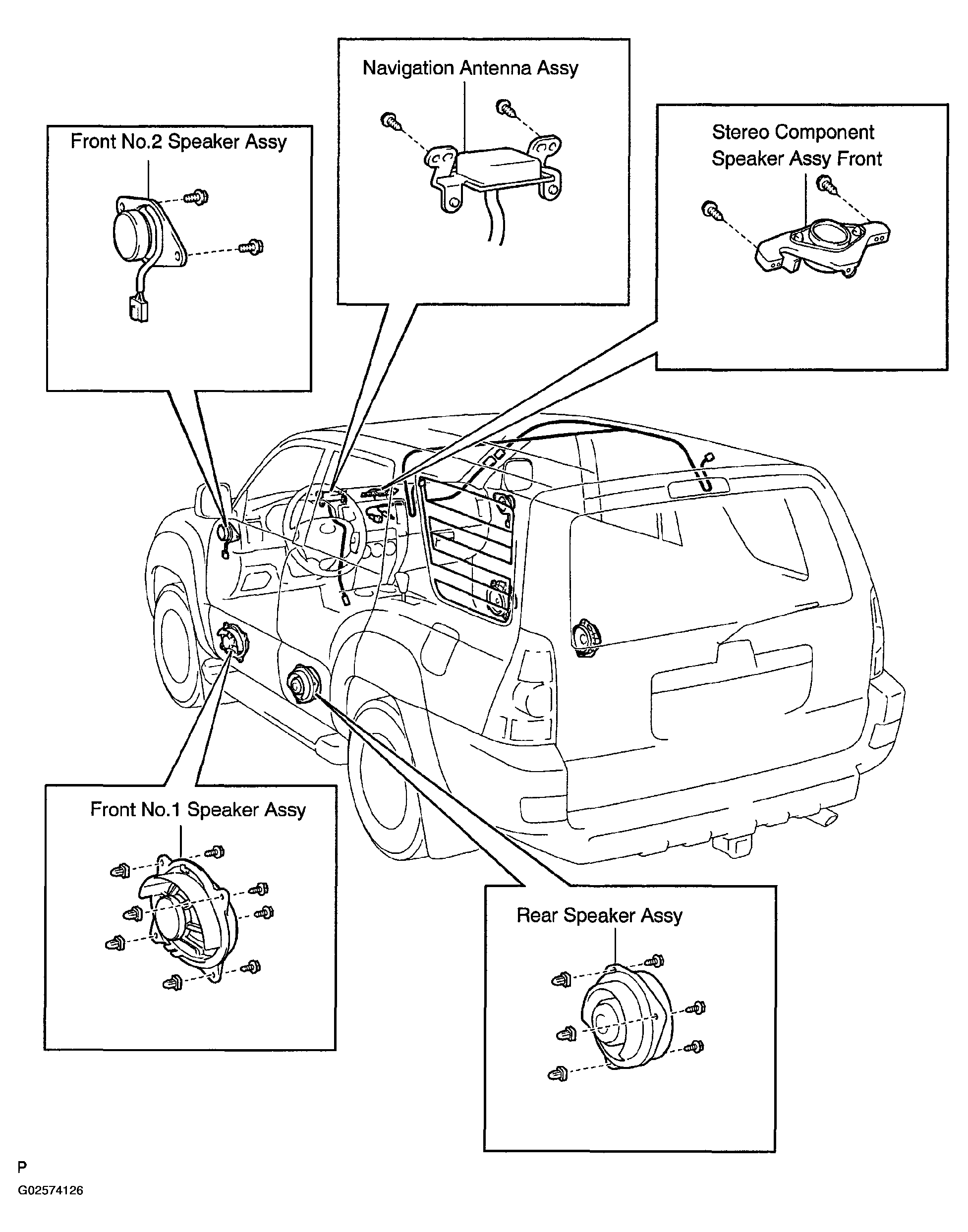

Fig 2: Locating Audio & Visual System Component (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

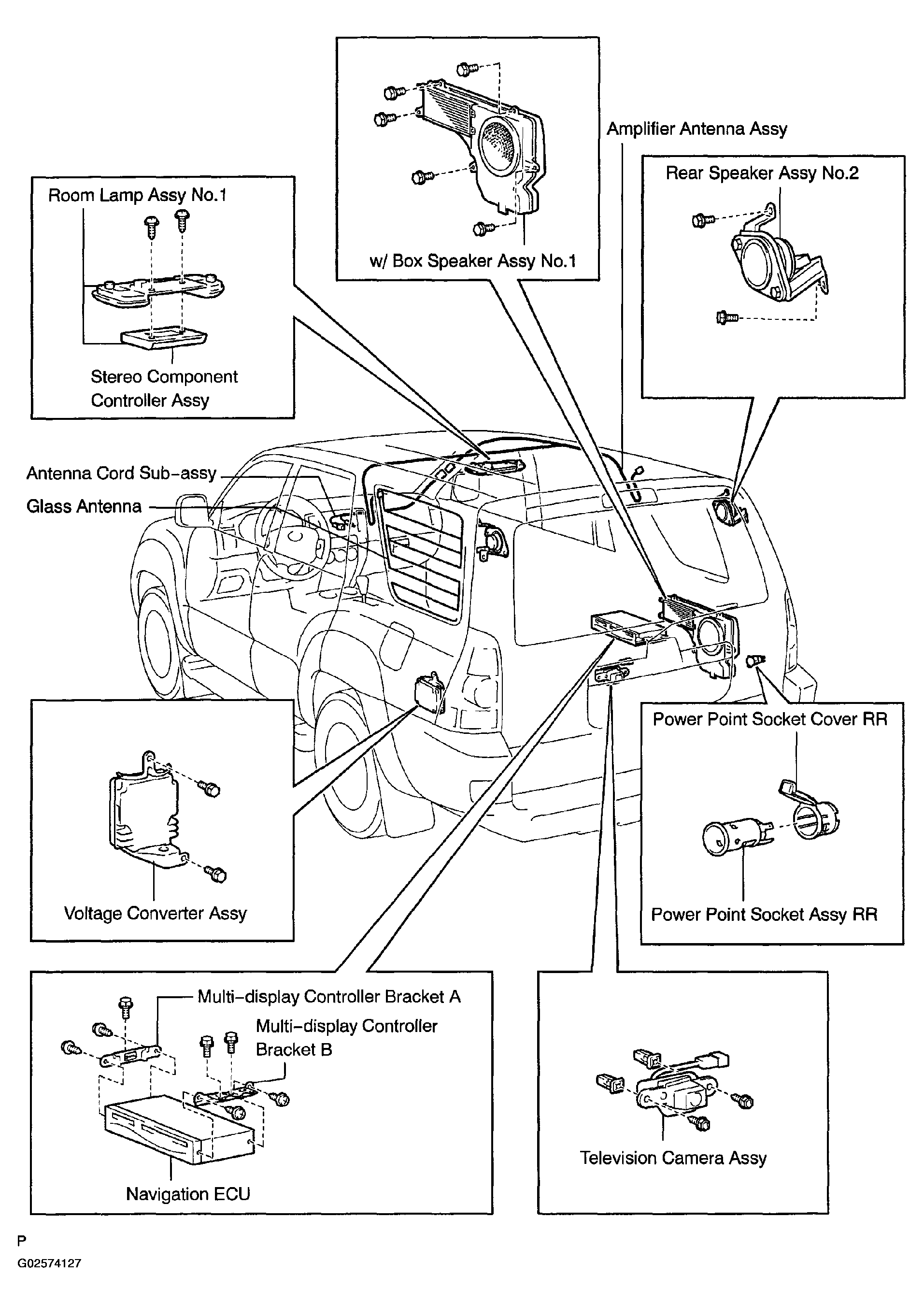

Fig 3: Locating Audio & Visual System Component (3 Of 4)

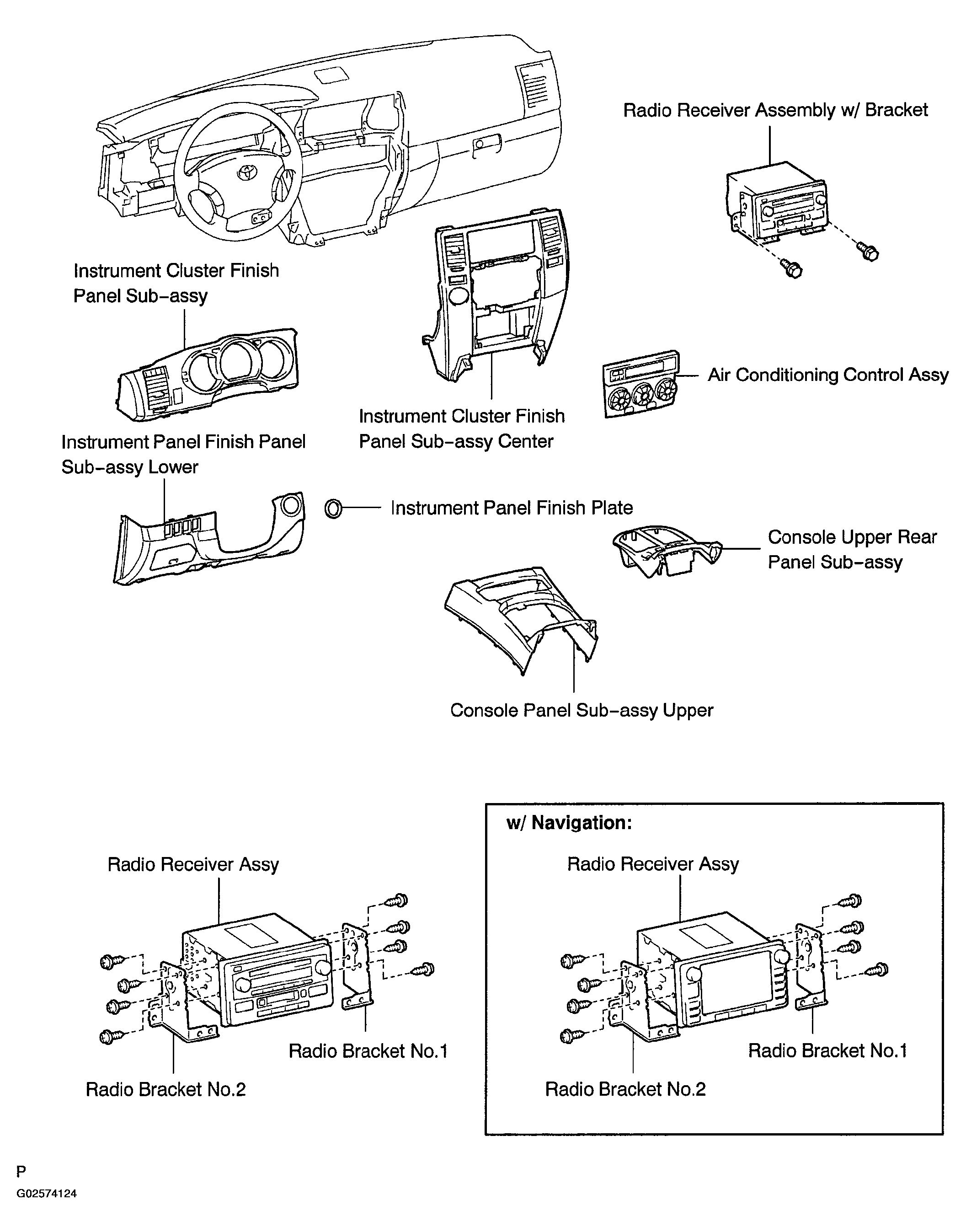

Fig 4: Locating Audio & Visual System Component (4 Of 4)
