Fuel Injector ASSY (1GR-FE): Components

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

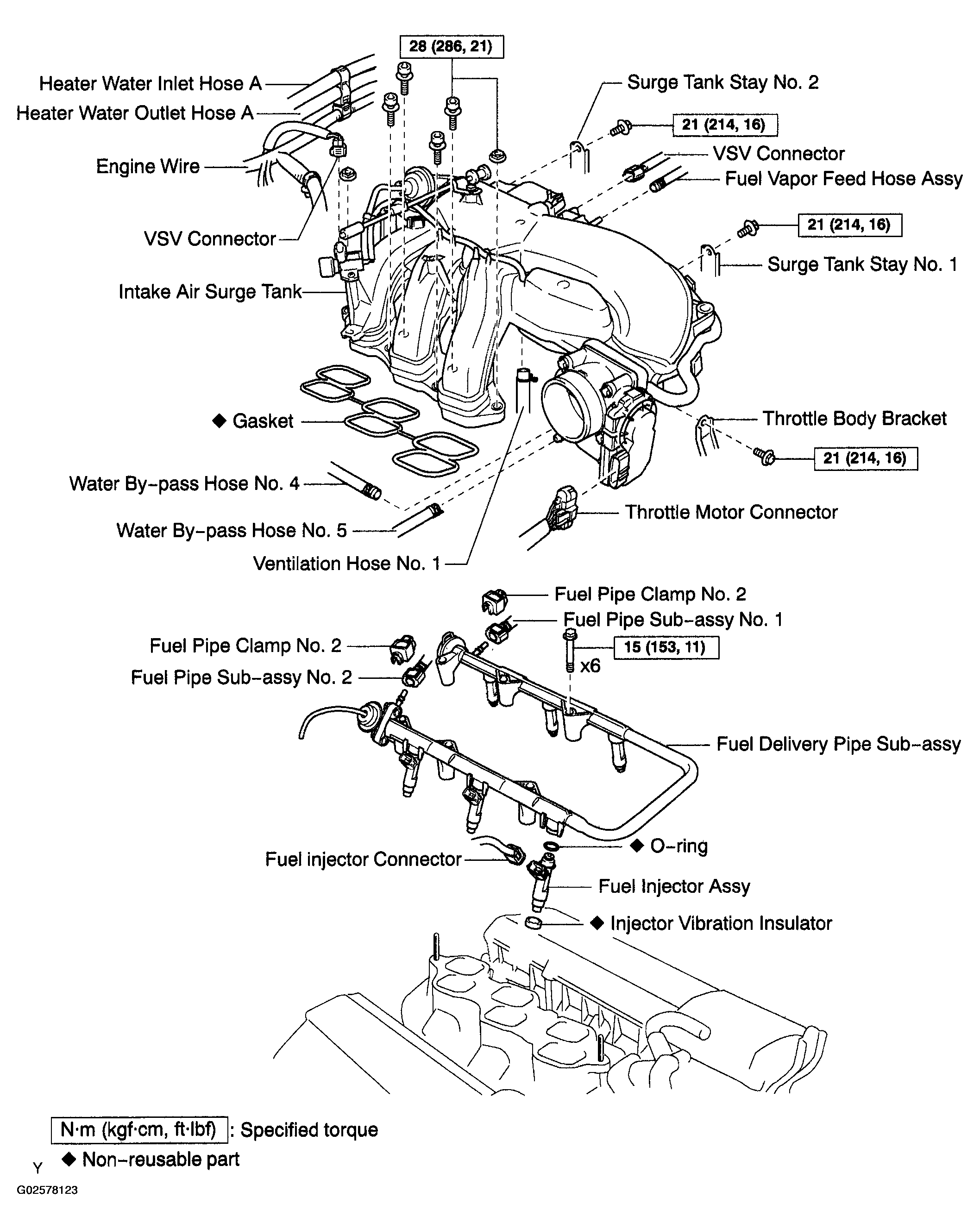

Fig 1: Identifying Fuel Injector Components Assy (1GR-FE) (1 Of 2)
