Pattern Select Switch Circuit: Wiring Diagram

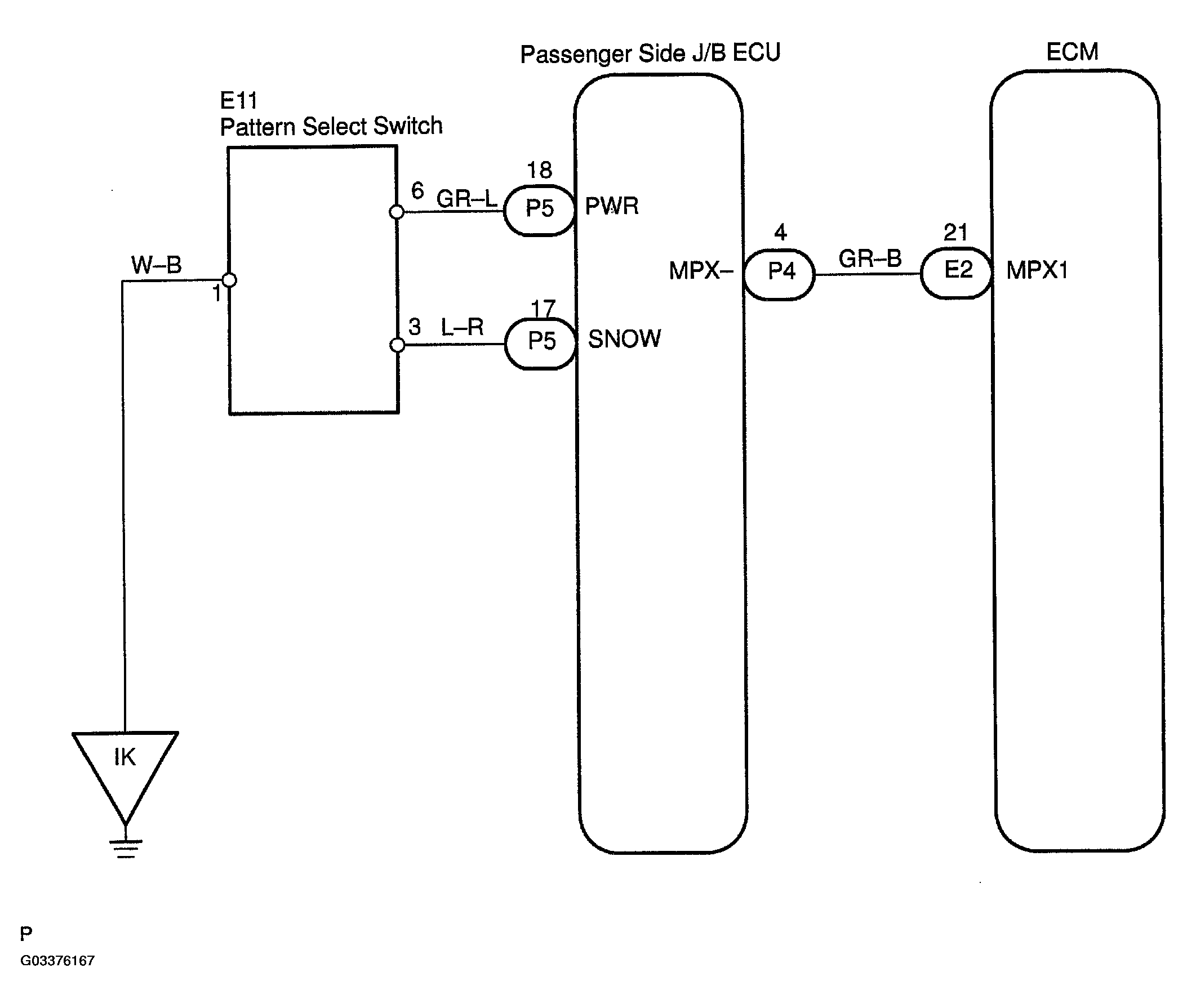

Fig 1: Wiring Diagram
G03376167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
