Automatic Transmission System: Operation

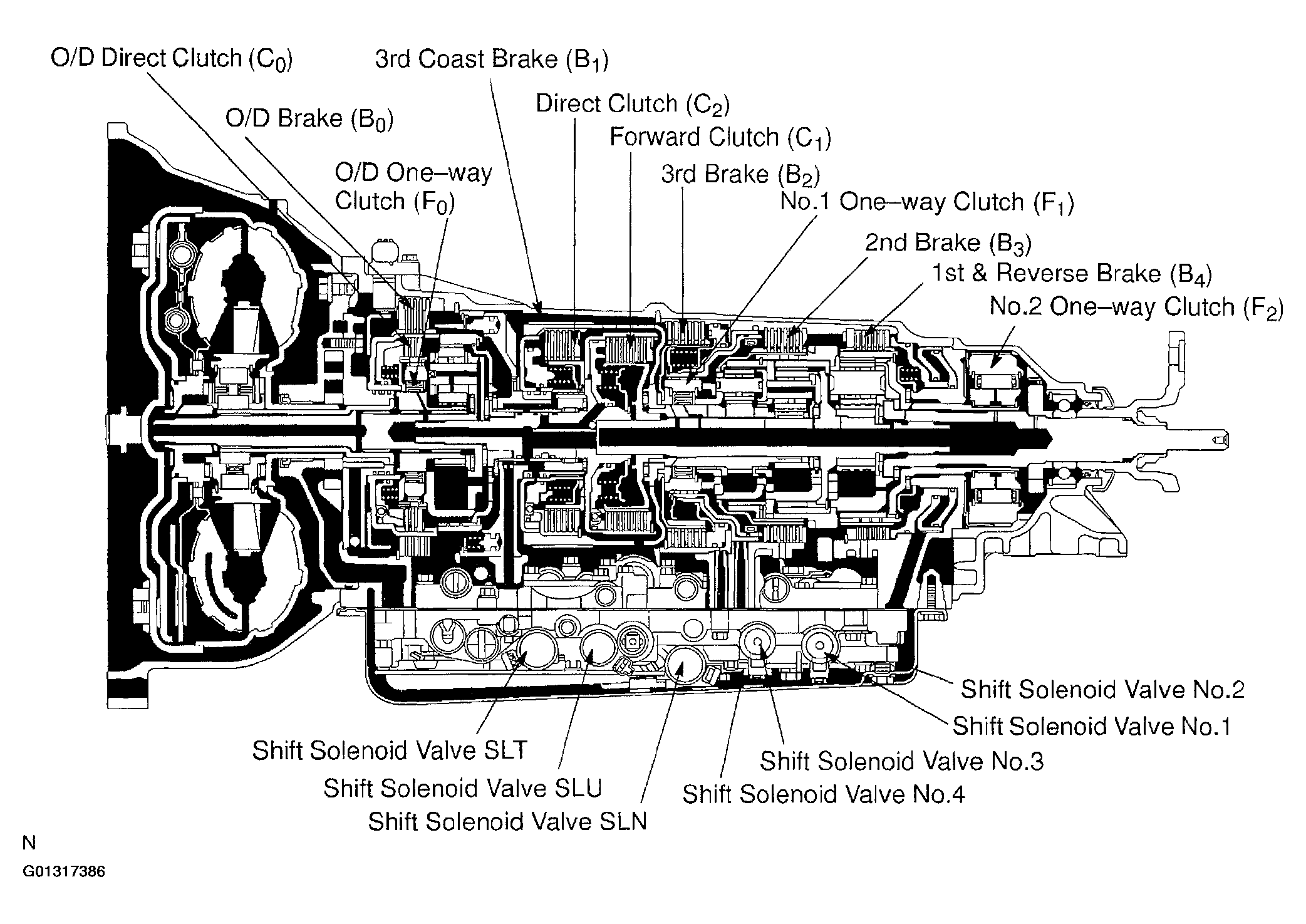

Fig 1: Identifying Operation
G01317386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

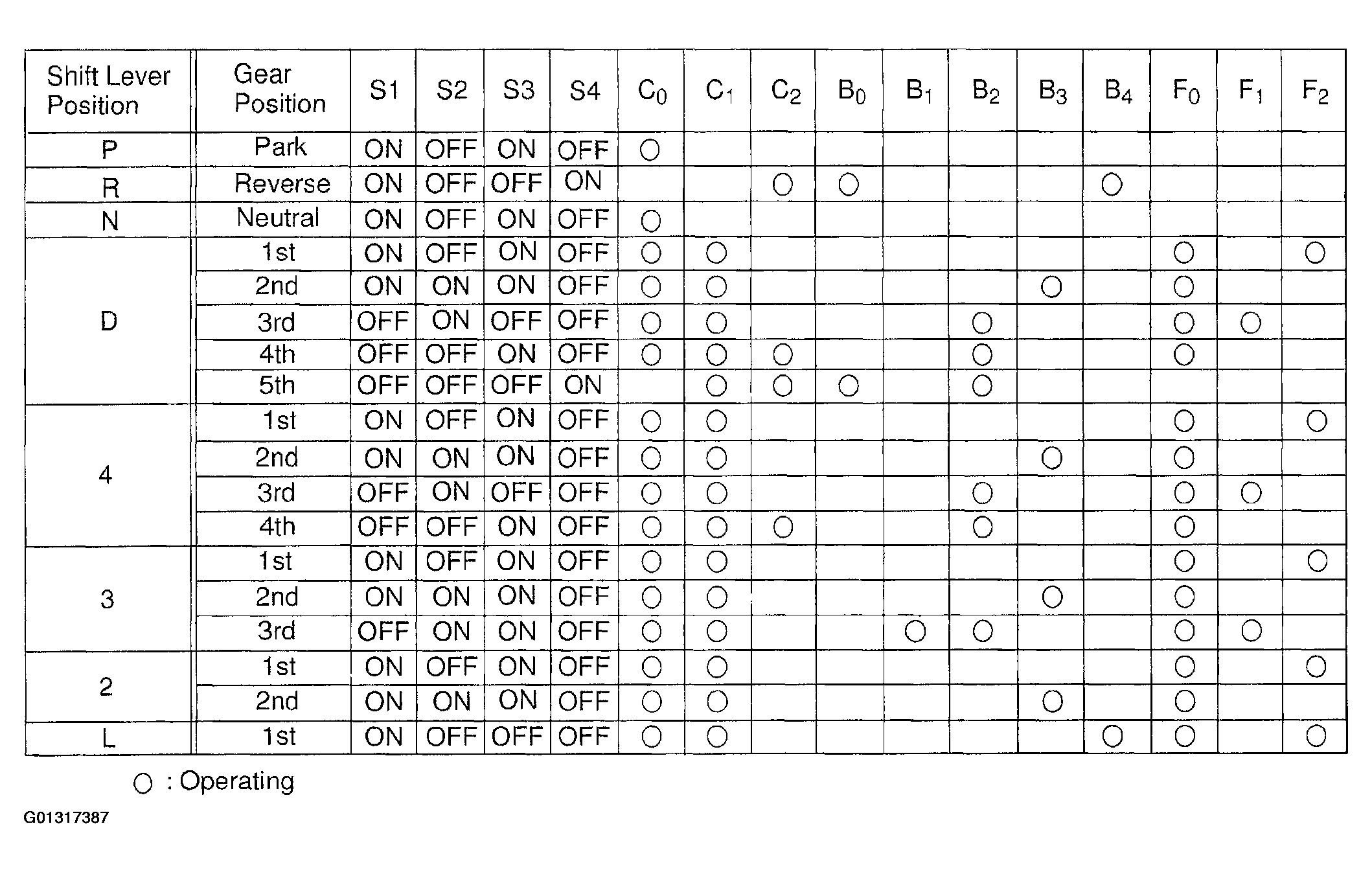

Fig 2: Shift Lever Position Chart
G01317387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
