Diagnosis & Repair (With Hand-Held Tester)

For wiring diagram, see Fig 1. For diagnosis and repair, see Fig 2 and Fig 3 .

Fig 1: Fuel Pump Control Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

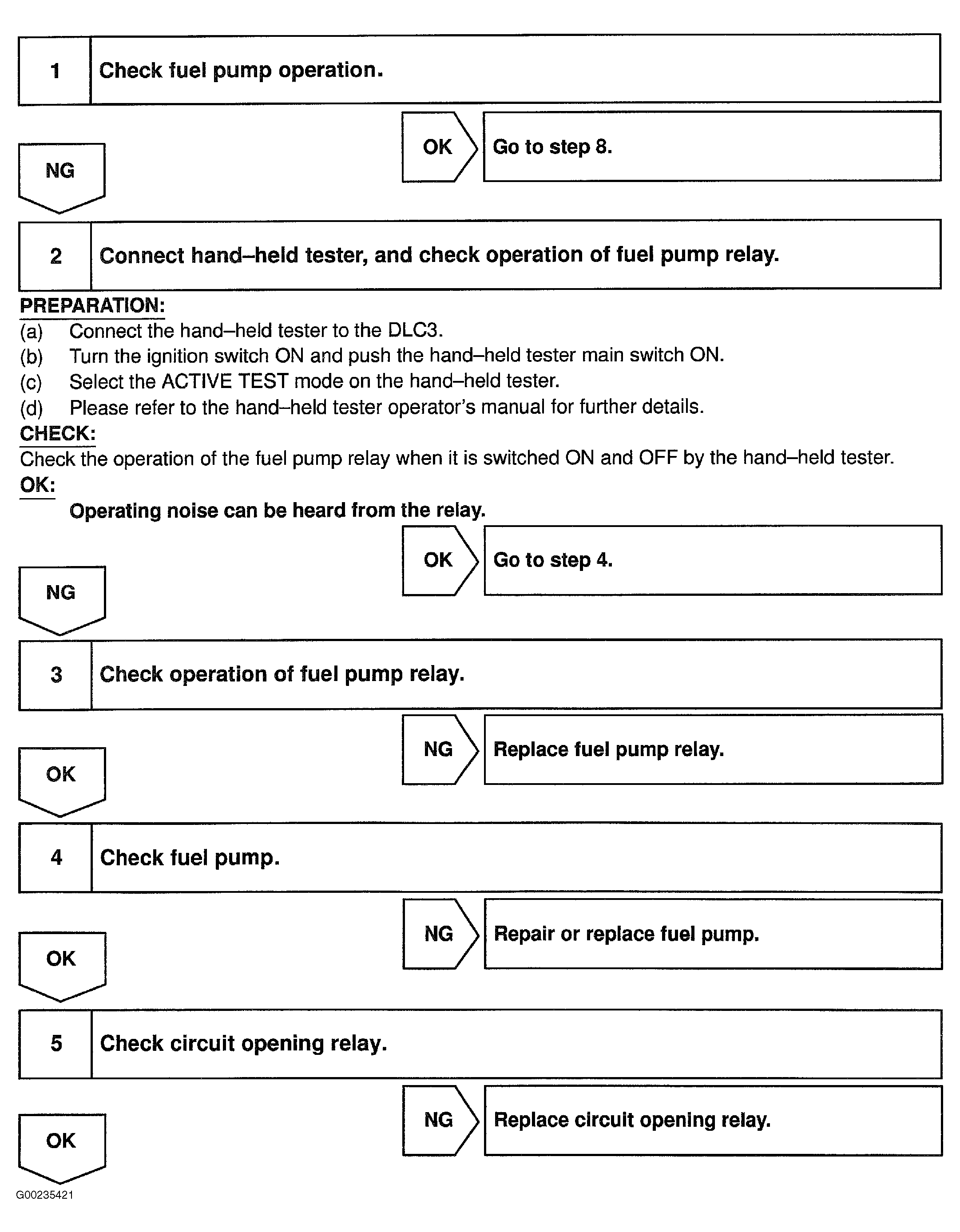

Fig 2: Diagnosis & Repair Of Fuel Pump Control Circuit (Step 1-5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

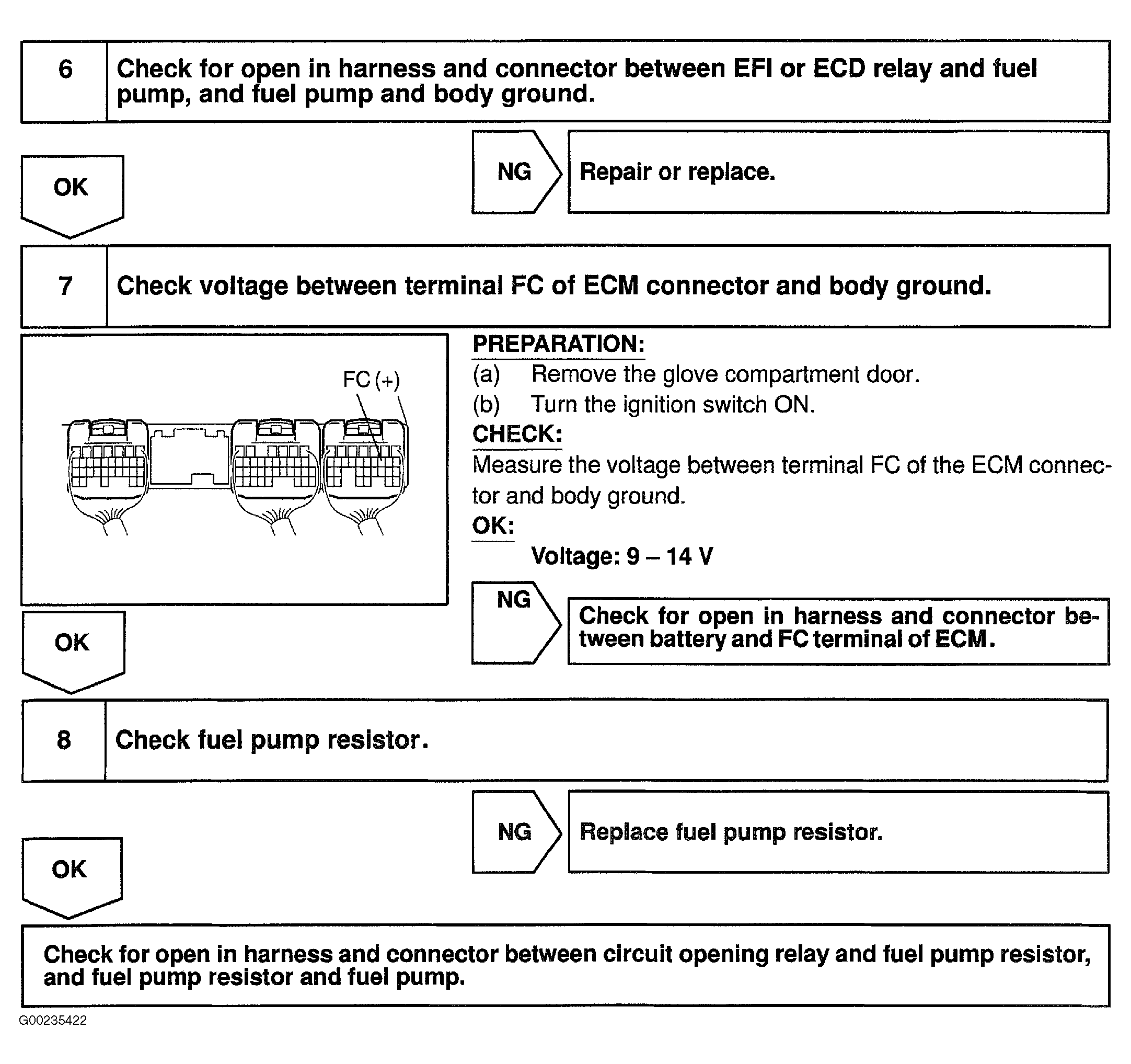

Fig 3: Diagnosis & Repair Of Fuel Pump Control Circuit (Step 6-8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
