Diagnosis & Repair (With OBD II Scan Tool)

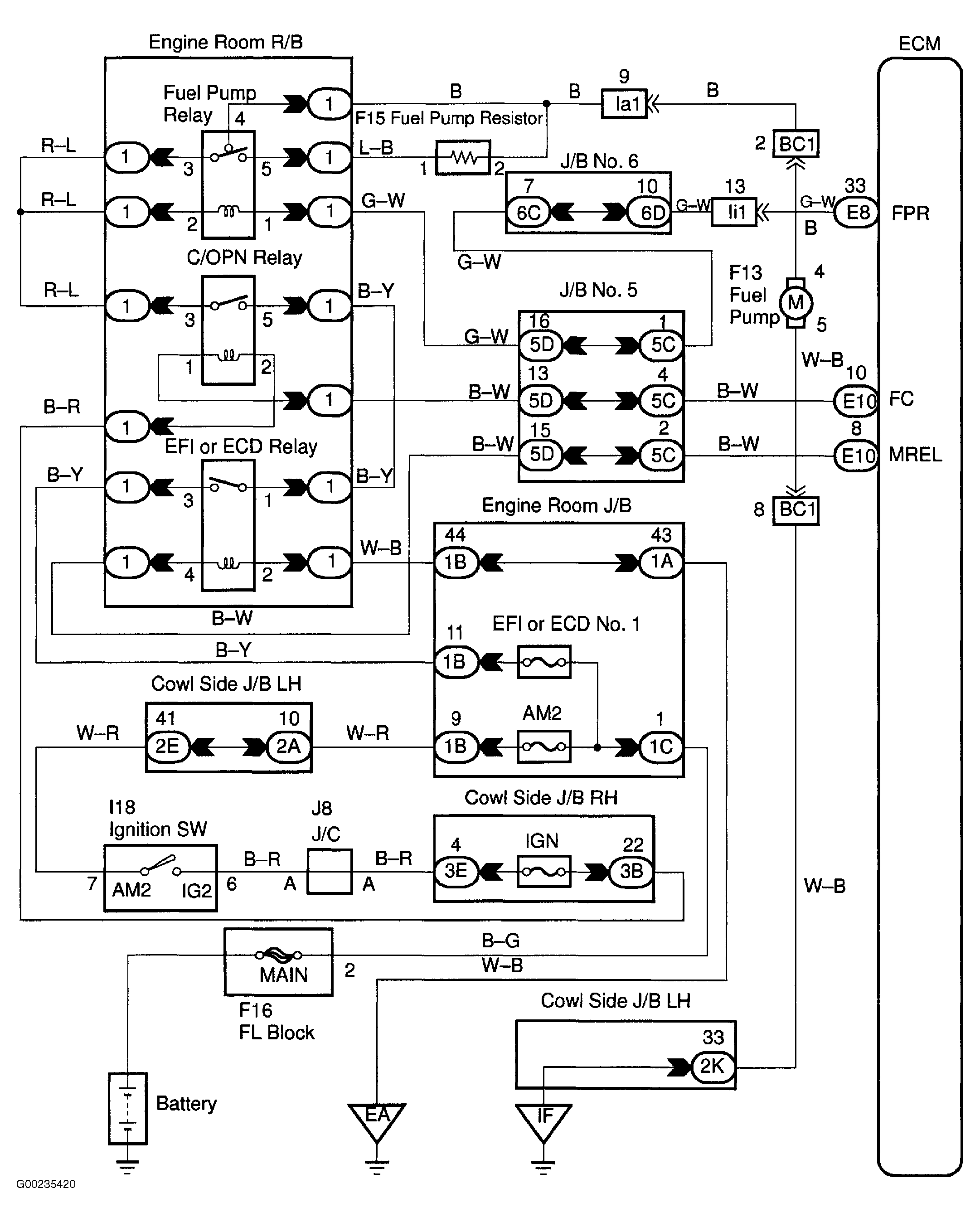

For wiring diagram, see Figure. For diagnosis and repair, see Fig 1 and Fig 2 .

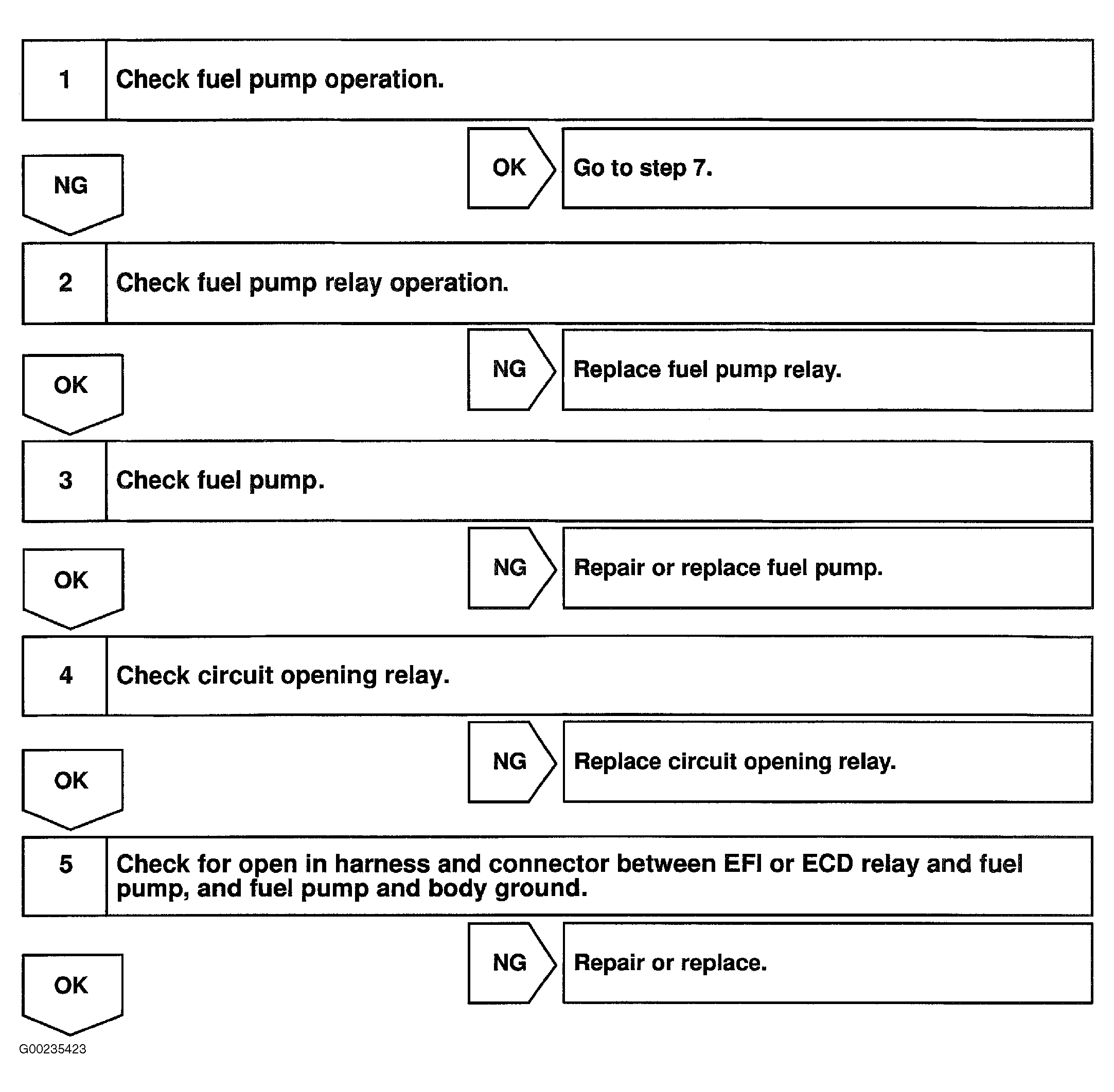

Fig 1: Diagnosis & Repair Of Fuel Pump Control Circuit (Step 1-5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

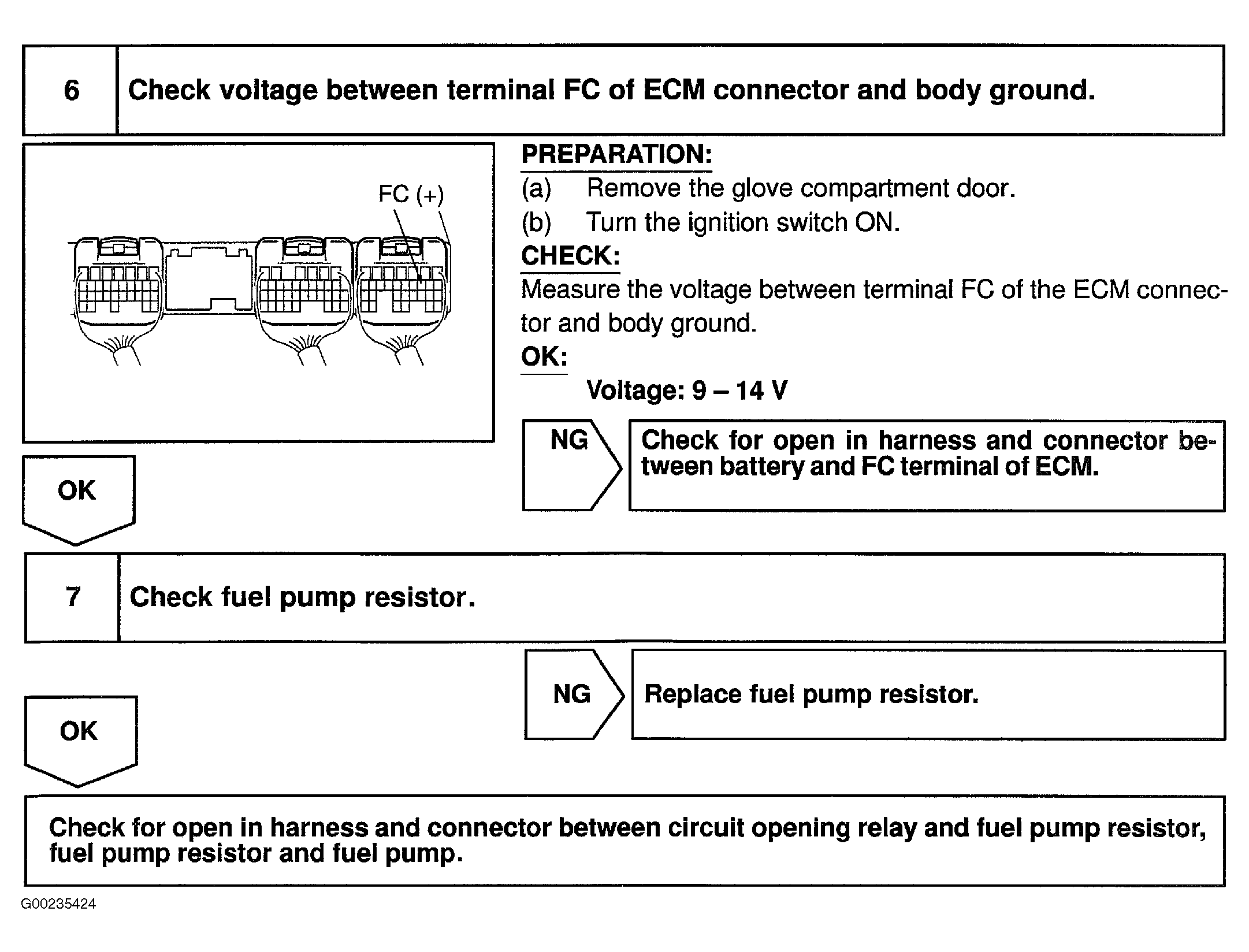

Fig 2: Diagnosis & Repair Of Fuel Pump Control Circuit (Step 6-7)
