Overhead Junction Block: Circuit

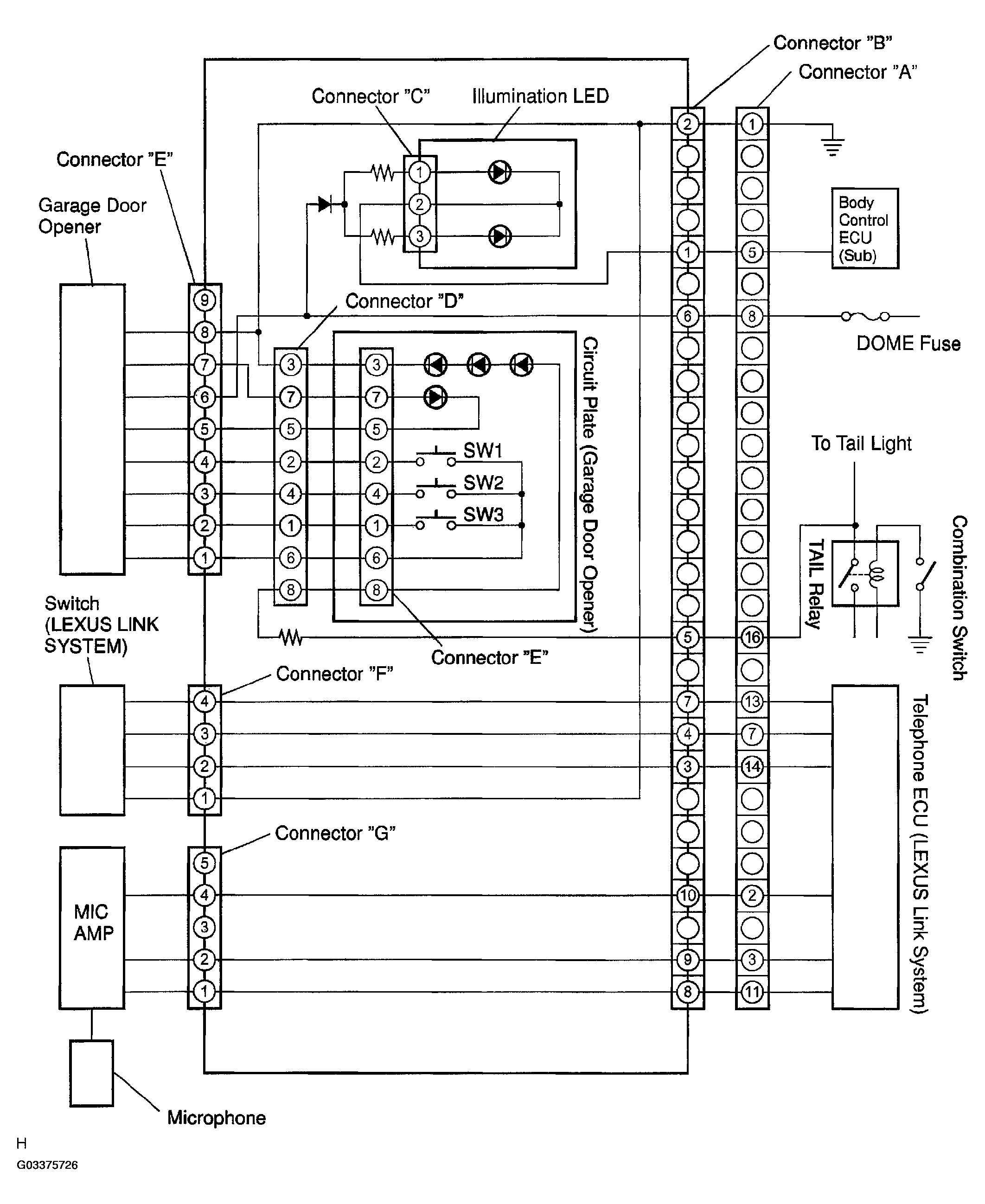

Fig 1: Circuit Diagram

G03375726

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
