Front Bumper: Components

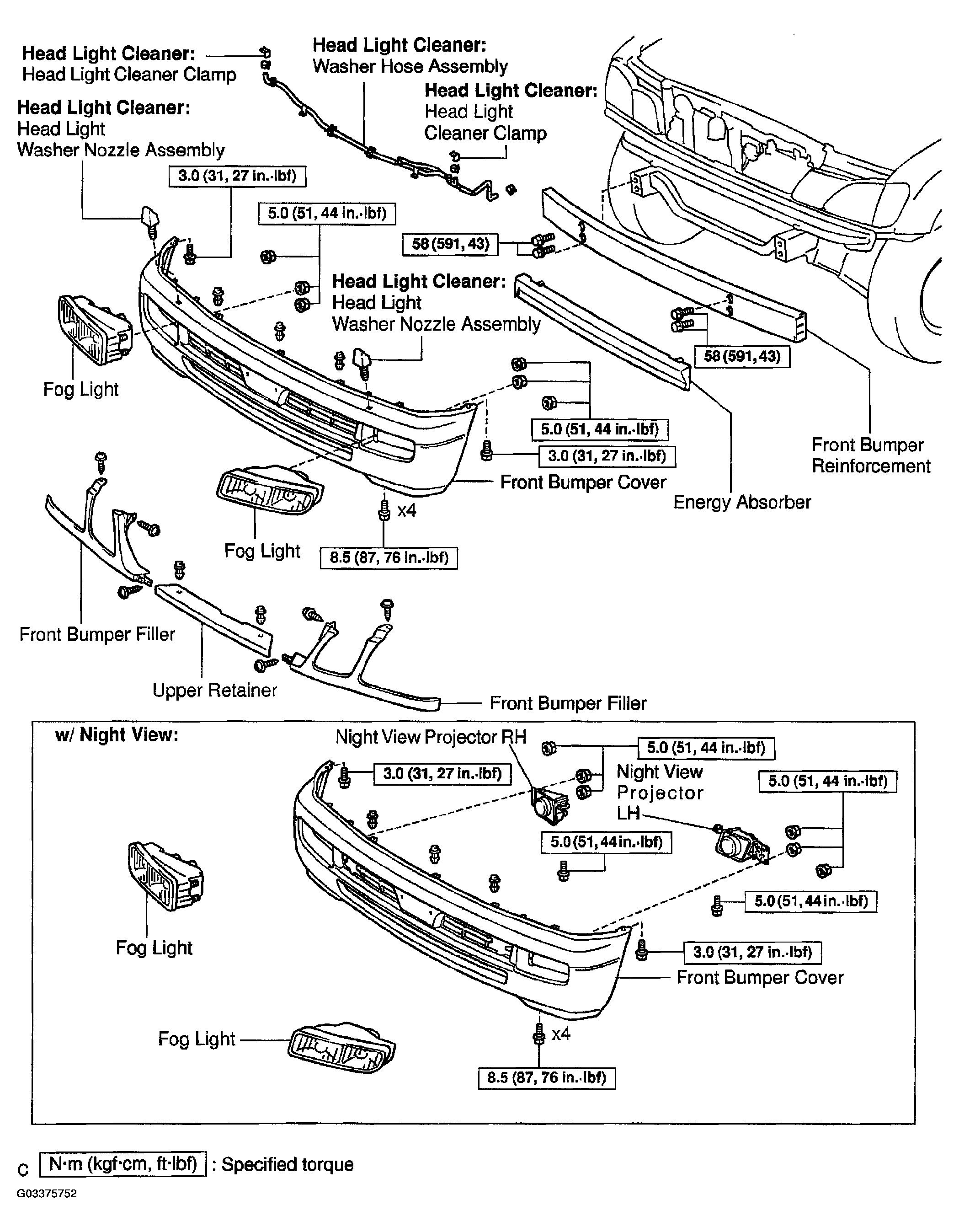

Fig 1: Identifying Front Bumper Components

G03375752

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
