Power Rear Quarter Window System
›
Location
Power Rear Quarter Window System: Location

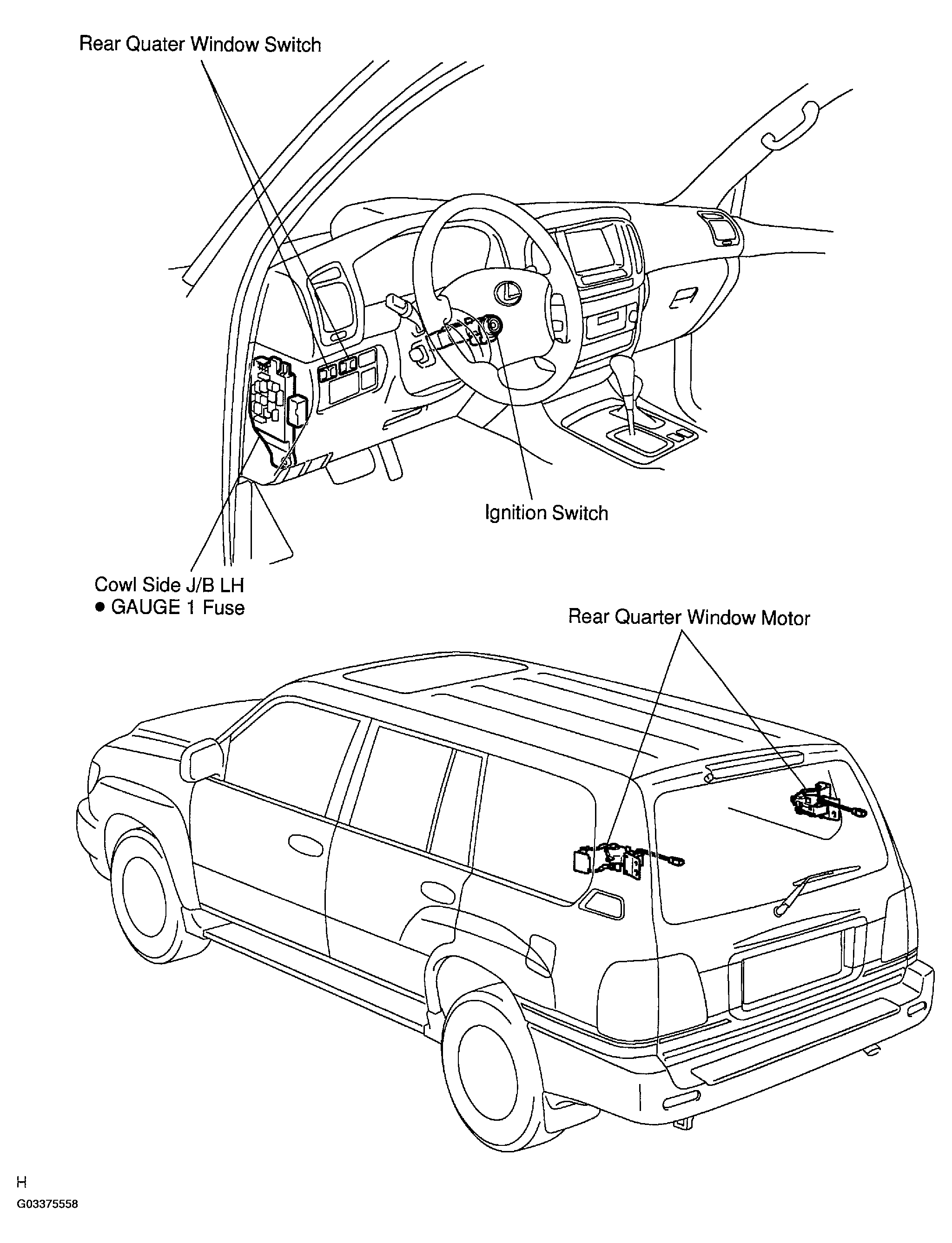

Fig 1: Identifying Component Location Of Power Rear Quarter Window System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
