Combination Meter: Circuit

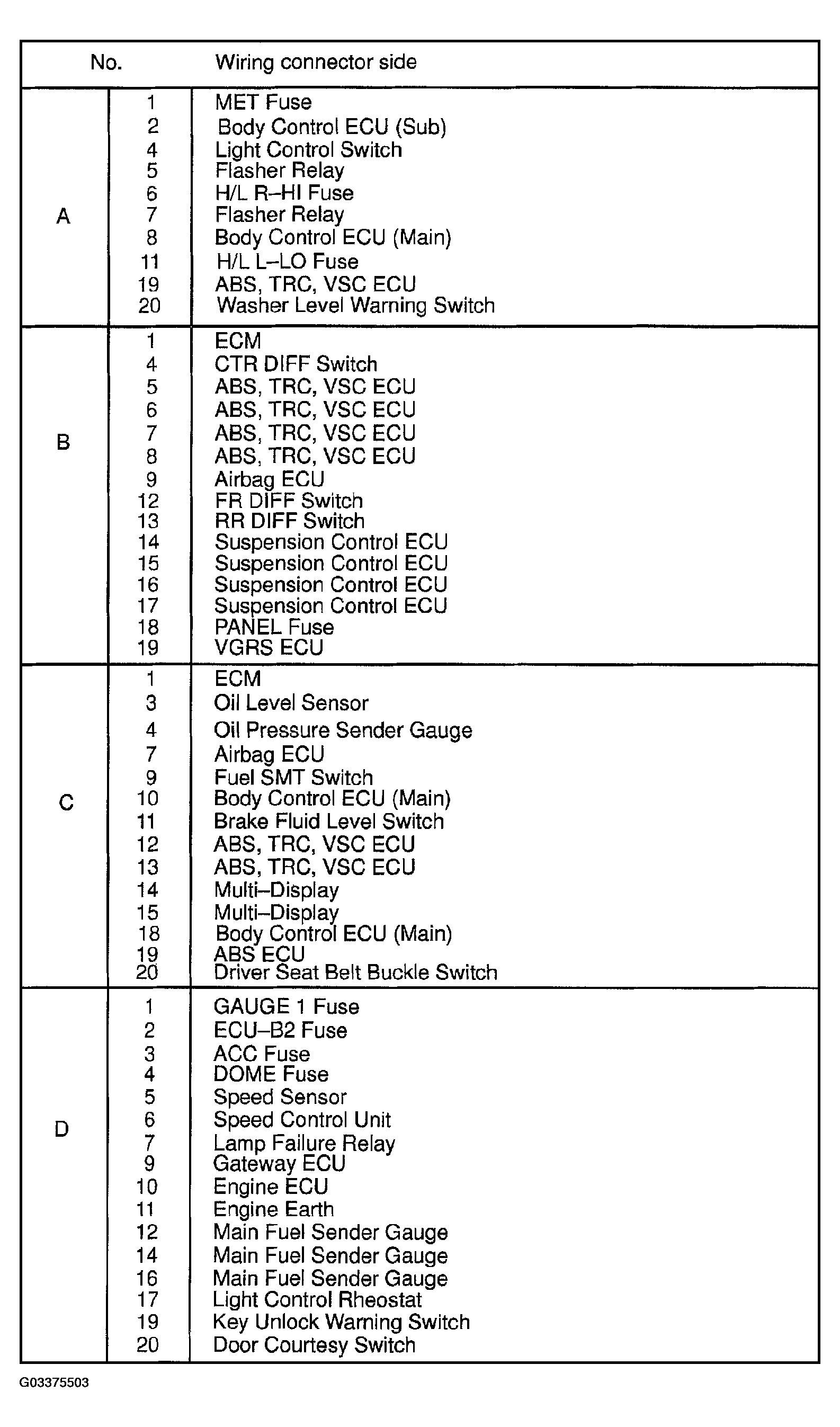

Fig 1: Identifying Circuit Diagram Combination Meter (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

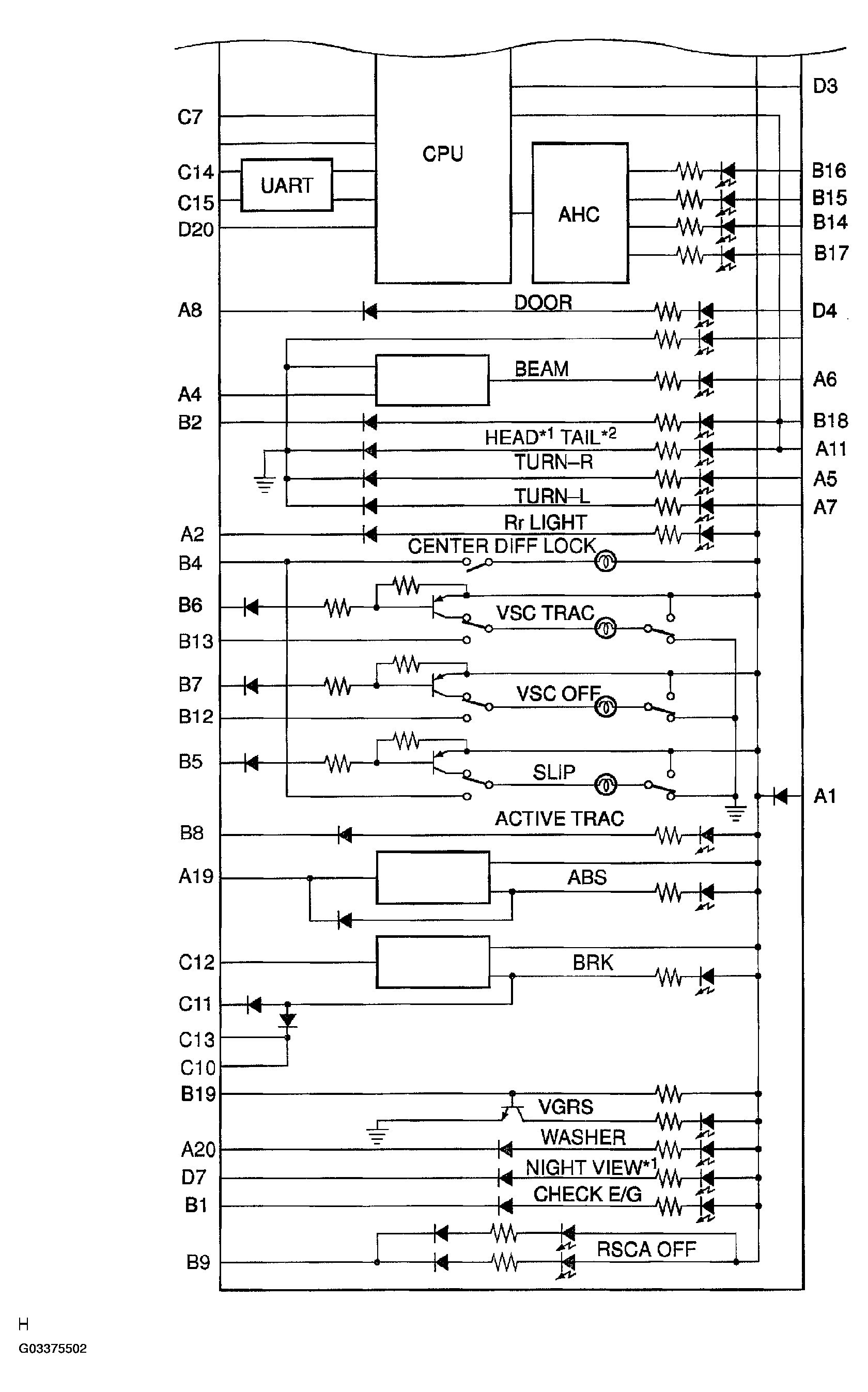

Fig 2: Identifying Circuit Diagram Combination Meter (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

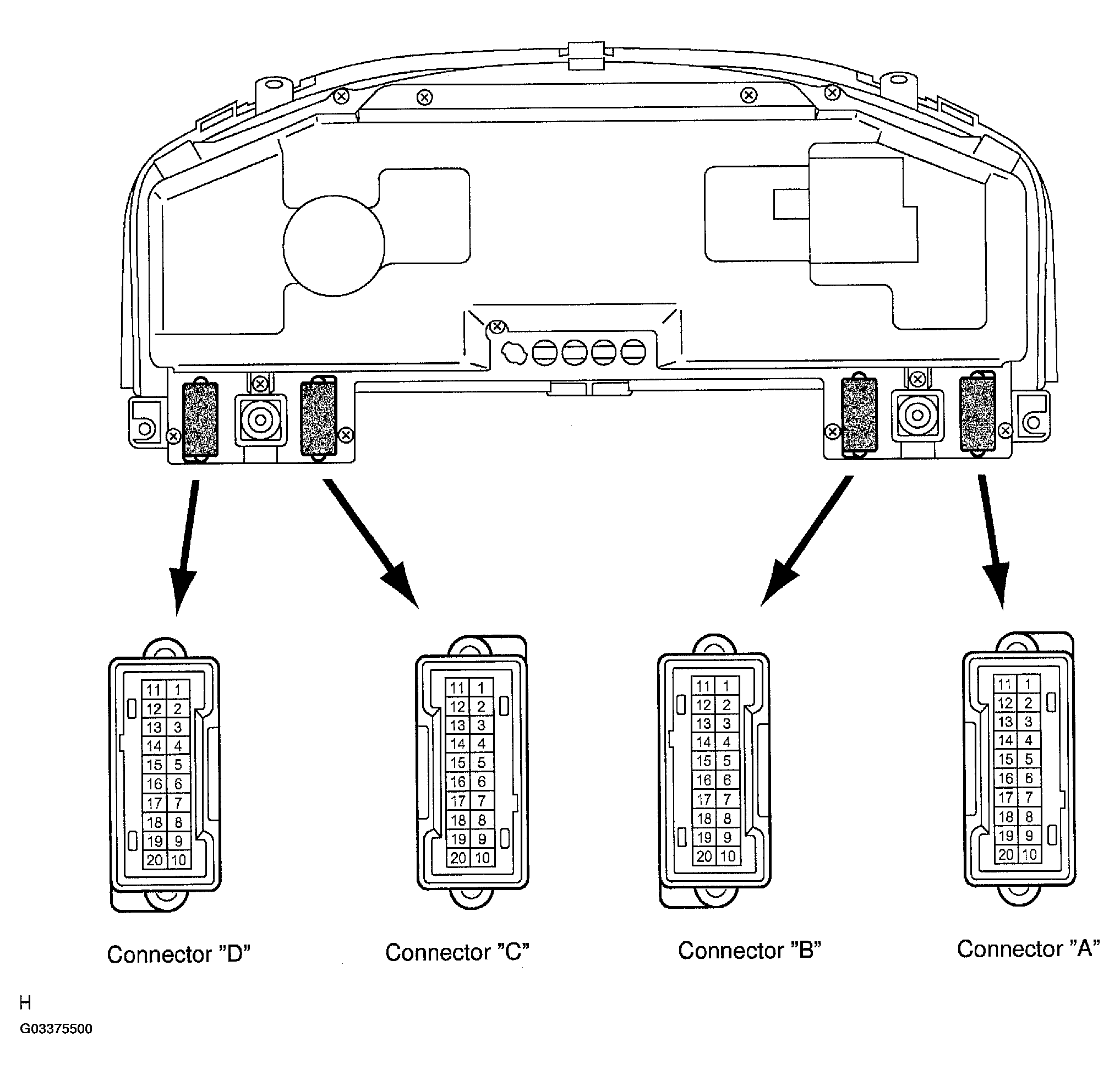

Fig 3: Identifying Circuit Diagram Combination Meter (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

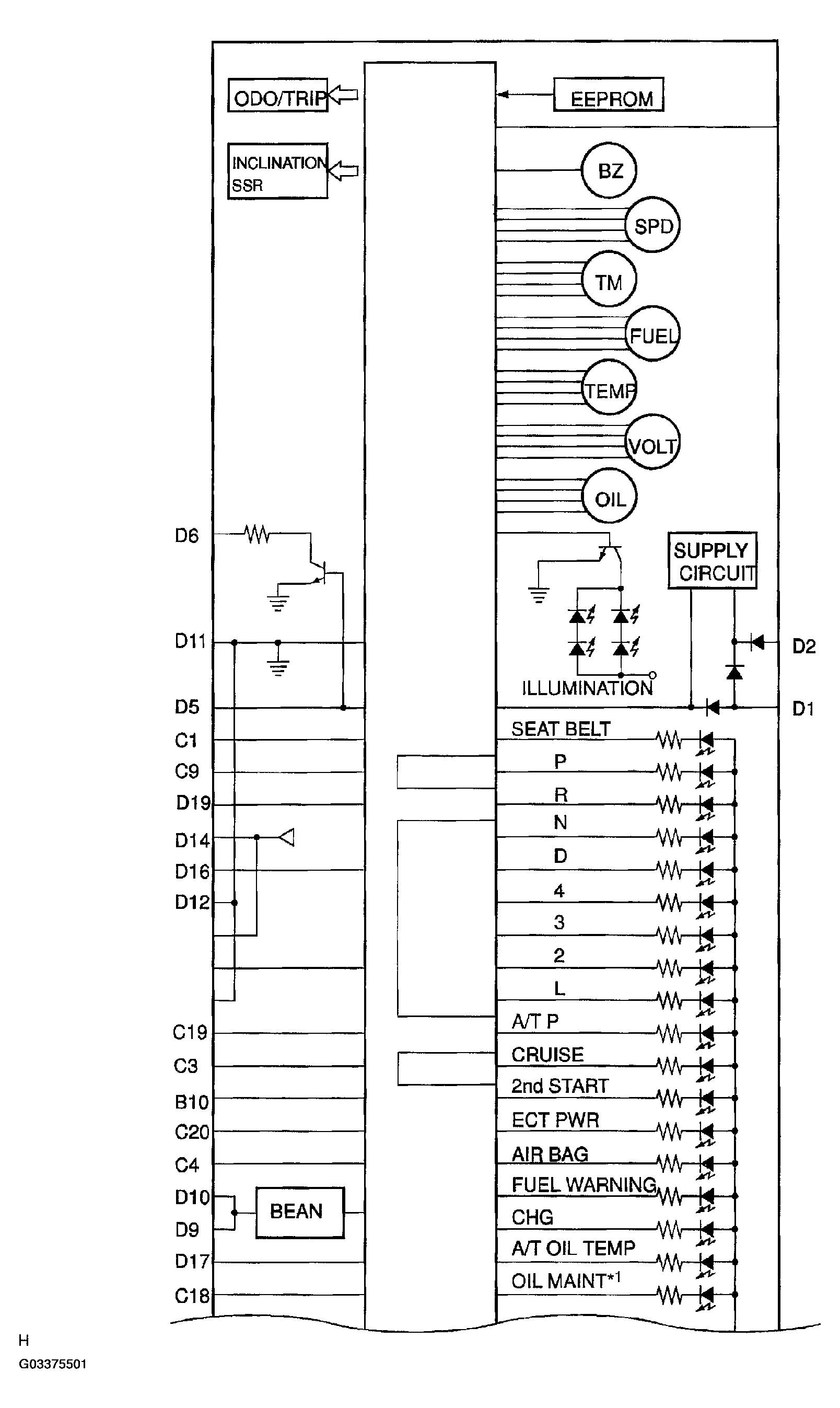

Fig 4: Identifying Circuit Diagram Combination Meter (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
