Diagnosis & Repair

For wiring diagram, see Fig 1. For diagnosis and repair, see Fig 2-Fig 4 .

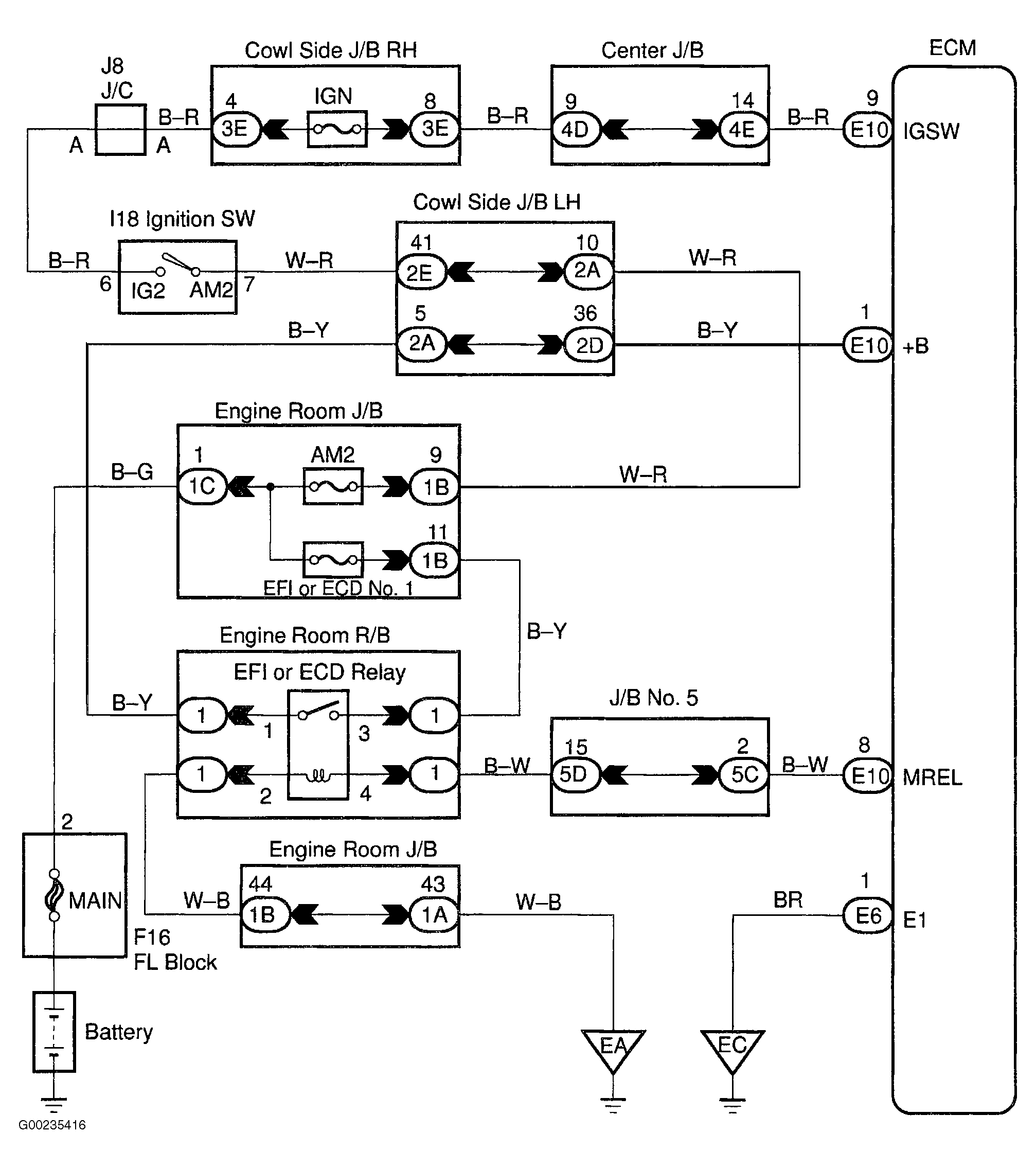

Fig 1: ECM Power Source Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

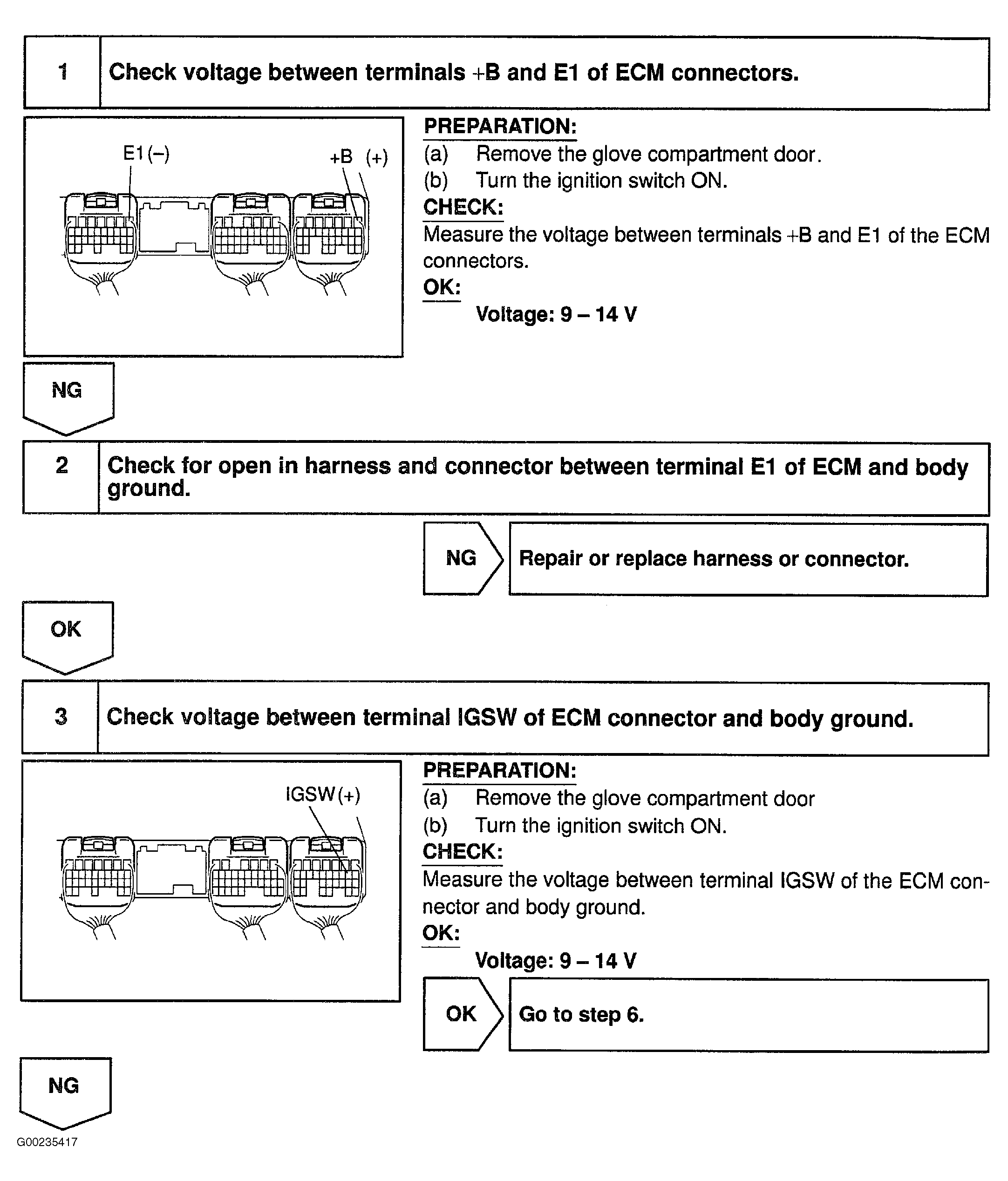

Fig 2: Diagnosis & Repair Of ECM Power Source Circuit (Step 1-3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

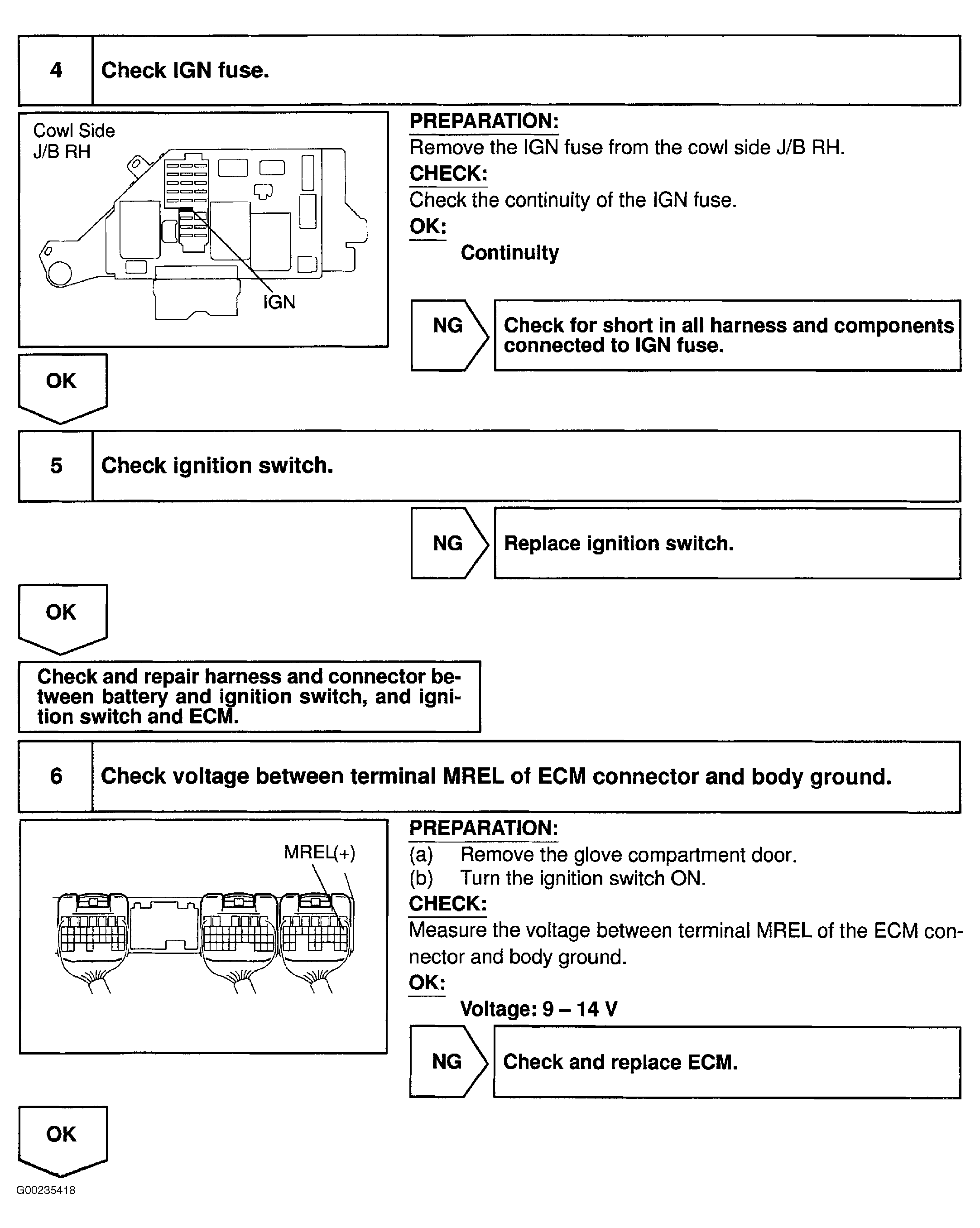

Fig 3: Diagnosis & Repair Of ECM Power Source Circuit (Step 4-6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

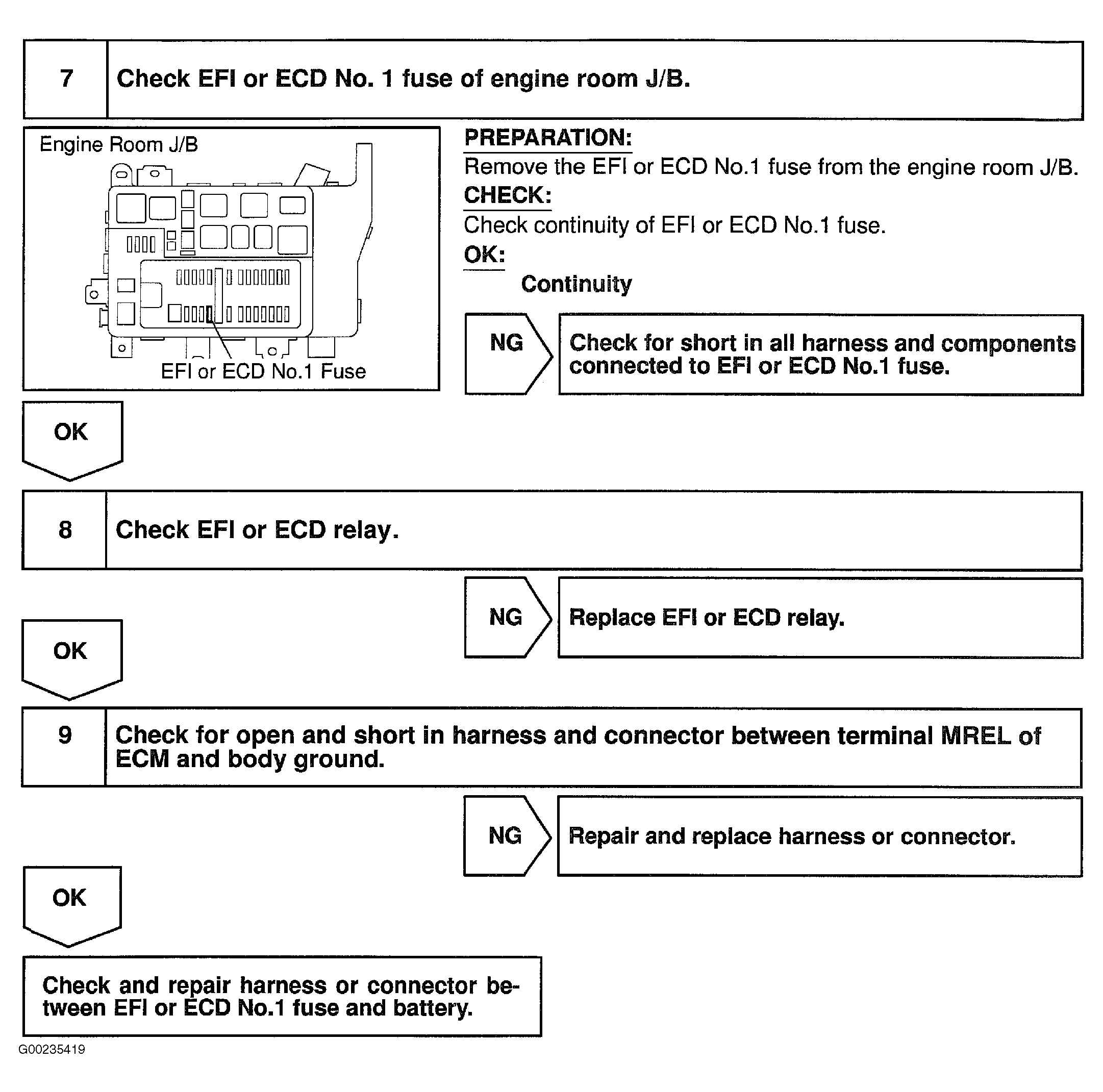

Fig 4: Diagnosis & Repair Of ECM Power Source Circuit (Step 7-9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
