Vehicle Lift And Support Locations

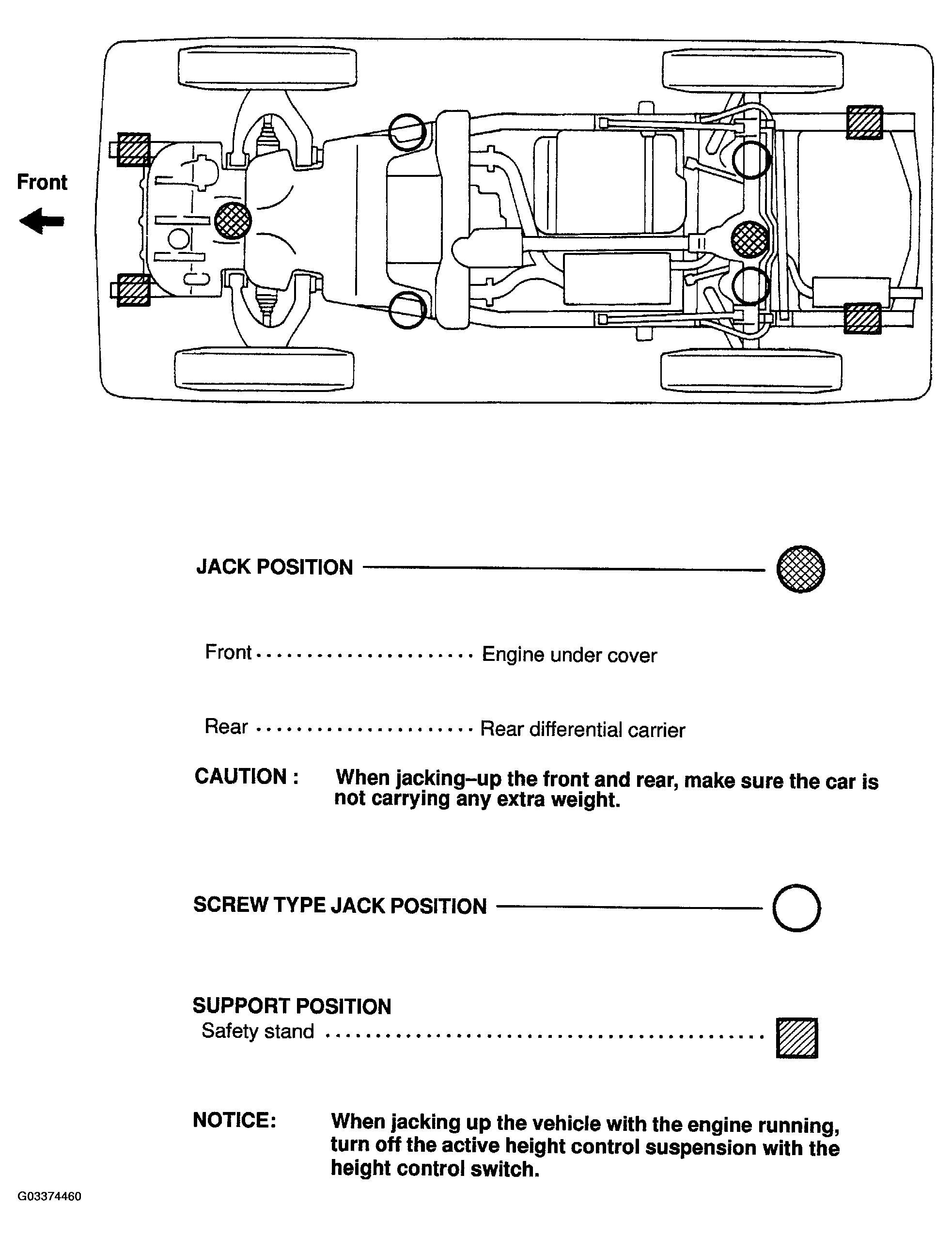

Fig 1: Locating Vehicle Lift And Support (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

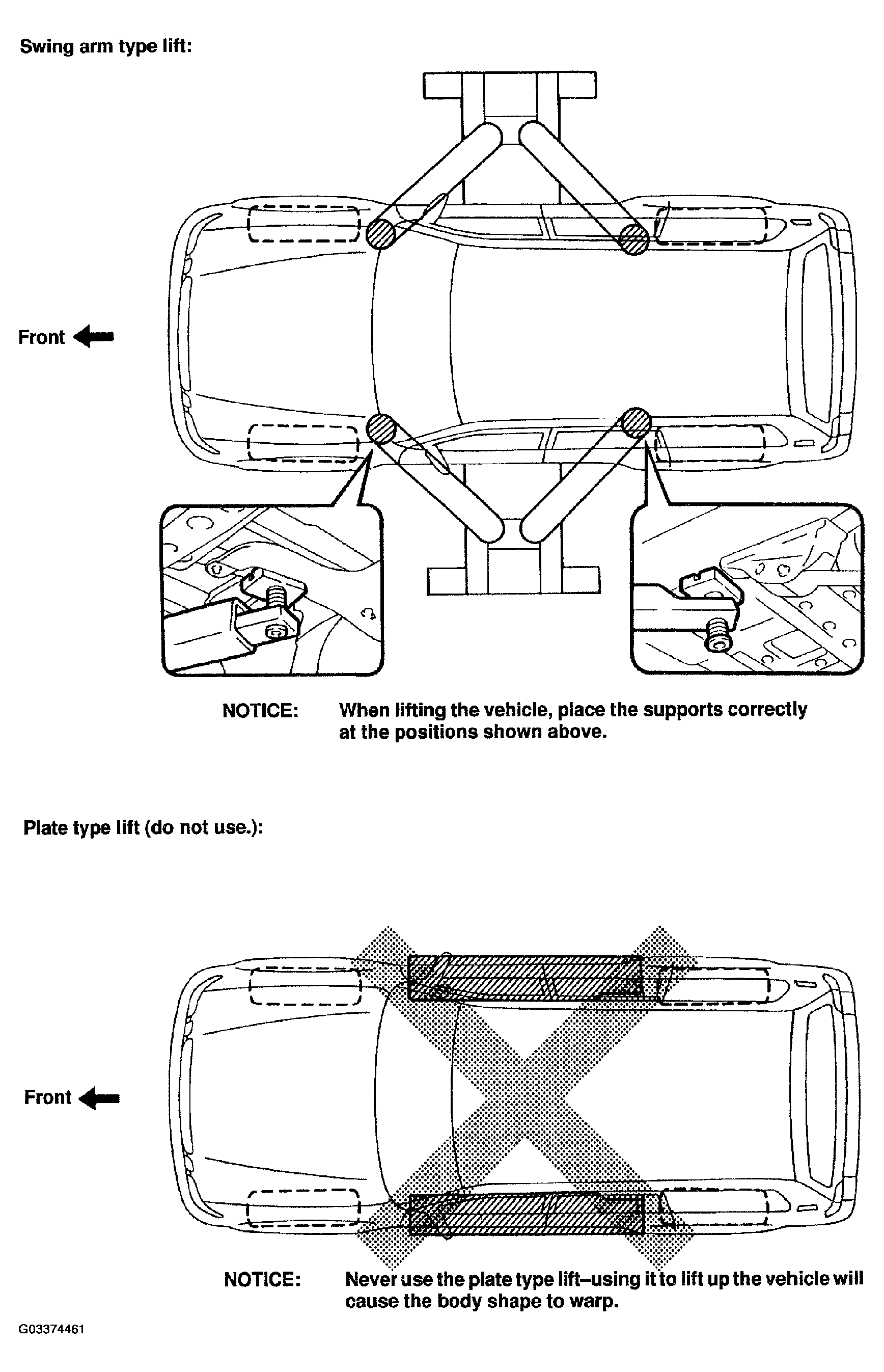

Fig 2: Locating Vehicle Lift And Support (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
