Control Valve Assembly: Components

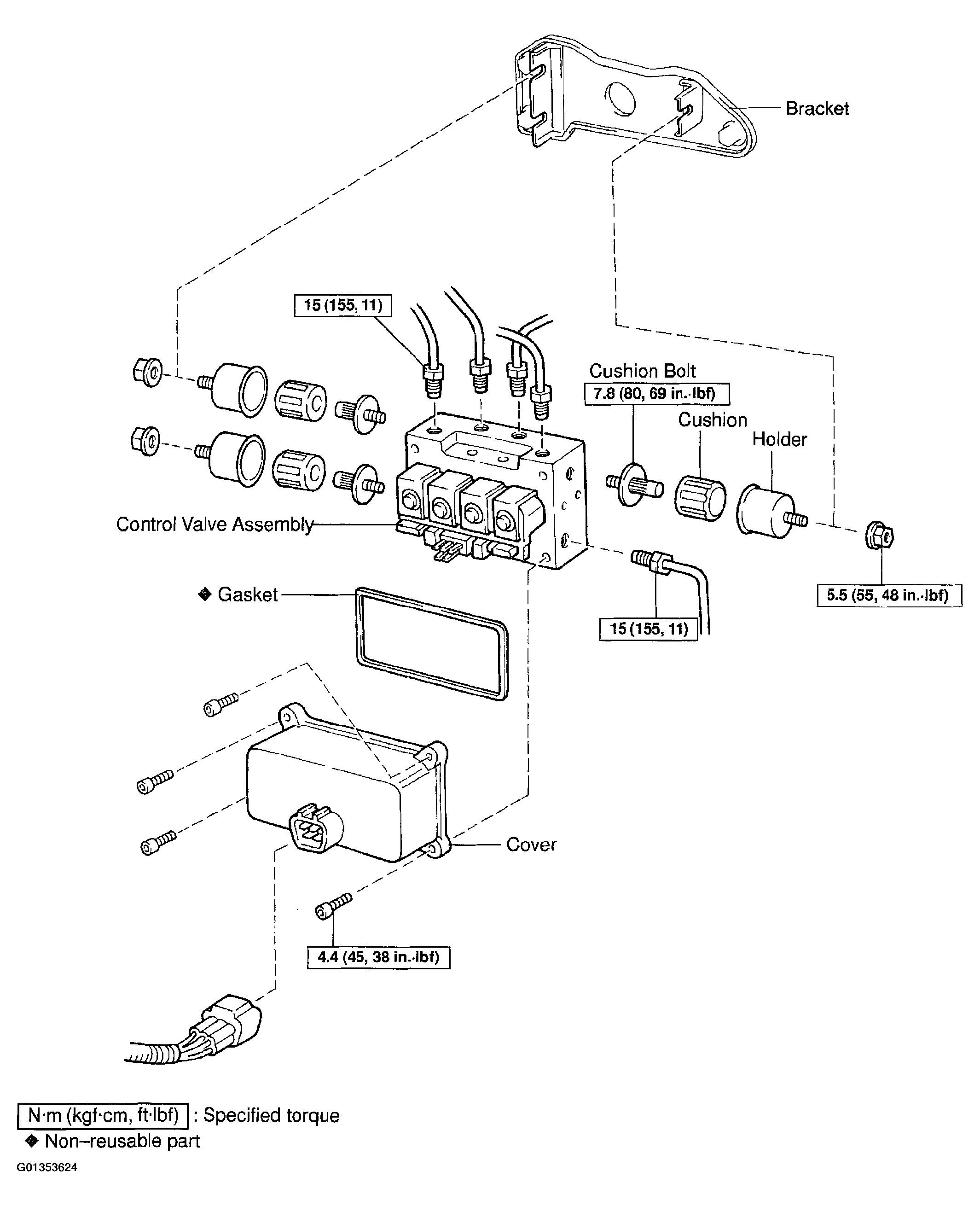

Fig 1: Exploded View Of Control Valve Assembly Components

G01353624

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
