Diagnostic Trouble Code Chart

If a DTC is displayed during the DTC check, check the circuit listed for that code in the table below and proceed to the page given.

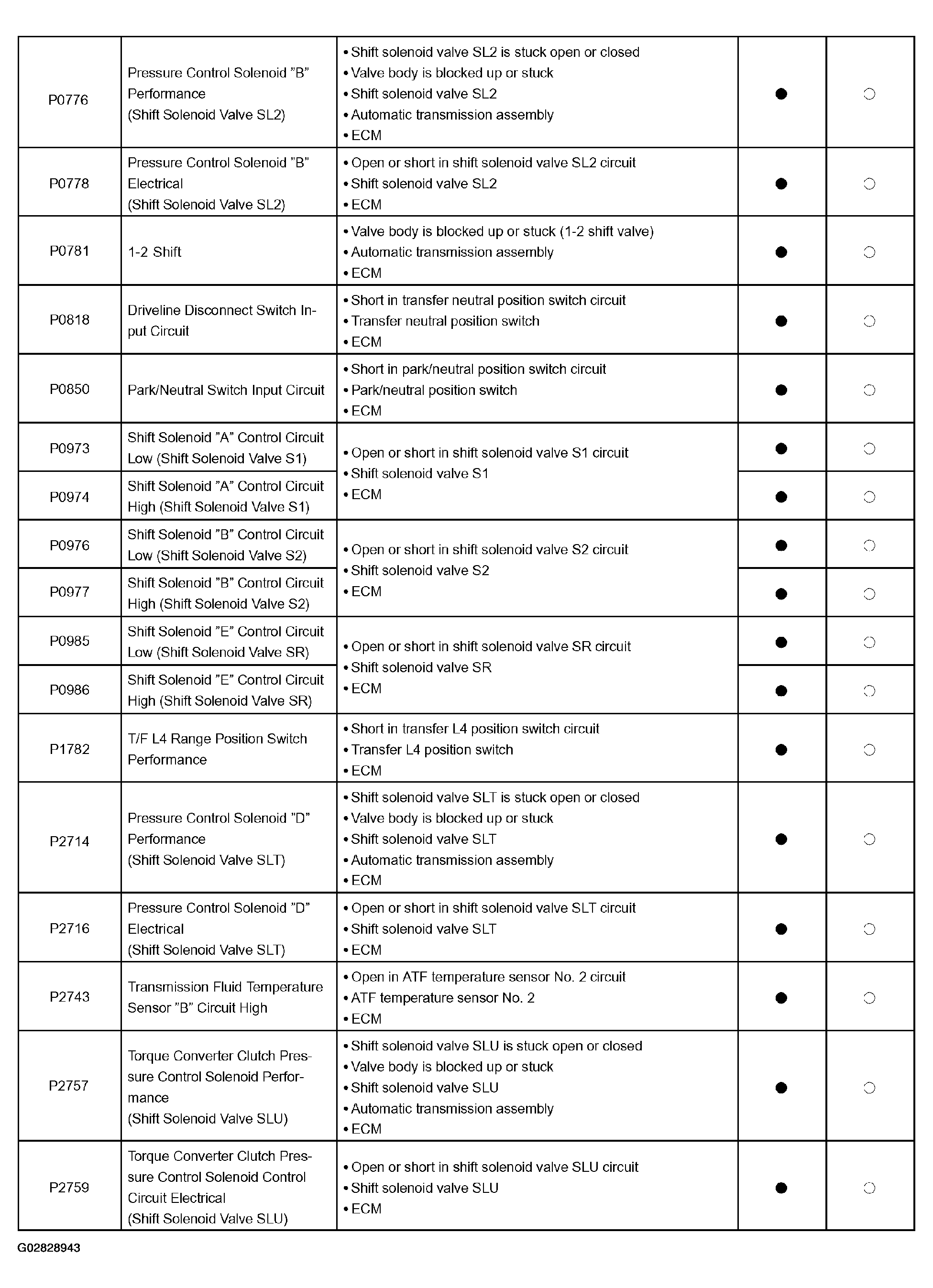

Fig 1: Diagnostic Trouble Code Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Diagnostic Trouble Code Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
