Automatic Transmission Unit: Components

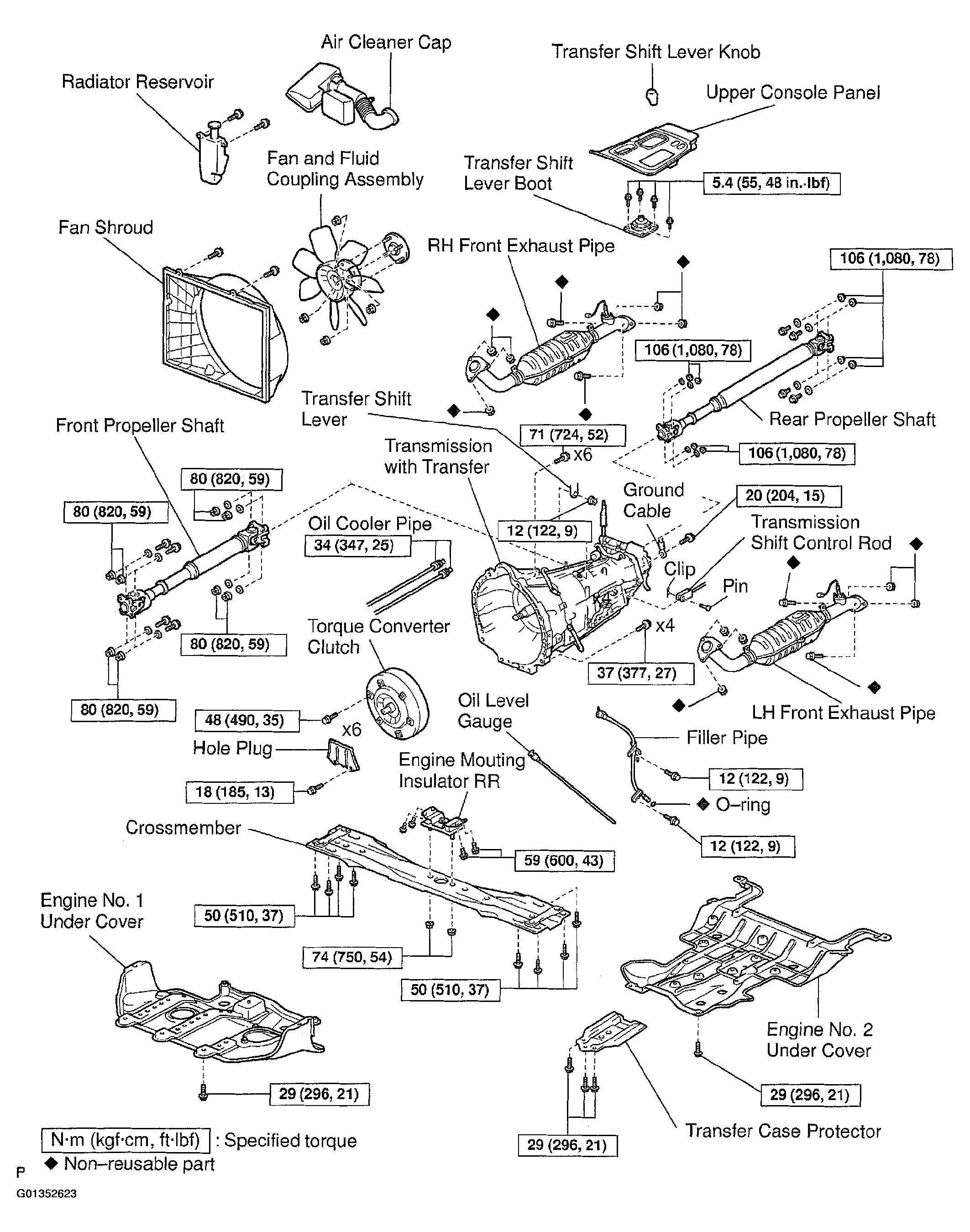

Fig 1: Automatic Transmission Unit Components With Torque Specifications
G01352623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
