Automatic Transmission Unit: Installation

Using Calipers And A Straight Edge, Measure The Distance From The Installed Surface Of The Transmission Housing To The Installed Surface Of The Torque Converter Clutch.

Correct Distance: More Than 17.1 Mm (0.673 In.)

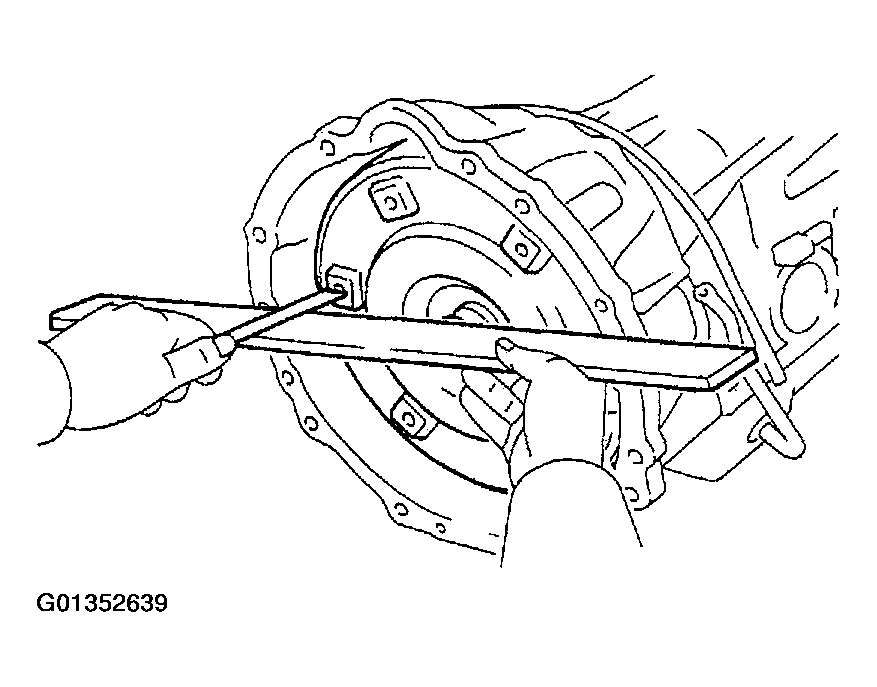

Fig 1: Measuring Torque Converter Clutch Installed Depth

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Installation Is In The Reverse Order Of Removal (See  removal   ).

Hint:

• Transmission Control Rod And Park/Neutral Position Switch (See Pre-Check )
• Atf Level (See Pre-Check )
• Conduct The Road Test Of The Vehicle (See Pre-Check )
