Air Cooled Oil Cooler: Components

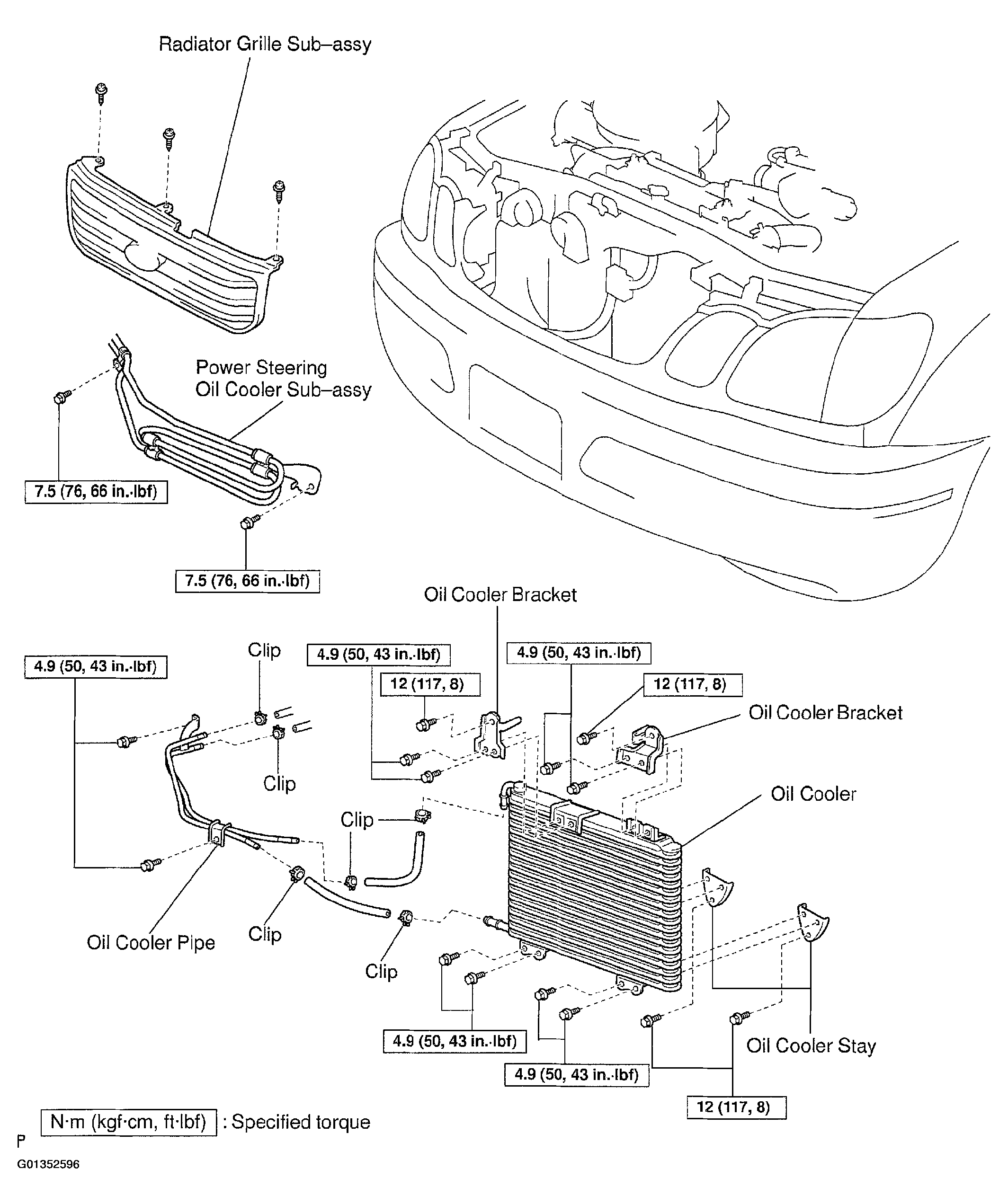

Fig 1: Identifying Air Cooled Oil Cooler Components

G01352596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
