Center Differential: Components

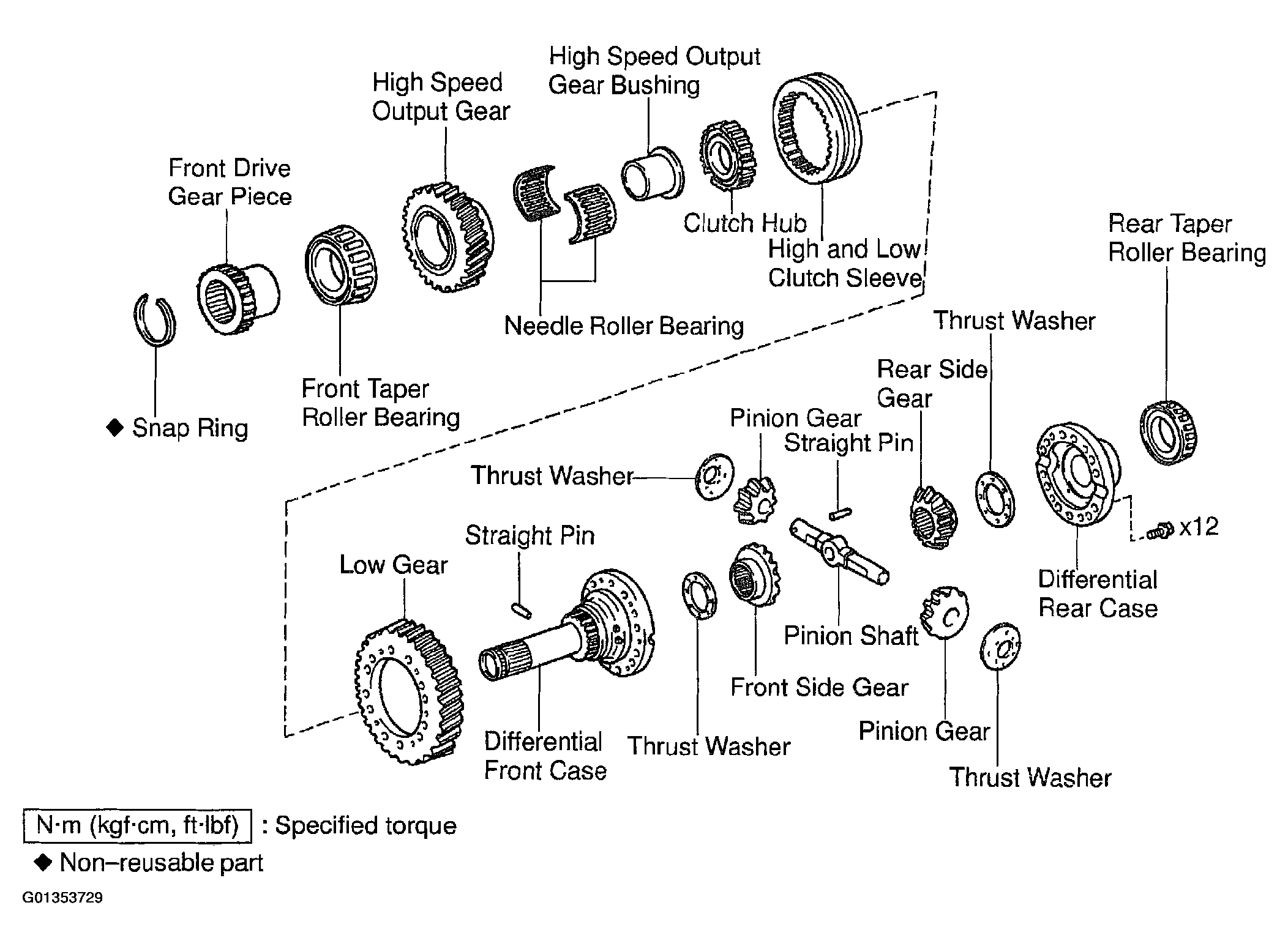

Fig 1: Identifying Center Differential Components

G01353729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
