Front Extension Housing: Components

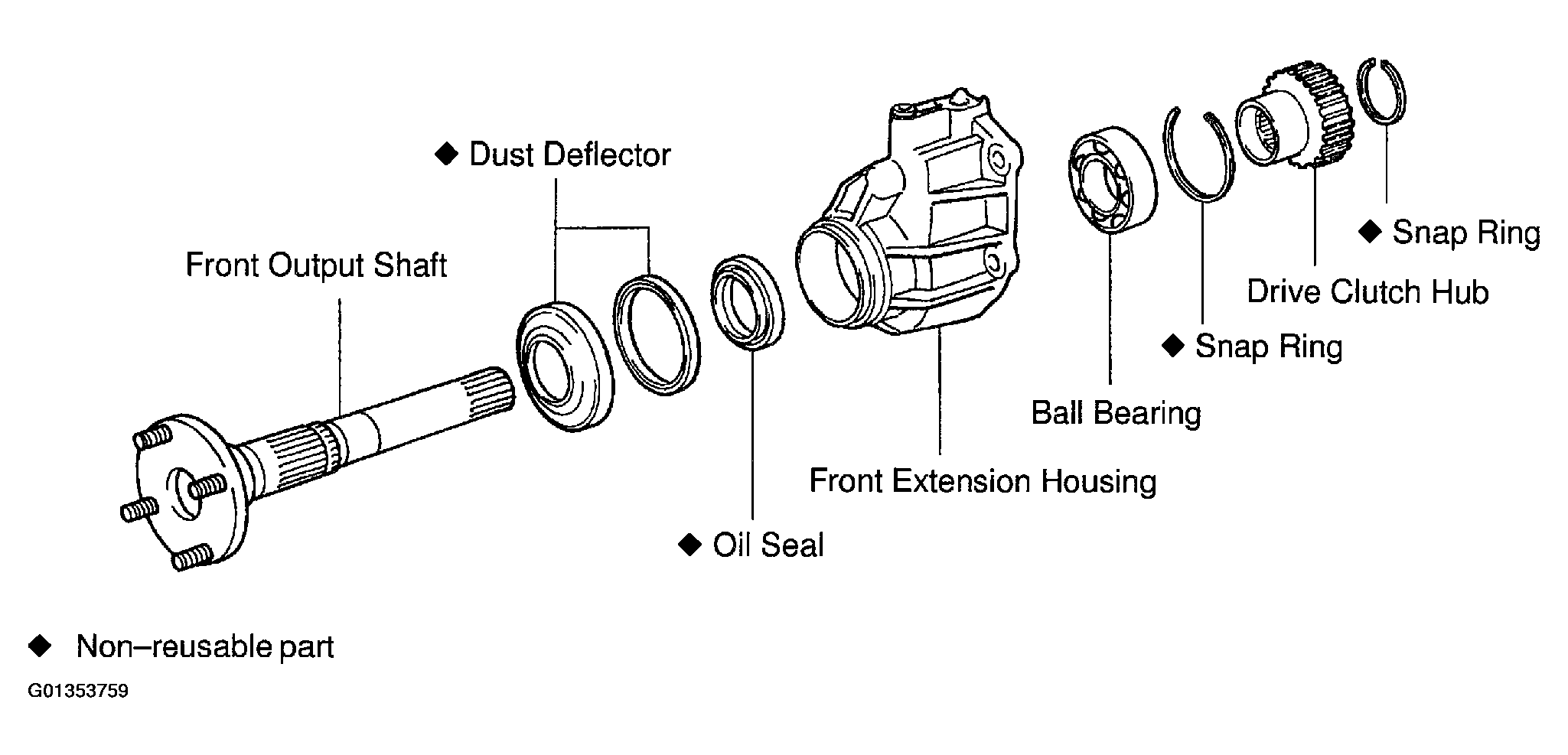

Fig 1: Identifying Front Extension Housing Components

G01353759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
