Transfer Assembly: Components

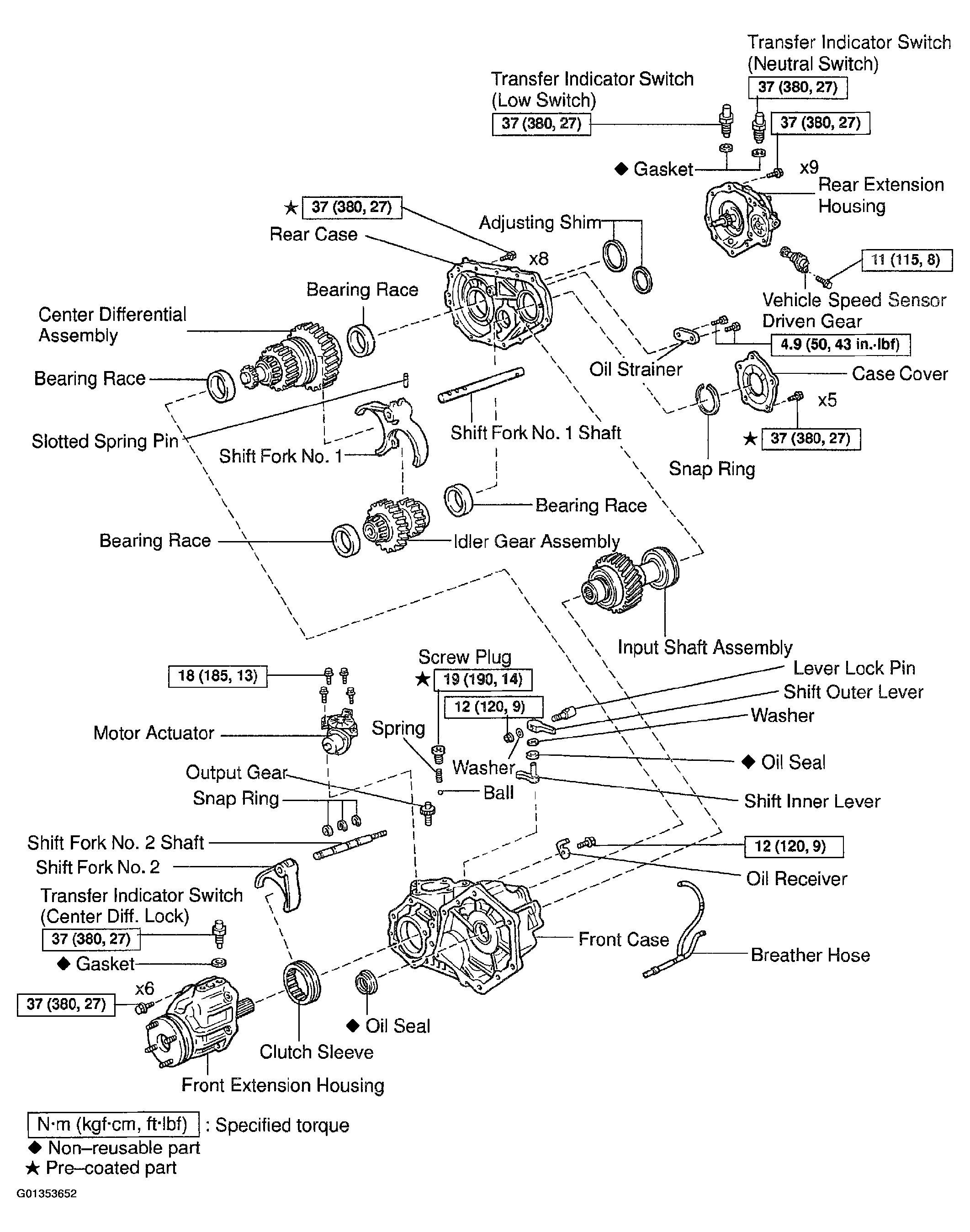

Fig 1: Identifying Transfer Assembly Components

G01353652

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
